Fiber-Optic CablesNF Series Retro-reflective type
Stable detection of transparent workpieces
- Built-in polarizing filter type and narrow view type available
- Reflector/Reflective sheet and mounting bracket included DG3030, P31, P46: End of sales by August 2025 NF-RG01 and NF-TP01: End of sales by July 2020 NF-DF06, NF-DH09, NF-RB01, NF-TB08, NF-TH17, and NF-TY04: End of sales by September 2015
Retro-reflective type
*Download the PDF to check the sensing distance and dimensions.
*Download the CAD data to confirm the tolerances.
| Type | Model | Shape of fiber head [mm] |
Optical axis direction |
Fiber length |
Min. bending radius [mm] |
Ambient temperature [℃] |
|---|---|---|---|---|---|---|
| Flat Built-in polarizing filter |

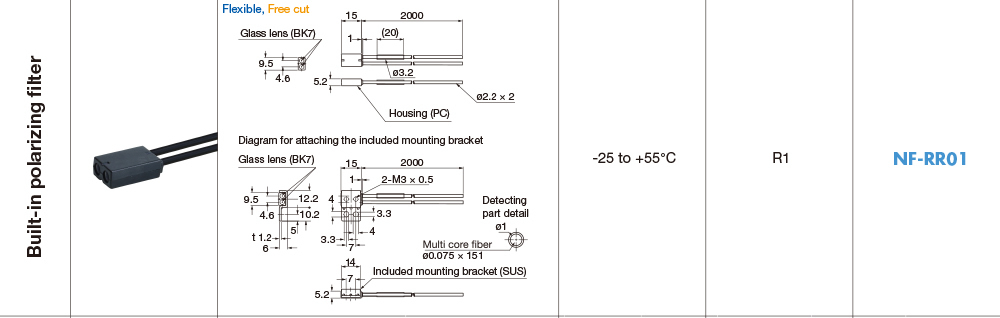

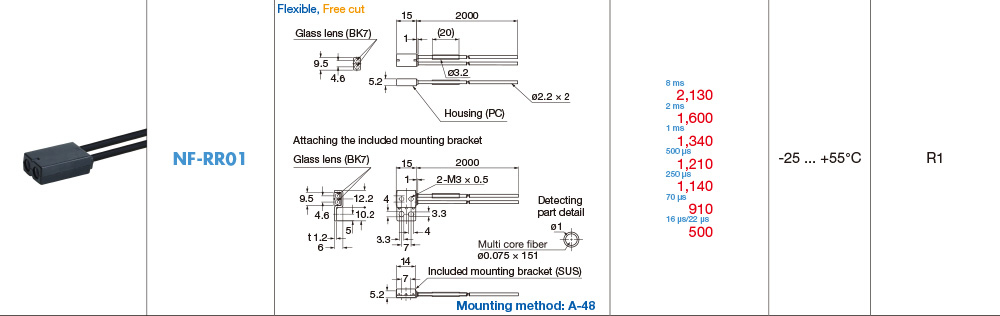

NF-RR01 |  |
Straight view | 2 m Free-cut |
R1 | -25 ... +55 |
| Flat Narrow view |

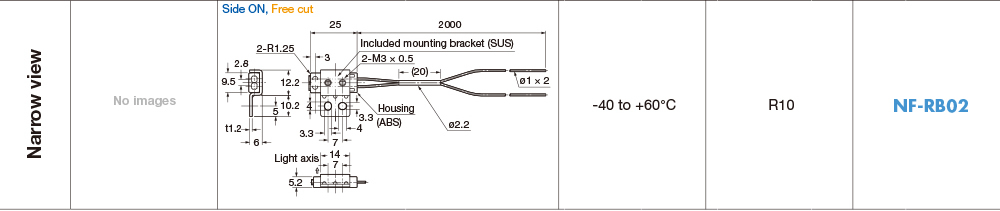

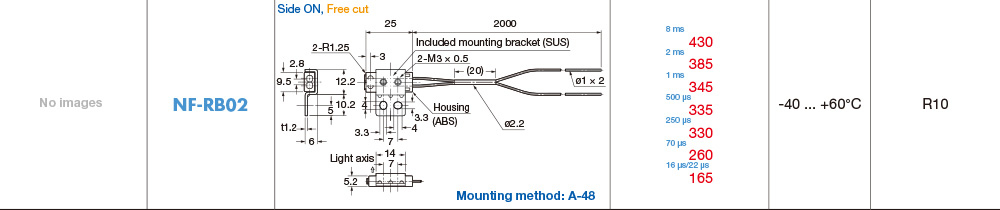

NF-RB02 |  |
Flat view | 2 m Free-cut |
R10 | -40 ... +60 |
•Install with an ambient humidity between 35 and 85%. In the case of 85% RH, the ambient temperature should be between 0 and 40℃.
