Fiber-Optic CablesNF Series Chemical resistant / Oil resistant type

DOWNLOAD

Fiber portion is protected from chemicals and oils using a fluoroplastic coating

NF Series Chemical resistant / Oil resistant type

For use with various chemicals

The detecting part and fiber portion are protected from chemicals by using a fluoroplastic coating. Selection of an optimal model is possible from among 9 through-beam types and 1 diffuse-reflective type.

Chemical resistance

Chemical resistance
Chemical type Typical examples Resistance
Inorganic acids Hydrochloric acid, sulfuric acid, nitric acid, phosphoric acid, chromic acid ✓
Organic acids Acetic acid, oxalic acid, formic acid, oleic acid, phthalic acid ✓
Alkali Caustic soda, caustic potash, ammonia water, calcium hydroxide ✓
Salts Sodium chloride, magnesium sulfate, lead nitrate,
potassium chlorate		 ✓
Alcohols Ethanol, butyl alcohol, glycerol ✓
Glycols ✓
Ketones Acetone, methyl ethyl ketone ✓
Esters Butyl acetate, dibutyl, phthalate ✓
Ethers Ethyl ether, dibutyl ether ✓
Amines Dibutyl amine, triethanolamine ✓
Aliphatics Propane, butadiene, cyclohexane, kerosene ✓
Aromatics Benzene, toluene, xylene, aniline ✓
Organic halogen compounds (chlorine) Carbon tetrachloride, trichlene, ethylene sulfide ✓
Oil resistance
Resistance for fire resistant fluids Resistance
Fire resistant fluid mineral oil ✓
Water-glycolic phosphoric acid ✓
Ester chlorinated hydrocarbons ✓
Diester oil ✓
Silicone ester oil ✓
Low aniline point oils ✓
High aniline point oils ✓

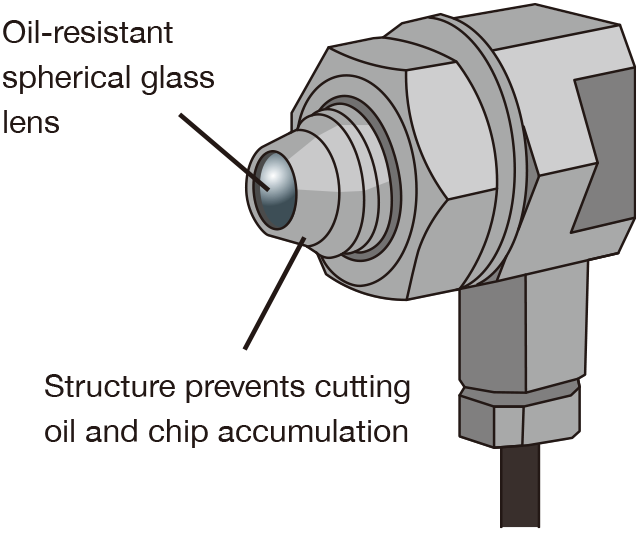

Oil-resistant structure

  • The oil-resistant NF-TR8CF and NF-TR4CF feature fiber coatings covered with fluoropolymer to prevent cutting oil from penetrating inside.
    The detection area features a structure that prevents the accumulation of cutting oil and chips, as well as an oil-resistant spherical glass lens.
