Basic Fiber-Optic SensorsD1RF series

DOWNLOAD

Intelligent & flexible

  • Teach-In + Display type
  • Degree of protection: IP66
  • Mounting holes for M3 screws
D1RF series

Circuit diagram

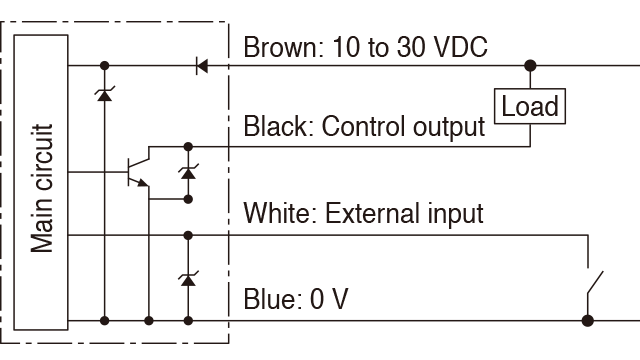

  • With the NPN setting

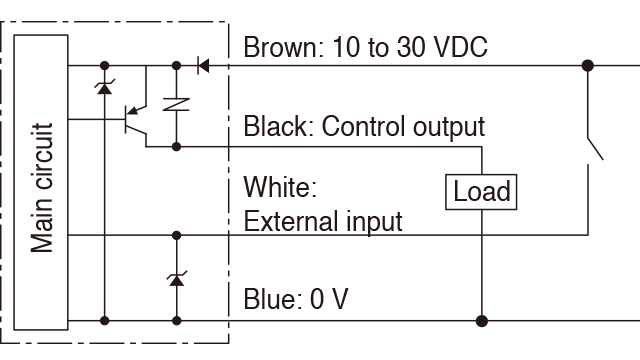

  • With the PNP setting

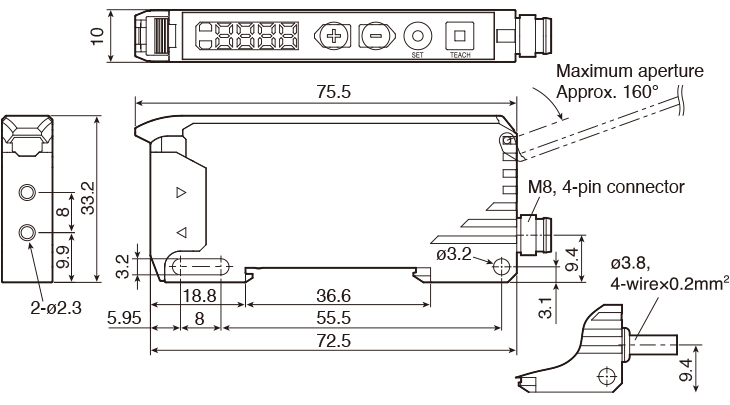

Dimensions

Unit : mm

Connector cable (optional)

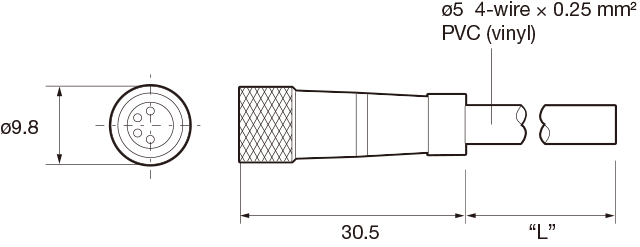

  • JCN-S, JCN-5S, JCN-10S

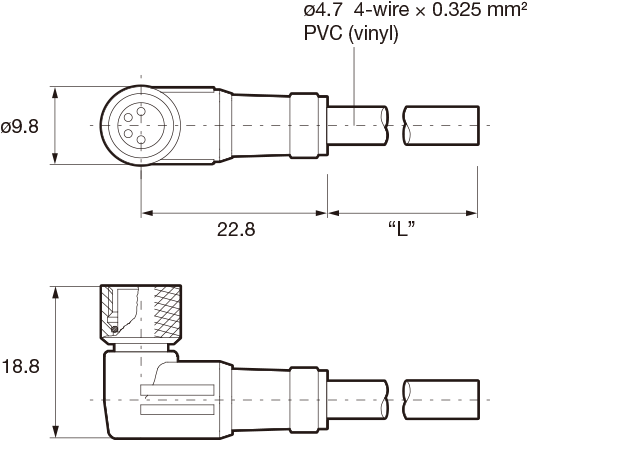

  • JCN-L, JCN-5L, JCN-10L

Successor models

  • M84CN-2S, M84CN-5S, M84CN-10S

  • M84CN-2L, M84CN-5L, M84CN-10L
