Universal Voltage LED BGS SensorsBGS-2V Series

DOWNLOAD

Standard BGS model A renewal of the BGS-V series

  • Dual lens achieves long range detection
  • Maximum sensing distance of 1 m
  • Universal voltage type that eliminates the need to choose power supply
BGS-2V Series

I/O circuit diagram

  • NPN output type (DC power type)

  • PNP output type (DC power type)

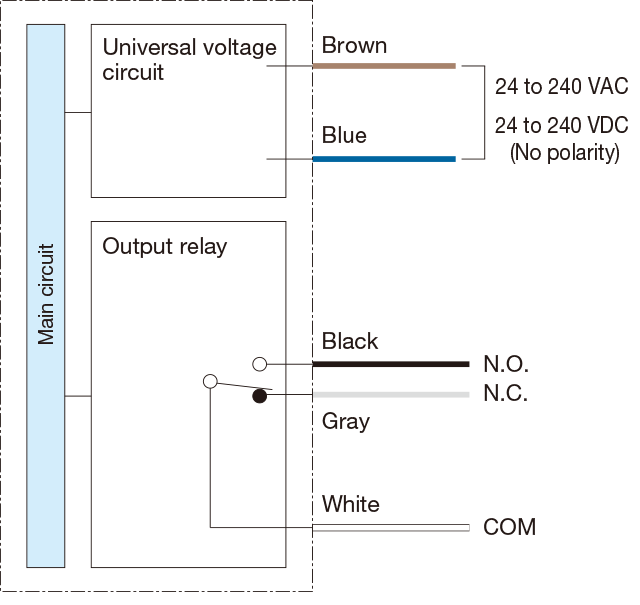

  • Universal voltage type

  • DC power connector type

  • Notes

    ▪ When using a switching regulator for the power supply, be sure to ground the frame ground terminal.
    ▪ Wiring sensor cables with high-voltage or power supply lines can result in malfunctions due to noise, which can cause damage, make sure to wire separately.
    ▪ Avoid using the transient state while the power is on (approx. 150 ms).

Dimensions

(Unit : mm)

Sensor

Cable type

Connector type

Mounting bracket

Cable type

Connector type

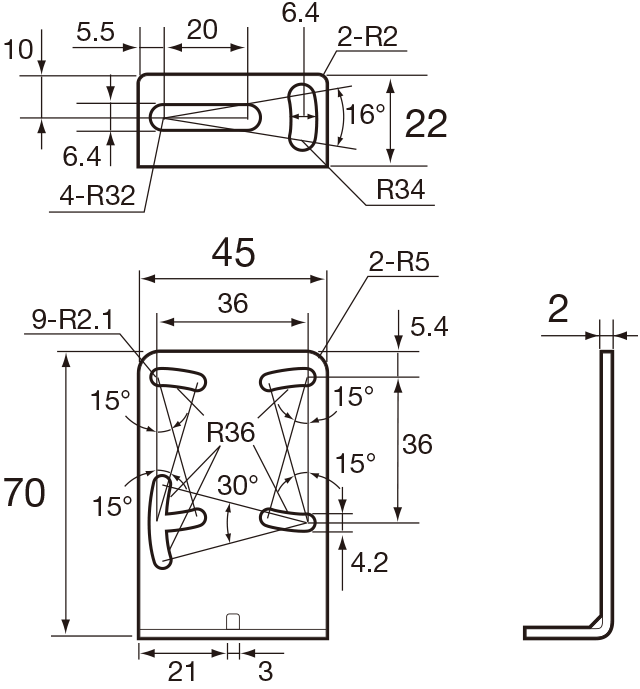

Mounting bracket (included)

  • BEF-W250

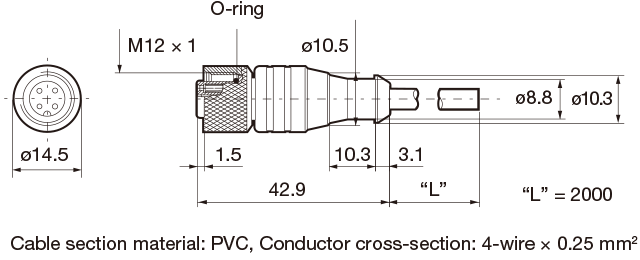

  • Connector cables

    DOL-1204-G02M

  • Successor models

    YF2A14-020VB3XLEAX
