Universal Voltage SensorsV3/V4 Series

DOWNLOAD

Universal voltage type that allows selection of connection types

  • Sensing distance: 70 m
  • Uses a red LED for the light source.
    Easy adjustment of light axis even over long distances
  • Universal voltage types are available as terminal block types and cable types
    DC power types are also available as connector types
V3/V4 Series

Output circuit diagram

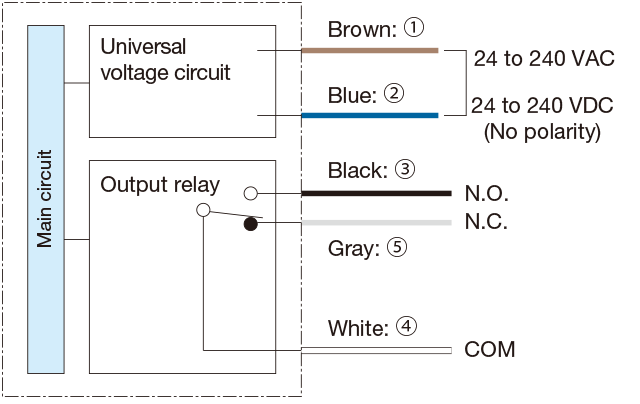

  • Universal voltage type

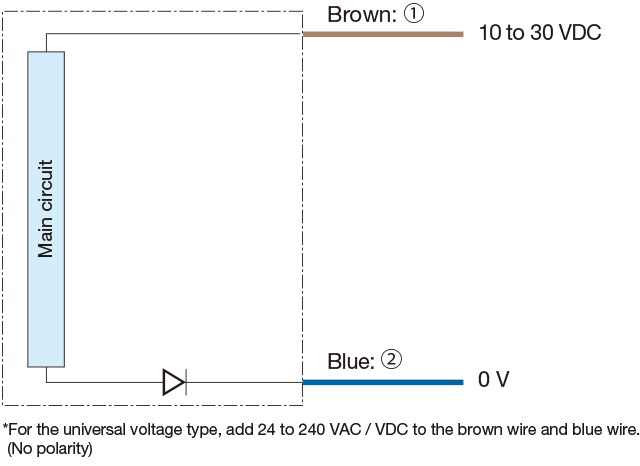

  • Through-beam type emitter

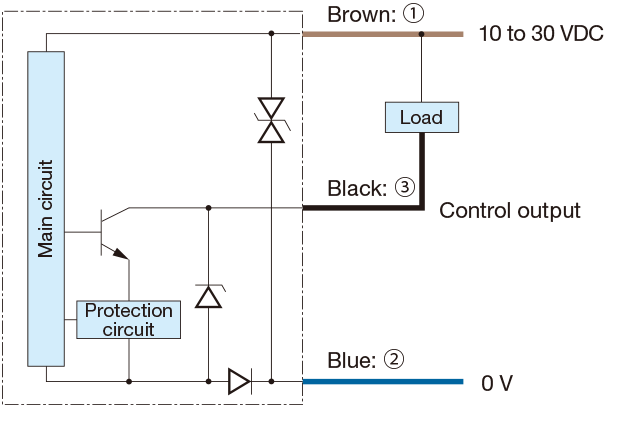

  • NPN output type

  • Connector type

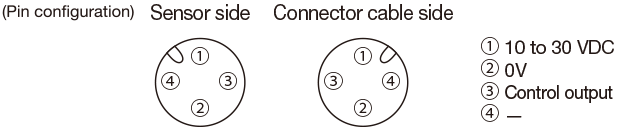

    Connecting

    ▪ 1 to 4 are connector pin No.

    Notes

    ▪ When using a switching regulator for the power supply, be sure to ground the frame ground terminal.
    ▪ Avoid wiring in parallel with or in the same piping as high-voltage wires or power lines. Doing so may lead to malfunctions caused by noise. Also, shorten the power supply and signal wires as much as possible.
    ▪ Avoid using the transient state while the power is on (approx. 100 ms).

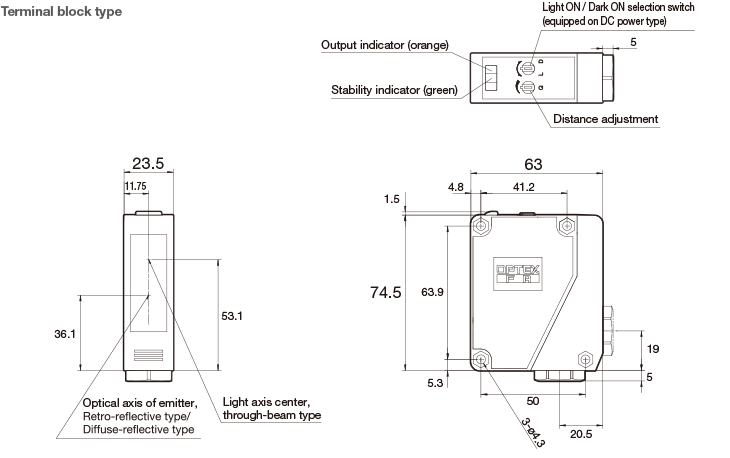

Dimensions

(Unit: mm)

Sensor

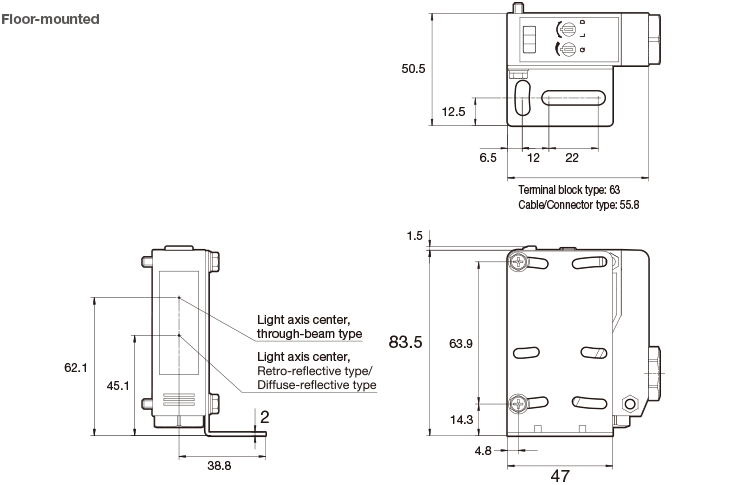

Mounting bracket

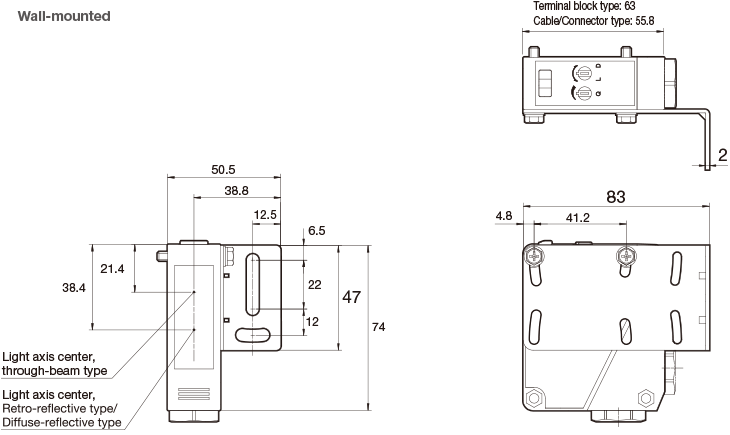

Mounting bracket

Reflector

  • V-61: Standard type reflector
    (included with retro-reflective type)

  • V-42: Small reflector (optional)

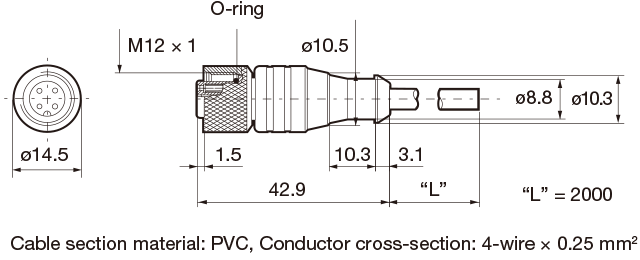

Connector cable (optional)

  • DOL-1204-G02M

Successor models

  • YF2A14-020VB3XLEAX
