Universal Voltage SensorsV3/V4 Series

DOWNLOAD

Universal voltage type that allows selection of connection types

  • Sensing distance: 70 m
  • Uses a red LED for the light source.
    Easy adjustment of light axis even over long distances
  • Universal voltage types are available as terminal block types and cable types
    DC power types are also available as connector types
V3/V4 Series

Typical characteristic data

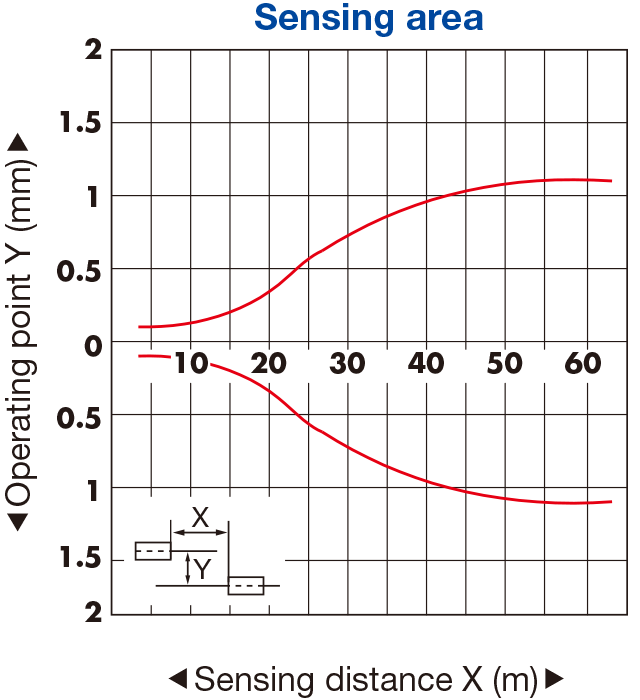

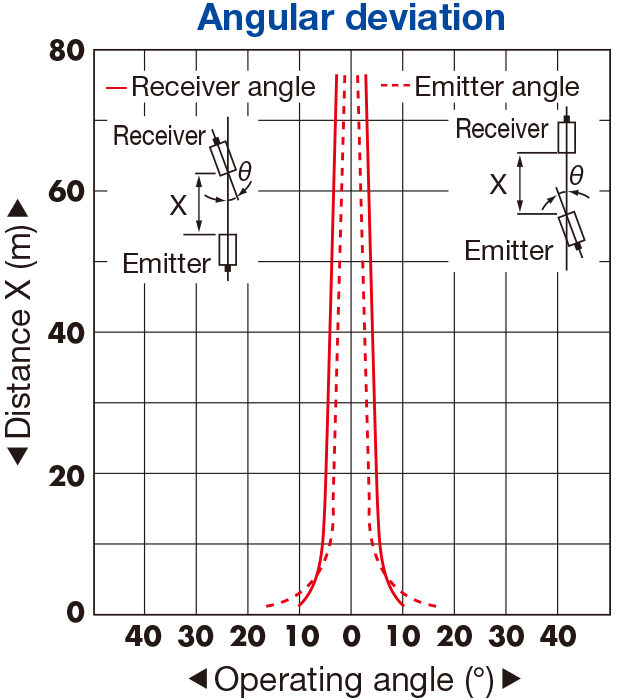

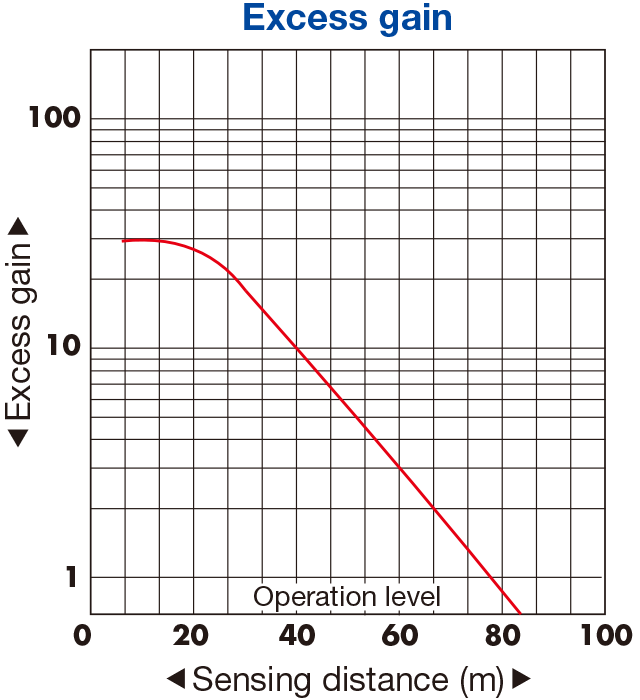

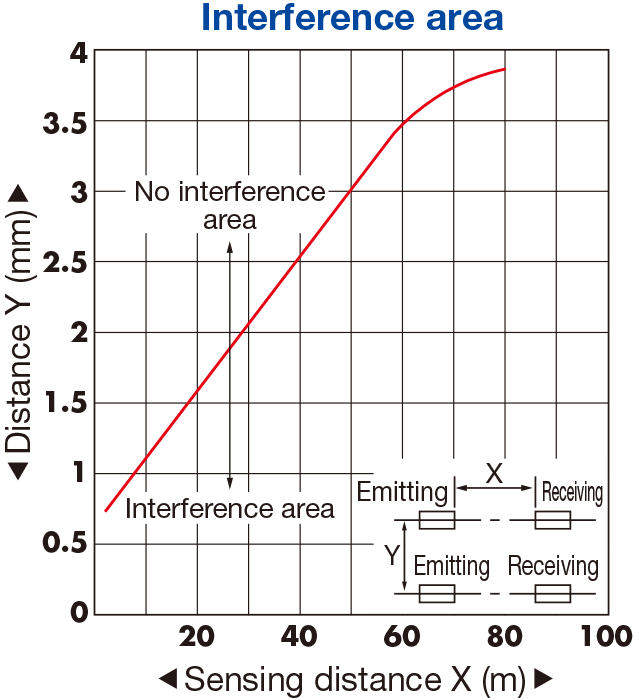

V3T-7000☐/V4T-7000☐

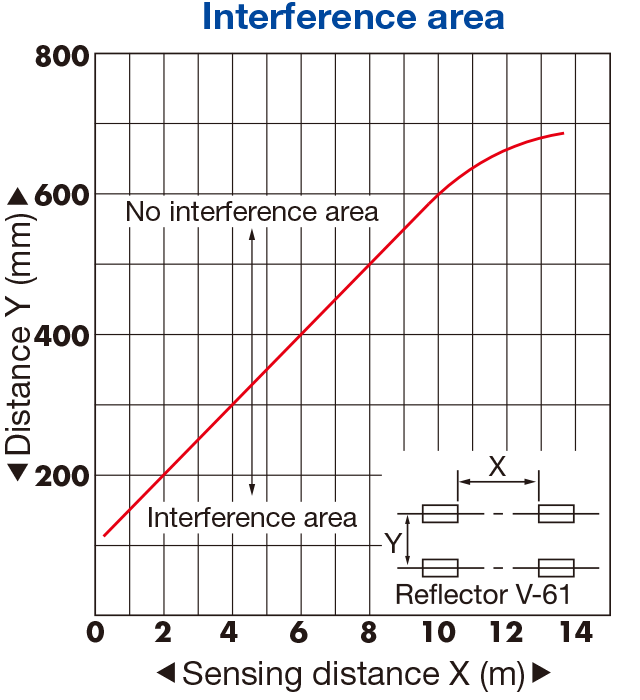

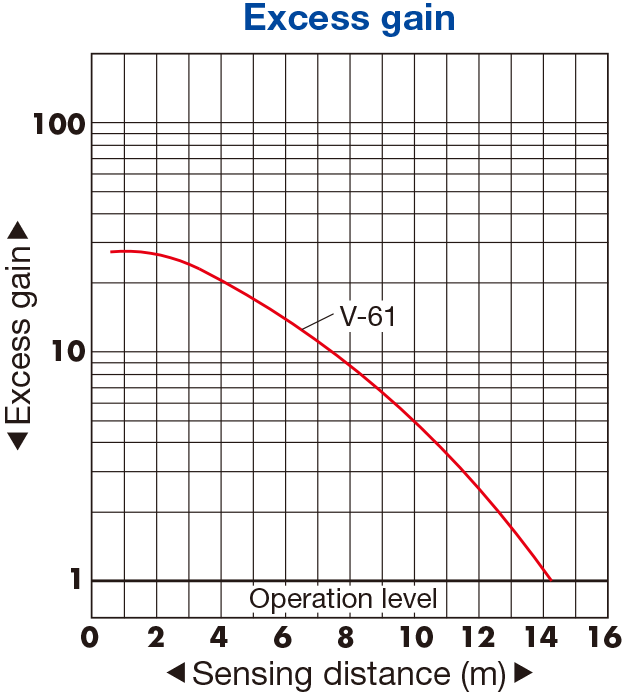

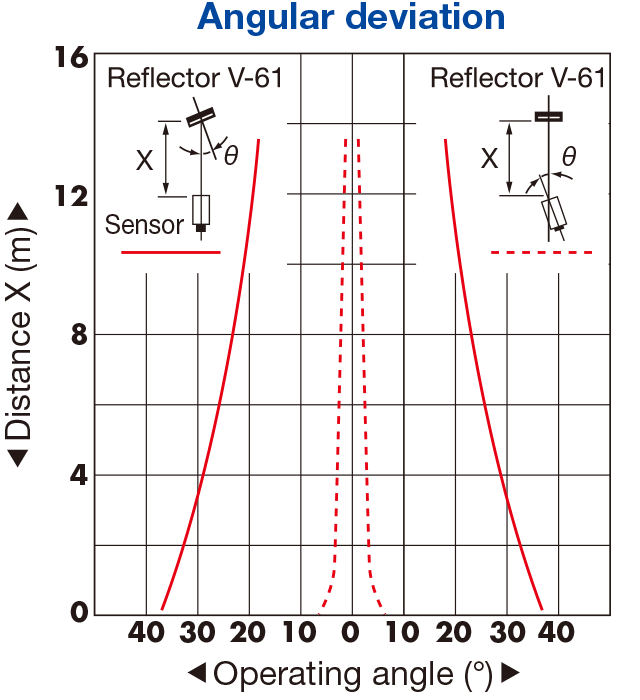

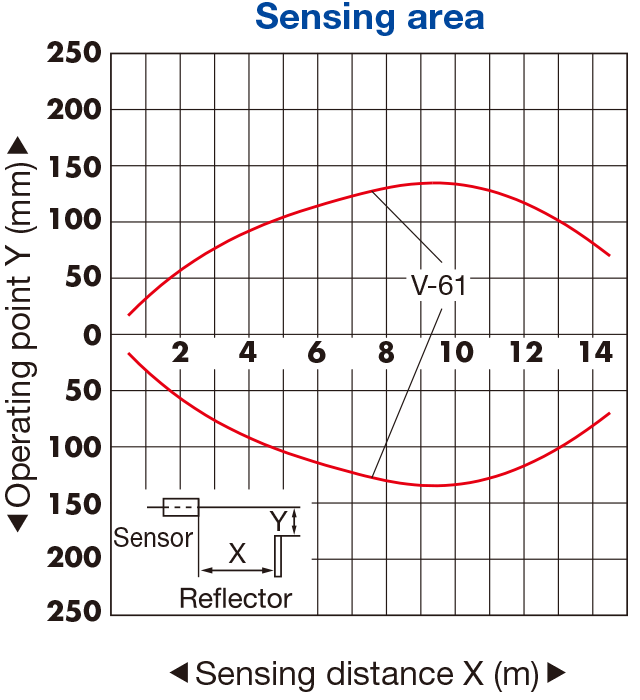

V3R-1200☐/V4R-1200☐

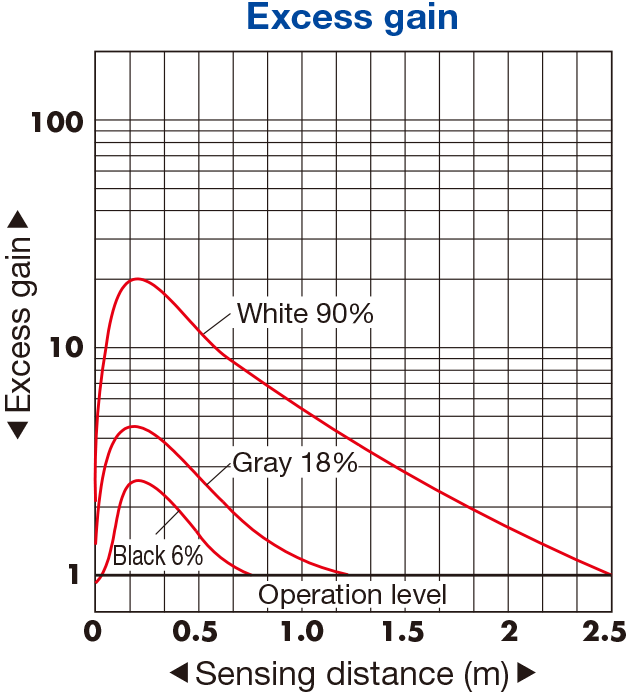

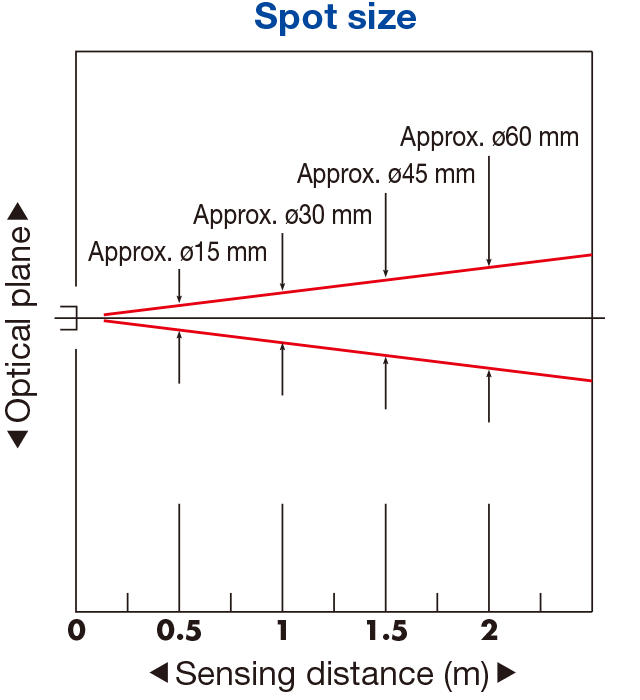

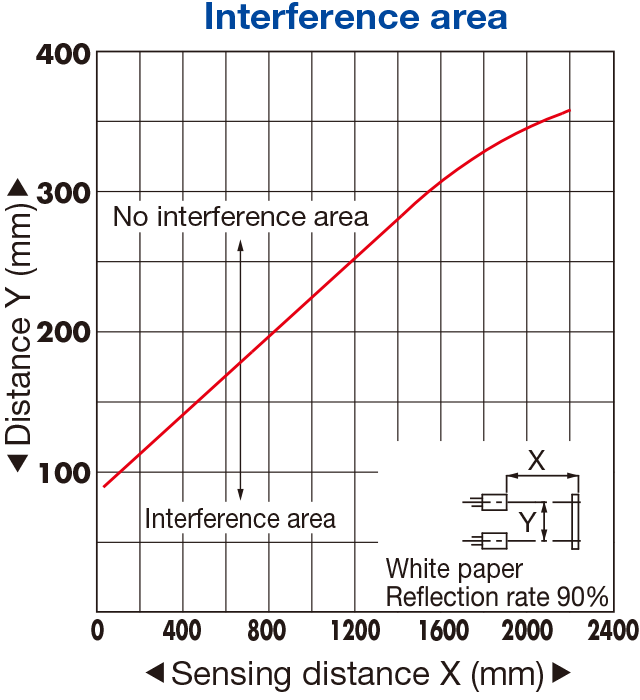

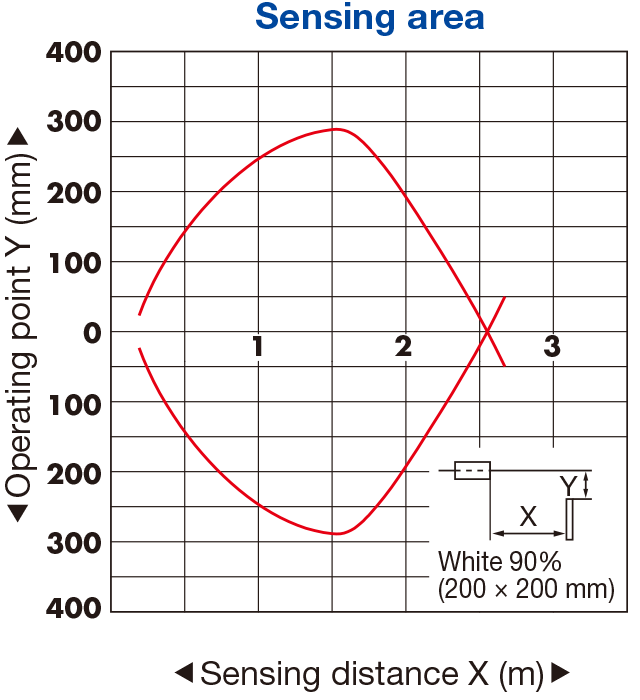

V3D-200☐/V4D-200☐
