M18 Cylindrical SensorsC2 Series


Standard M18 Threaded Type Sensor

  • Selectable metal or plastic enclosure
  • Rich lineup of over 100 variations
C2 Series

I/O circuit diagram

  • NPN output type

  • PNP output type

  • Connector type

  • Notes

    ▪ When using a switching regulator for the power supply, be sure to ground the frame ground terminal.
    ▪ Avoid wiring in parallel with or in the same piping as high-voltage wires or power lines. Doing so may lead to malfunctions caused by noise. Also, shorten the power supply and signal wires as much as possible.
    ▪ Avoid using the transient state while the power is on (approx. 100 ms).
    ▪ The connector direction is fixed as in the drawing to the right when you use L-shaped connector cable. Be aware that rotation is not possible.

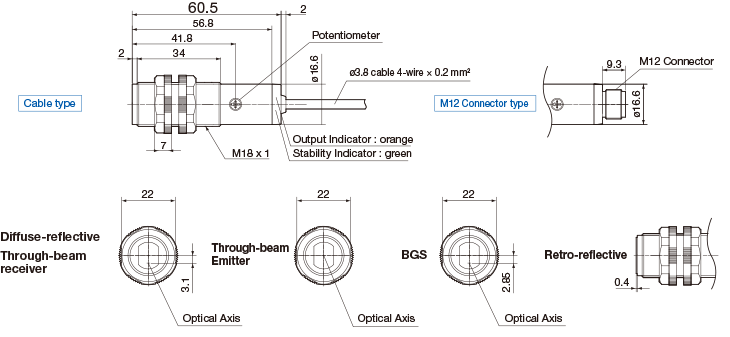

Unit : mm

Plastic housing


Angle (90 degree)

Metal housing


Angle (90 degree)

Connector cable (optional)

  • YF2A14-020VB3XLEAX
