M18 Cylindrical TypeC2 Series

DOWNLOAD

Standard M18 Threaded Type Sensor

  • Selectable metal or plastic enclosure
  • Rich lineup of over 100 variations
C2 Series

Typical characteristic data

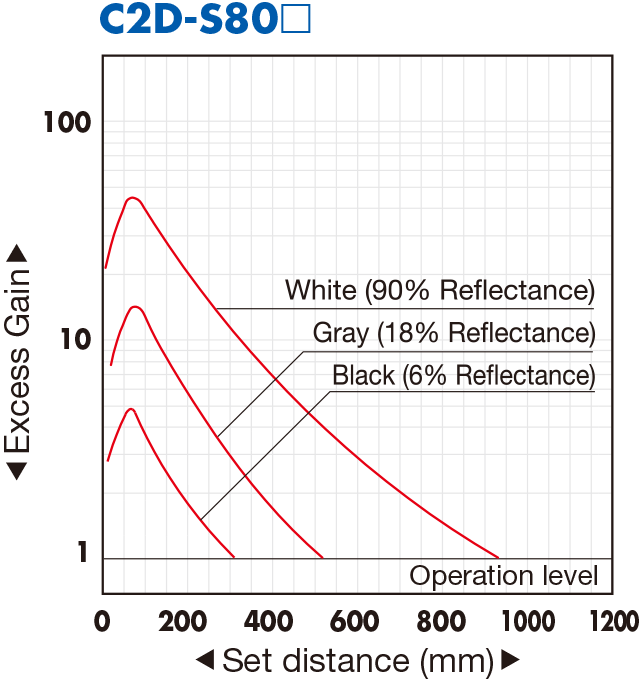

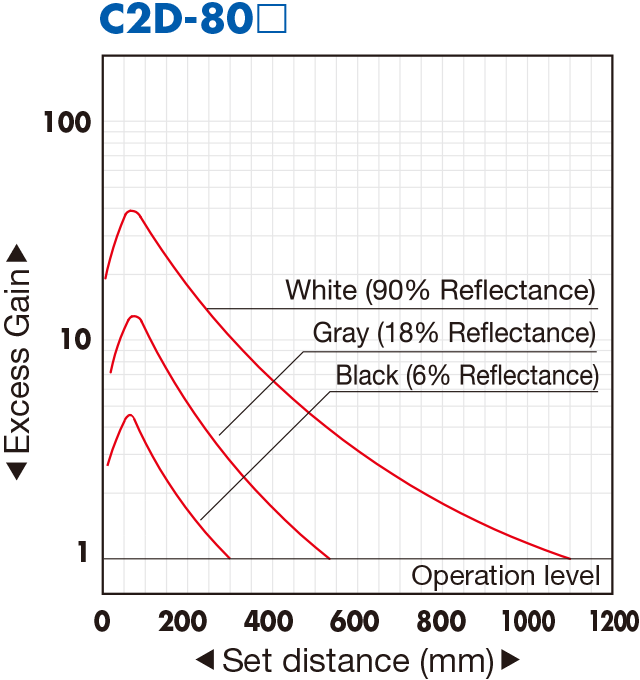

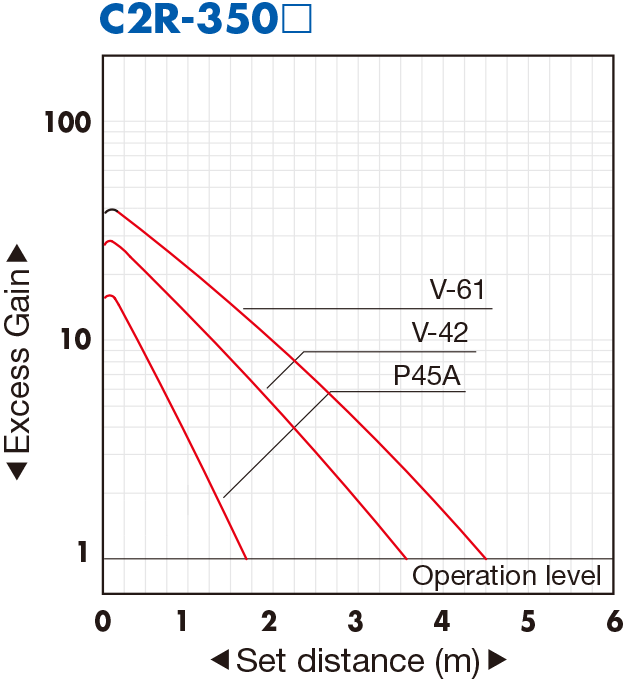

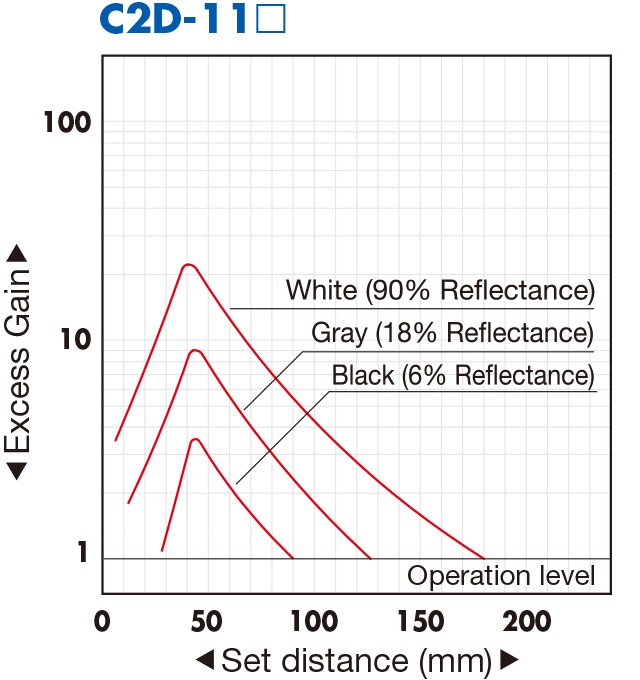

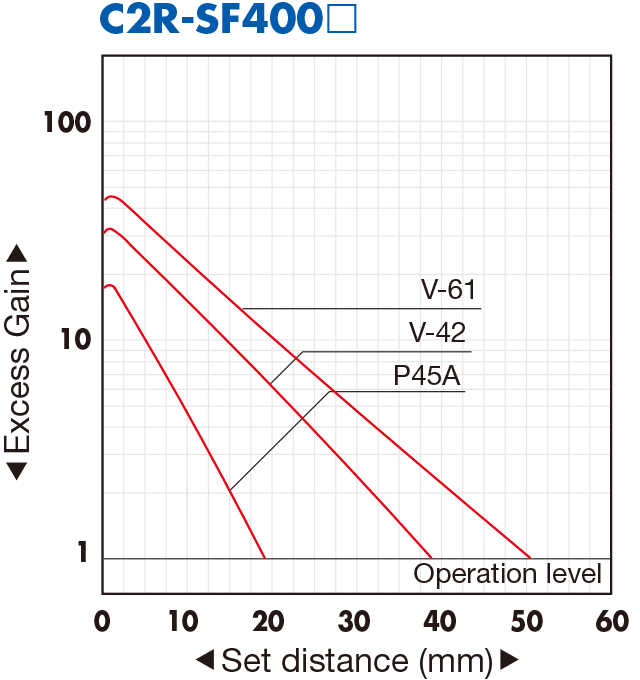

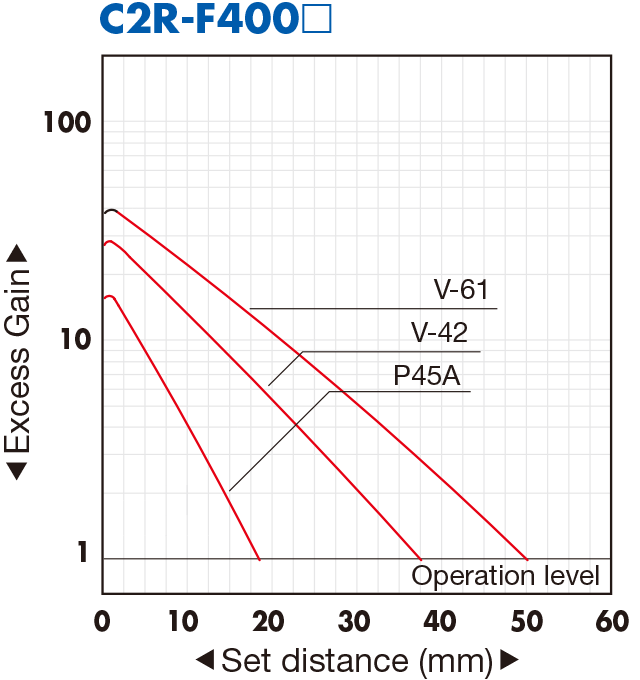

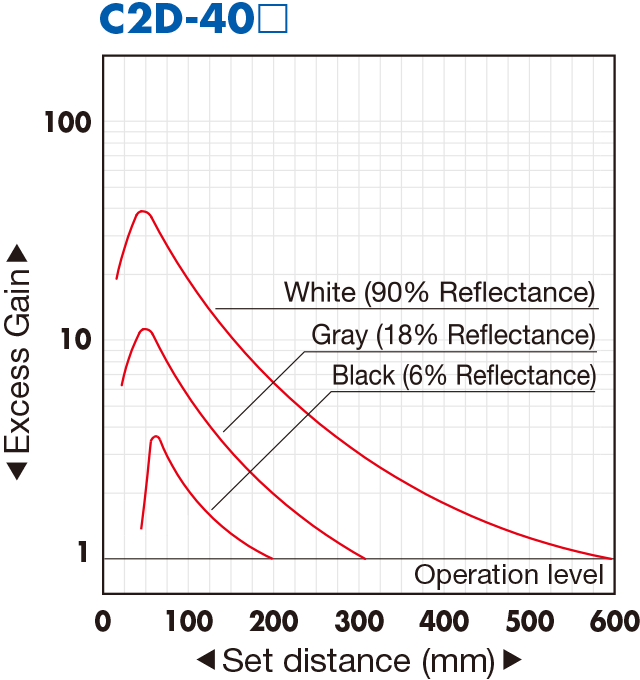

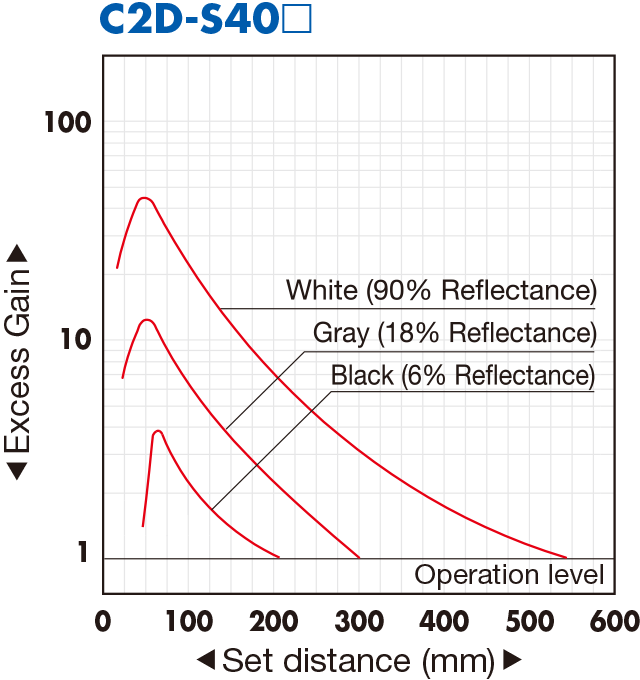

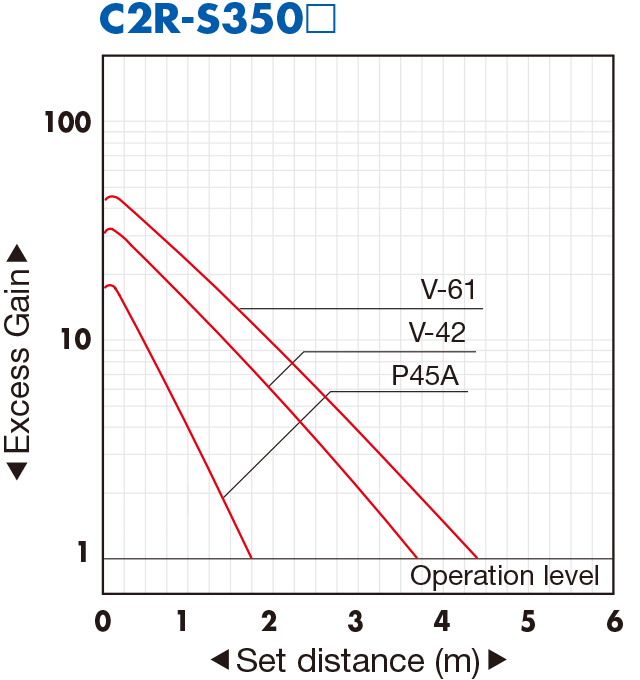

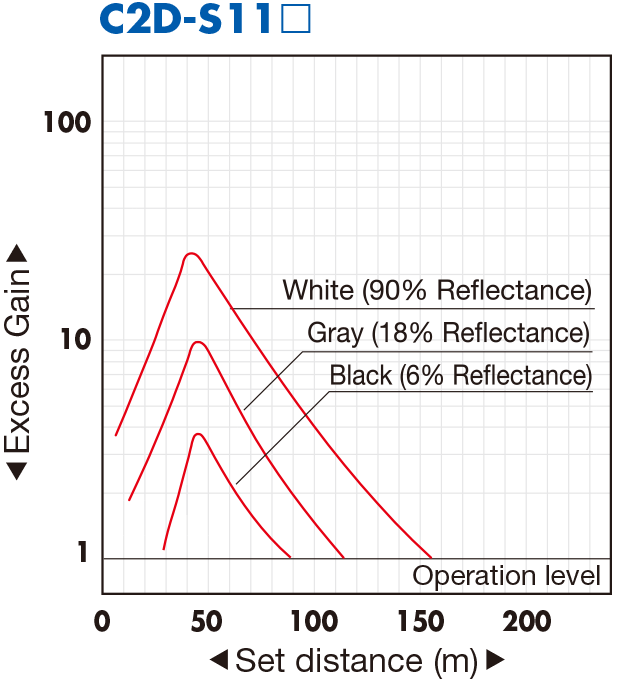

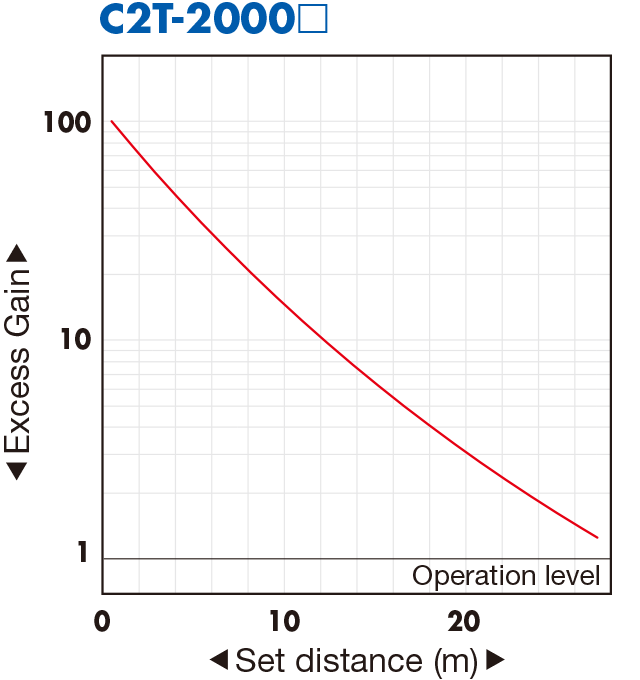

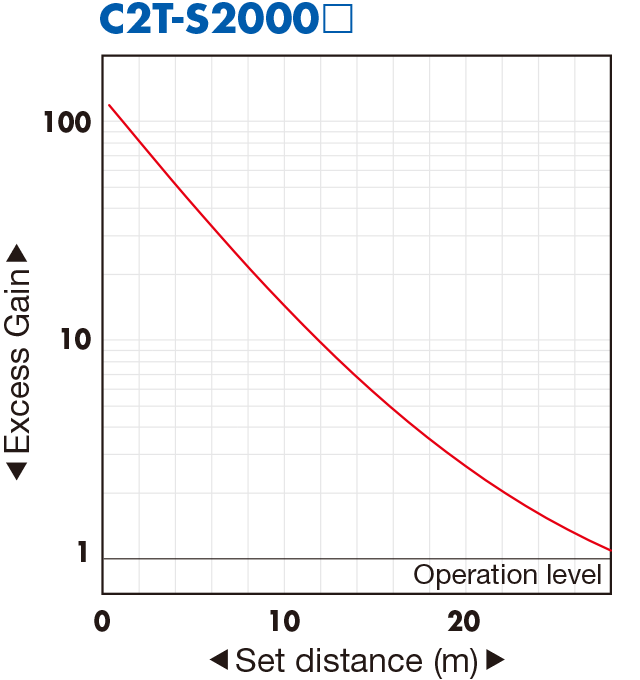

Excess gain *common between plastic / metal housing

Standard

Angle (90 degree)

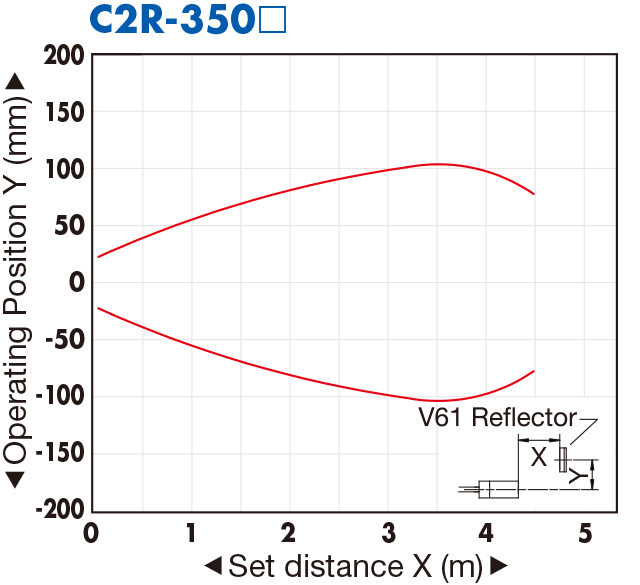

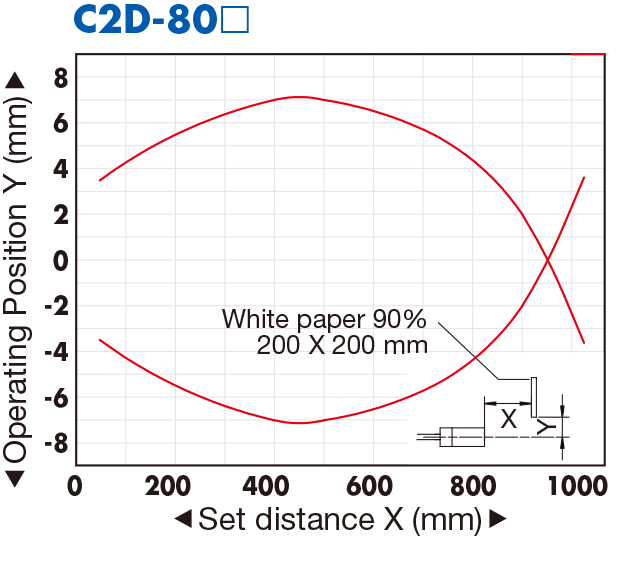

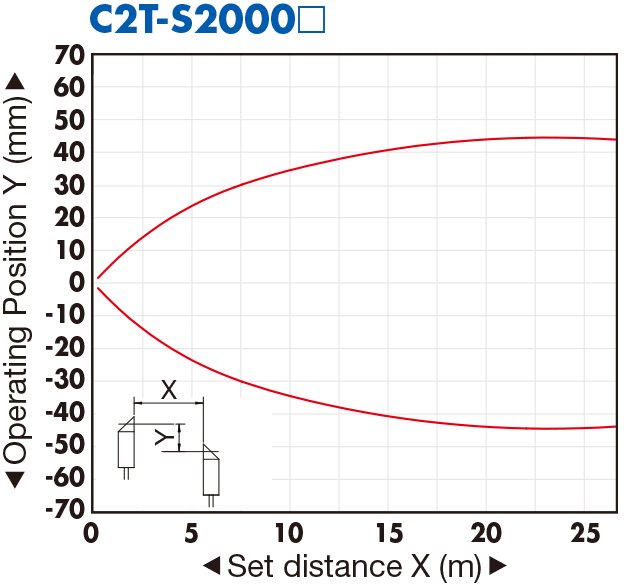

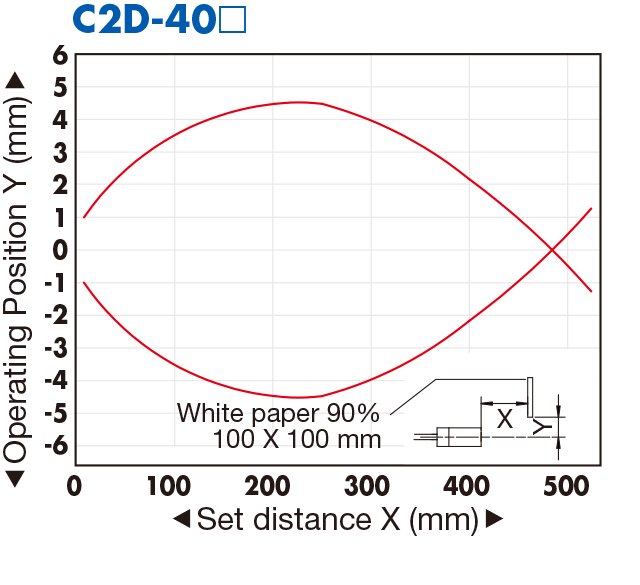

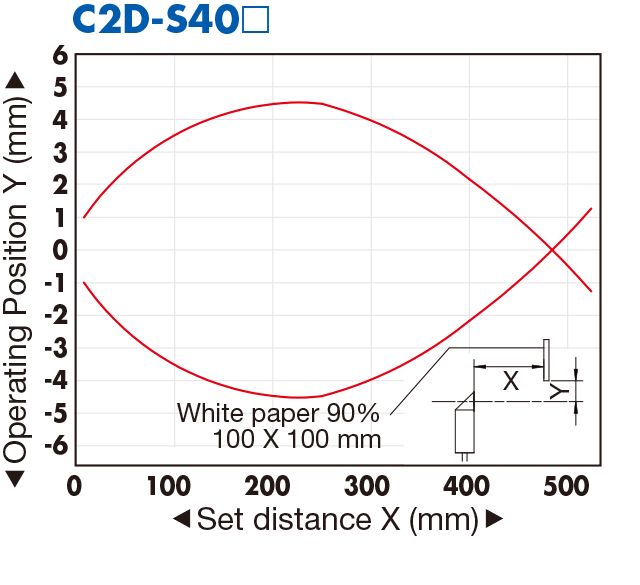

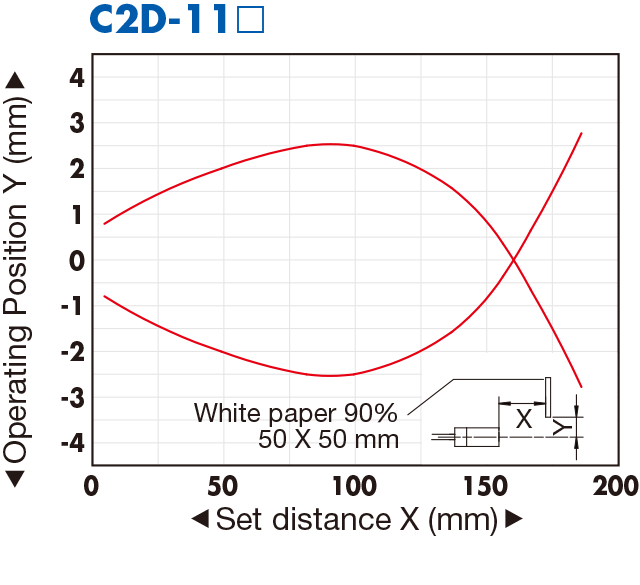

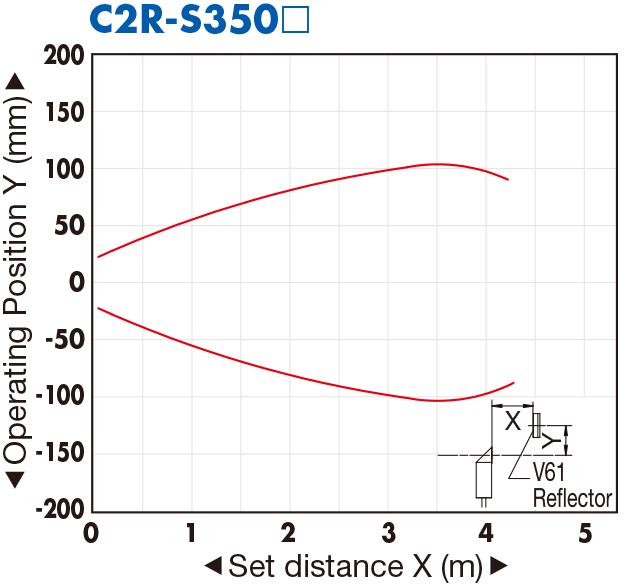

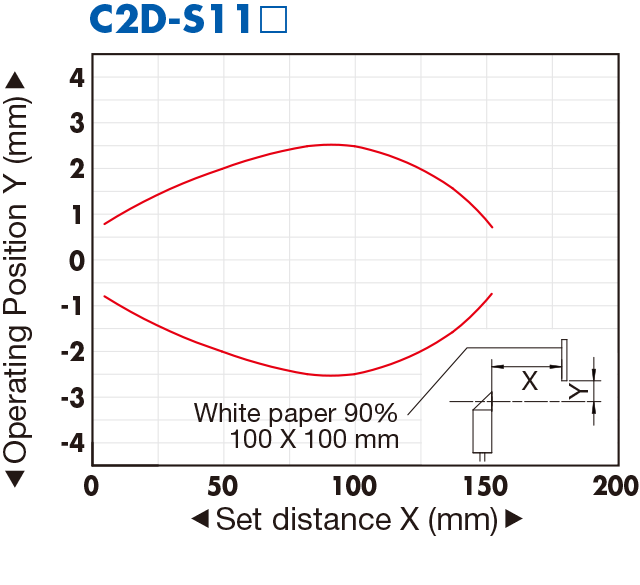

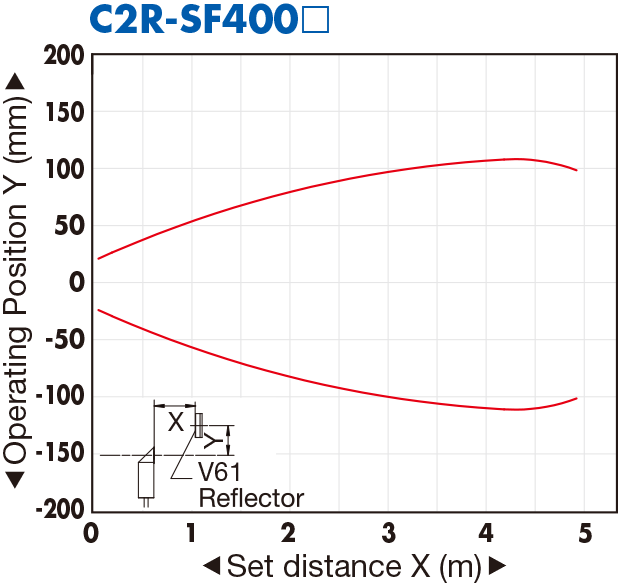

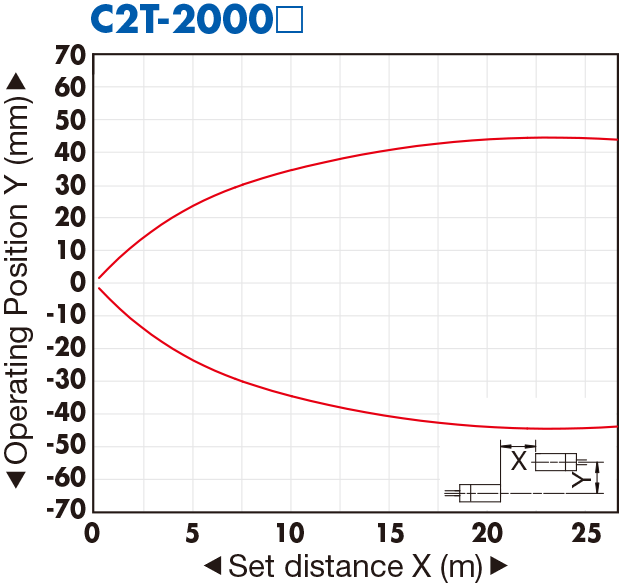

Sensing area *common between plastic / metal housing

Standard

Angle (90 degree)

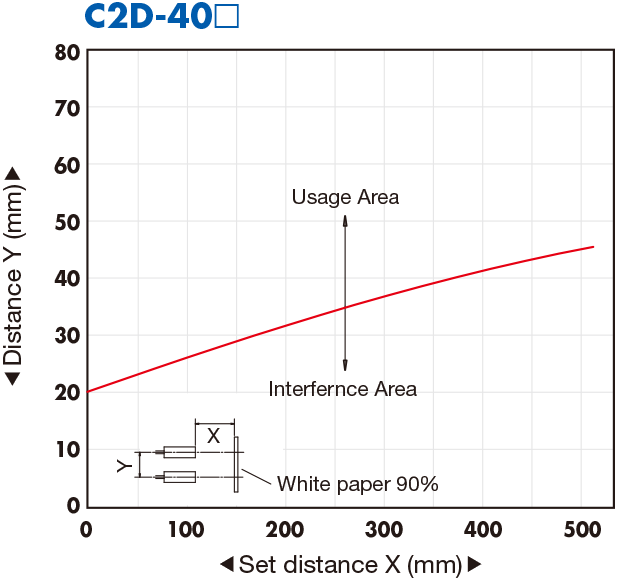

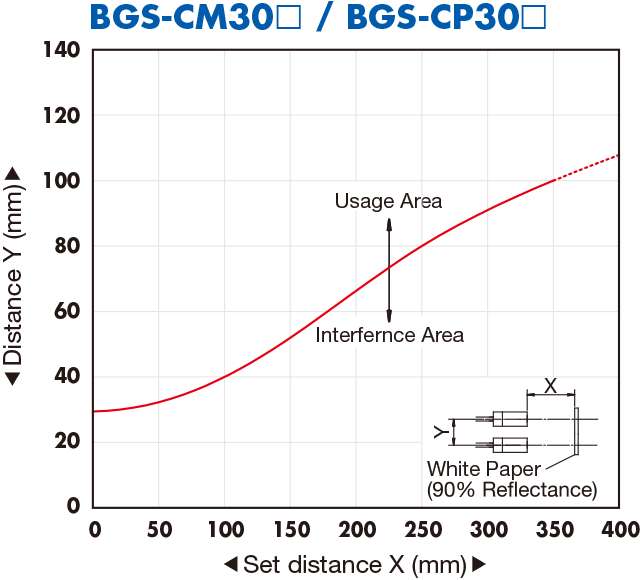

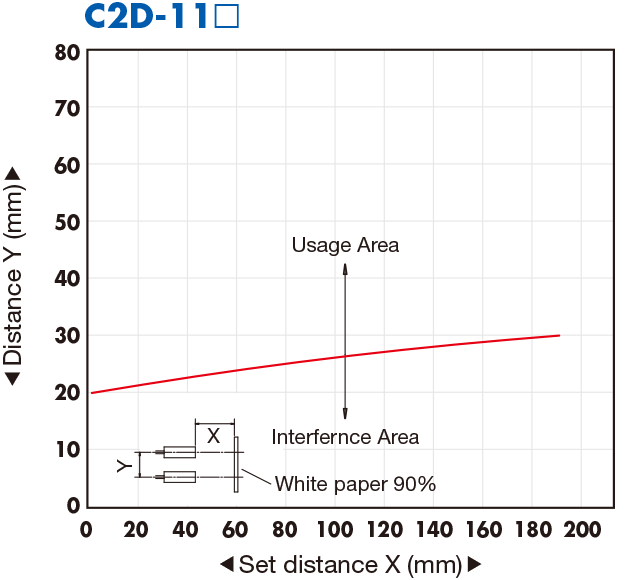

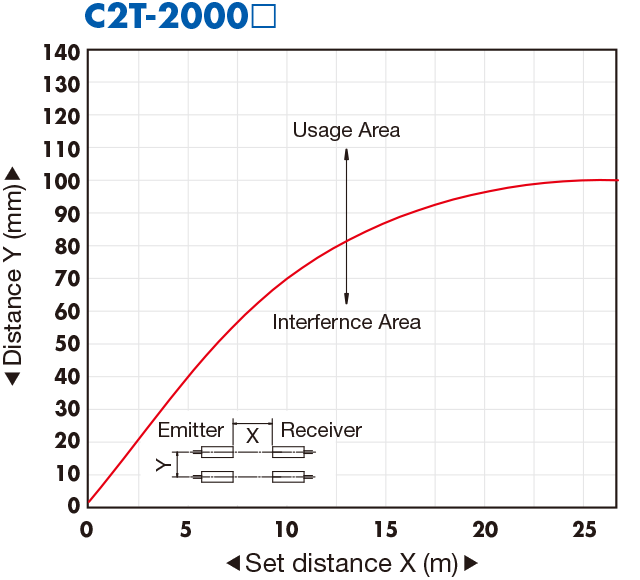

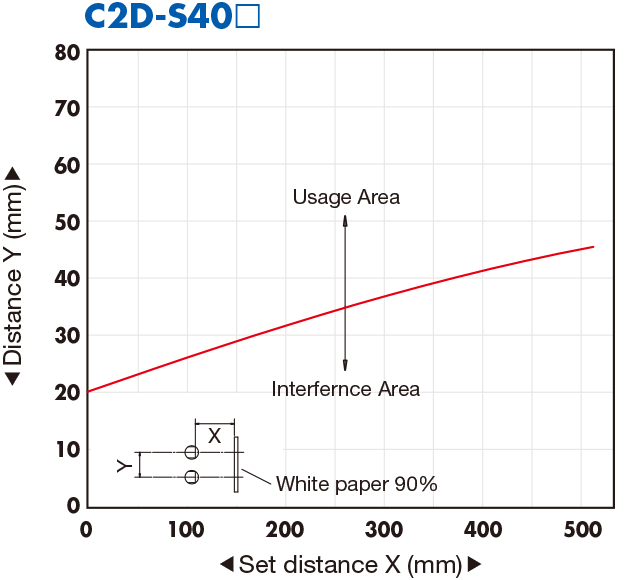

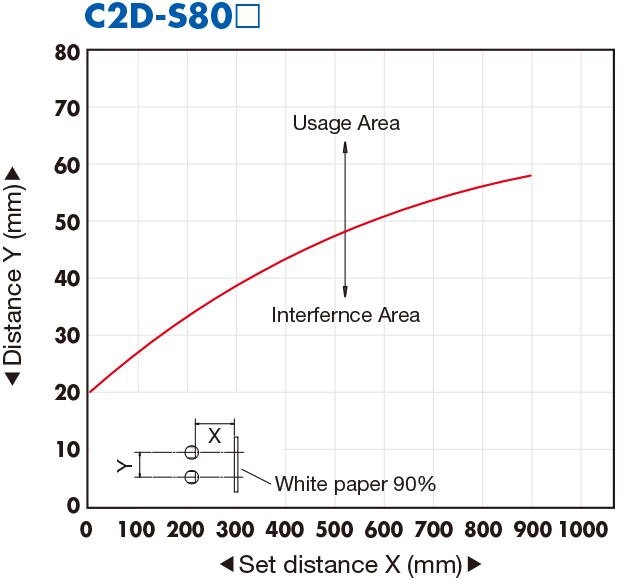

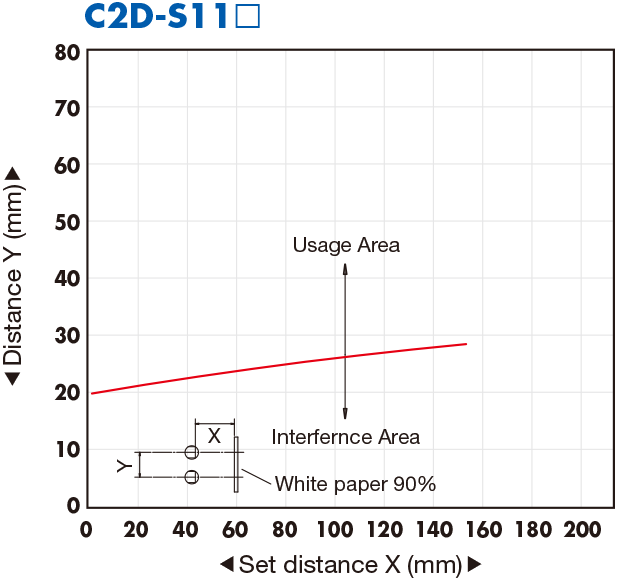

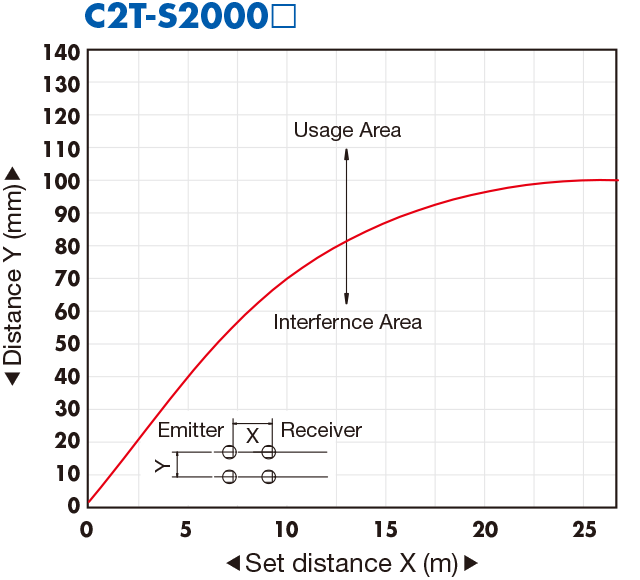

Interference area *common between plastic / metal housing

Standard

Angle (90 degree)

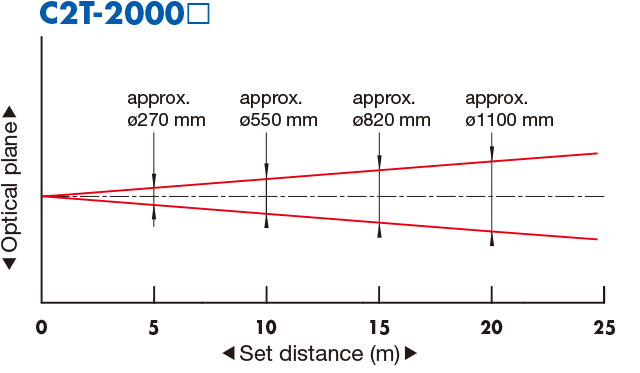

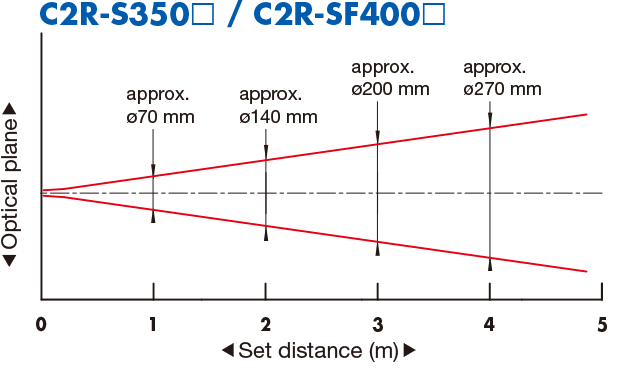

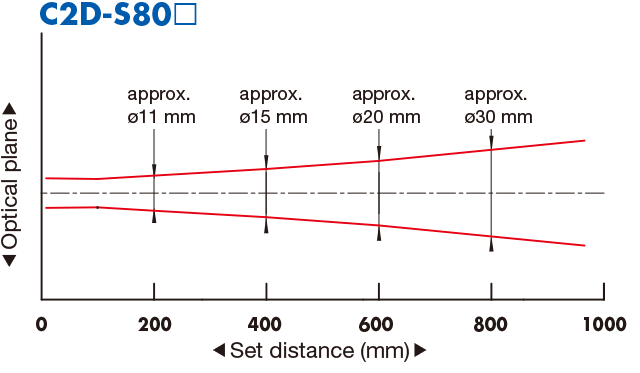

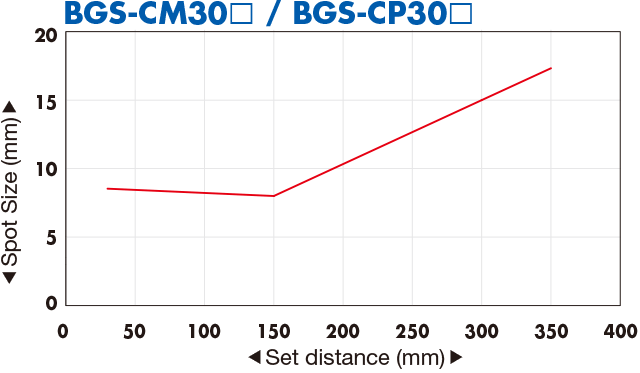

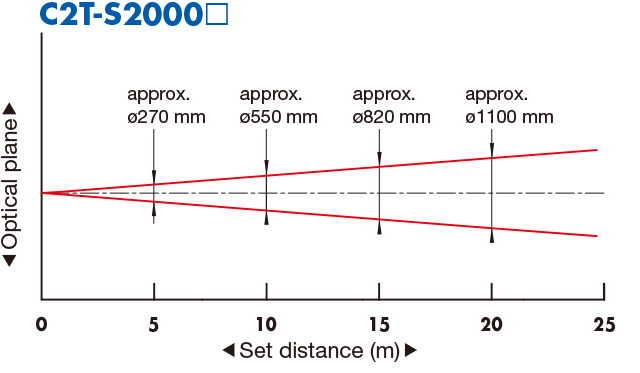

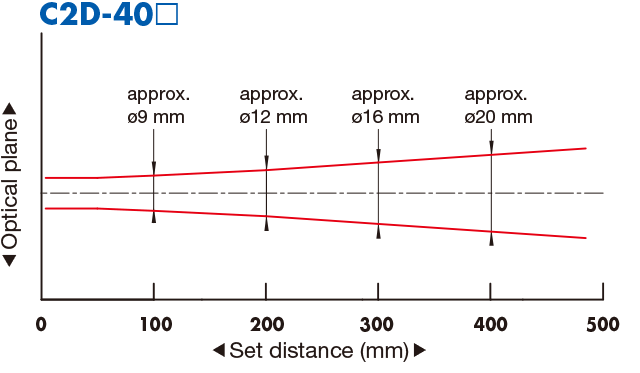

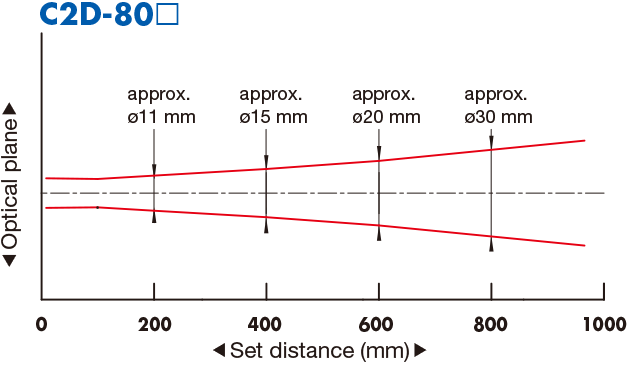

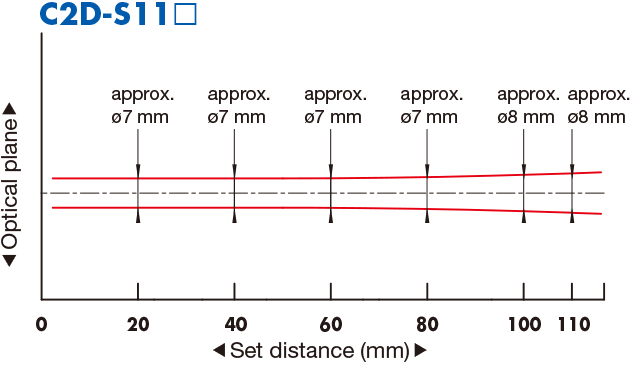

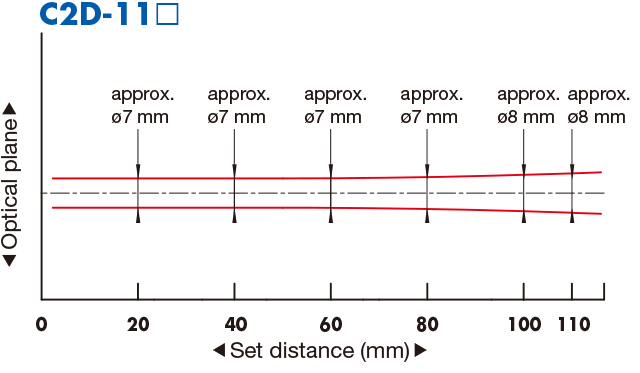

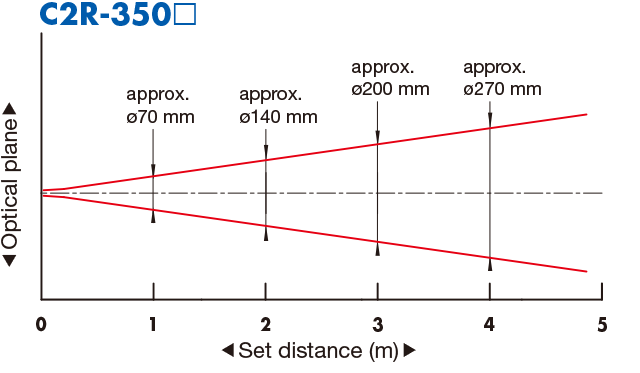

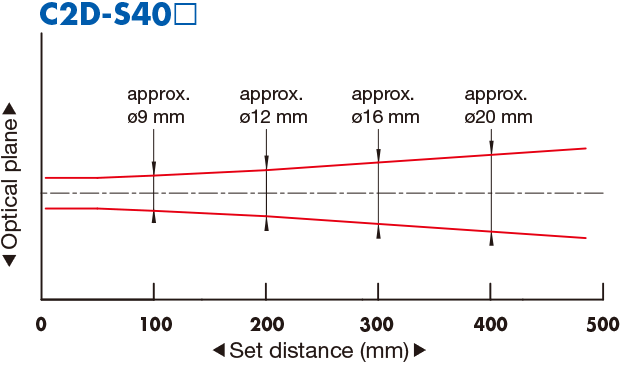

Spot size *common between plastic / metal housing

Standard

Angle (90 degree)

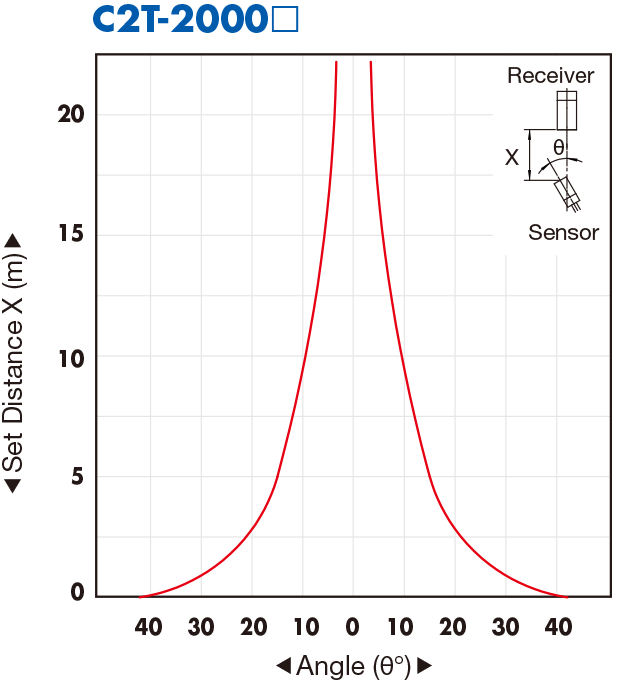

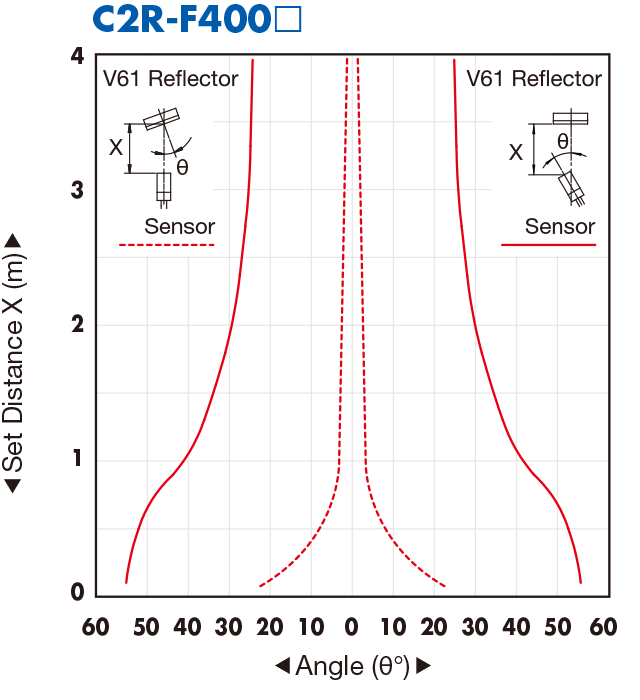

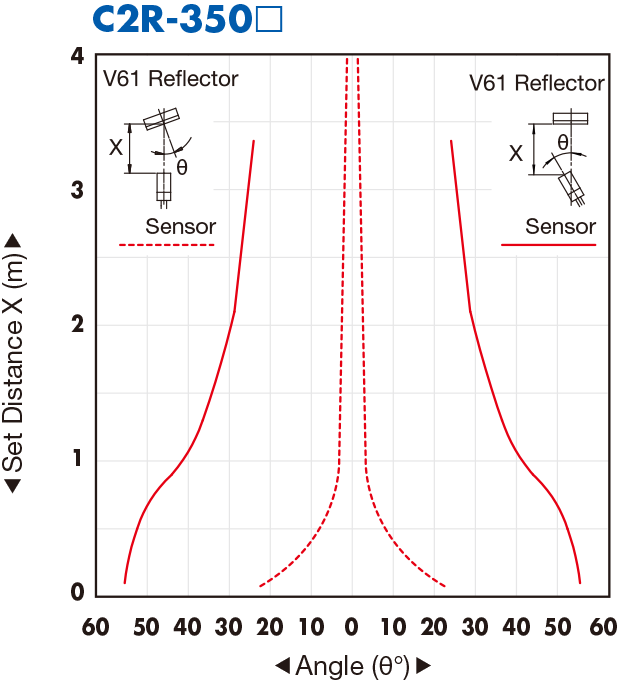

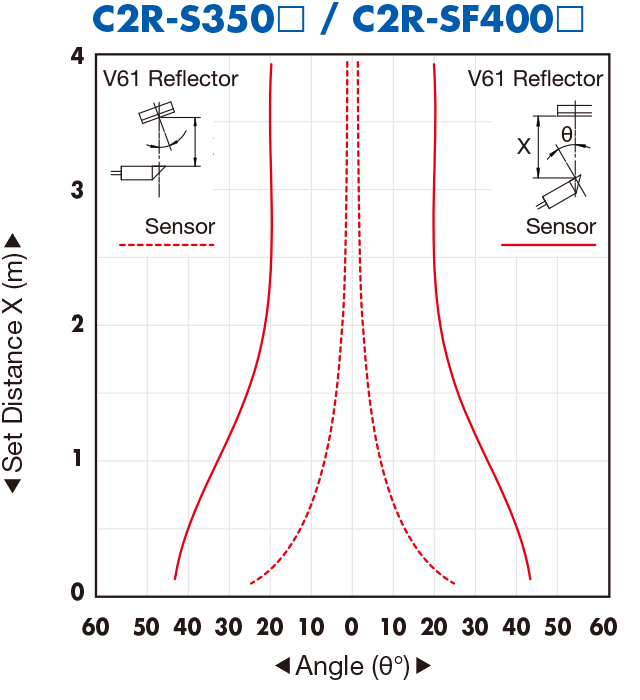

Angular deviation *common between plastic / metal housing

Standard

Angle (90 degree)

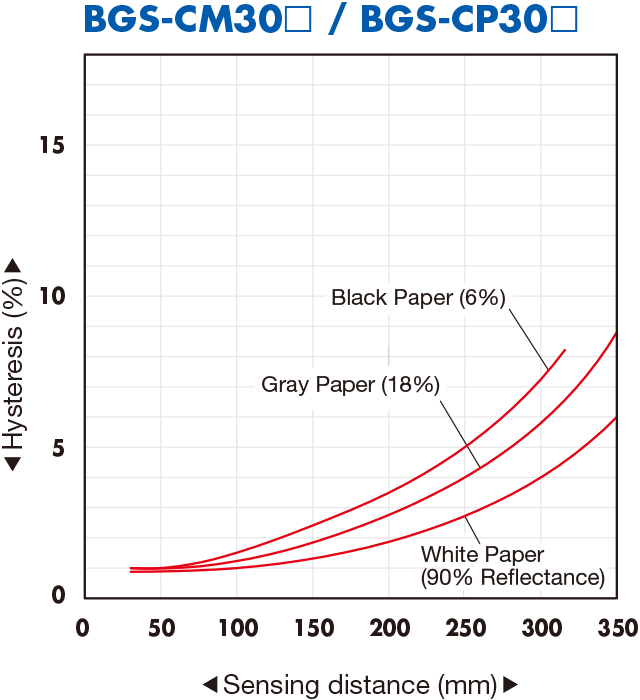

BGS Hysteresis

*common among all the BGS types

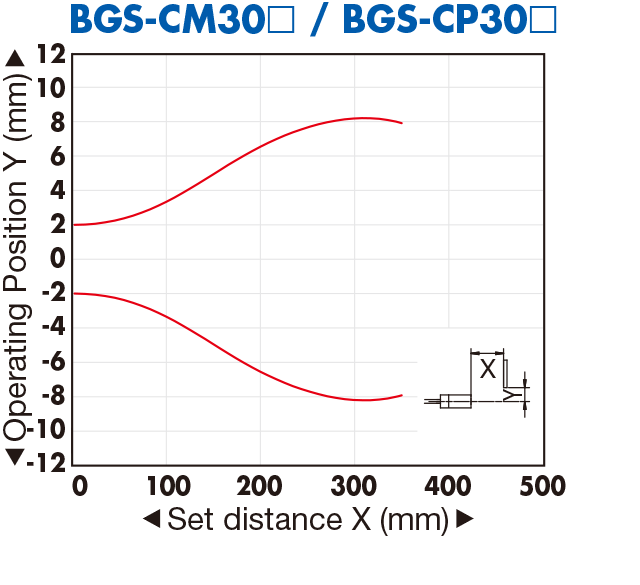

BGS Response *common among all the BGS types

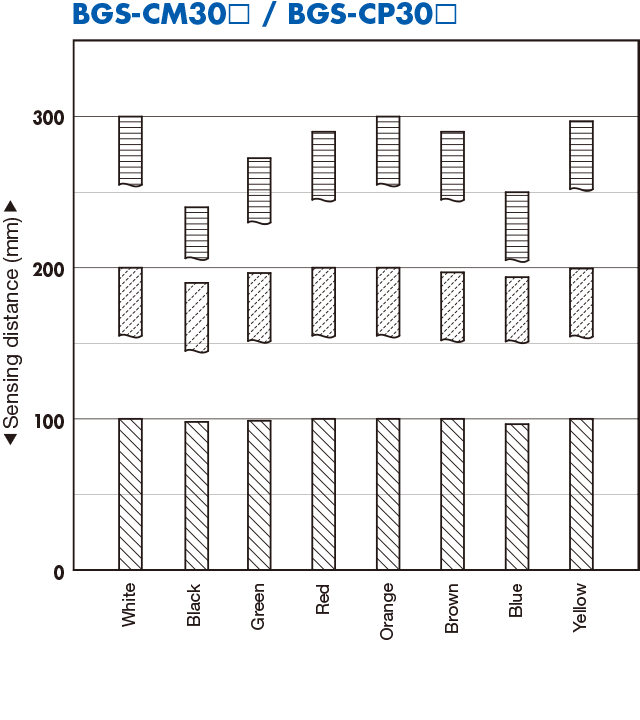

Color response

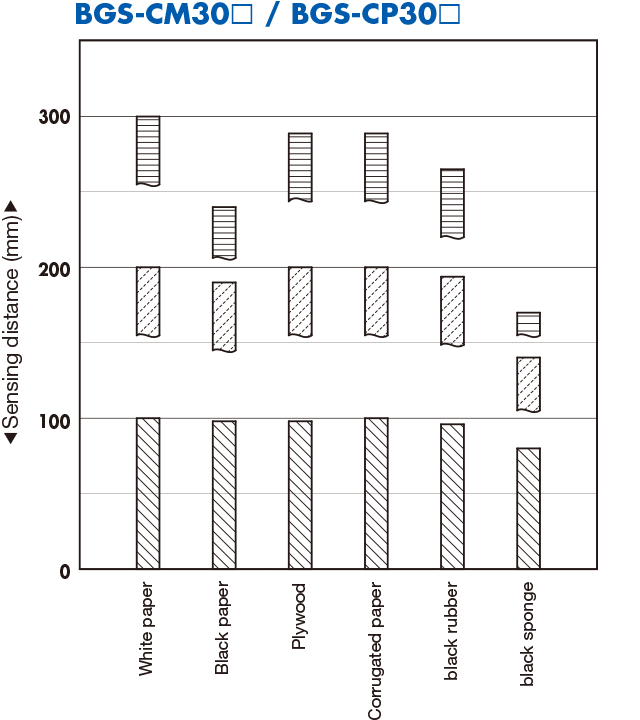

Material response
