Discontinued Products
- Some models in this product series have been discontinued.
Specifications
Technical Data
| Type | Connector type | ||
|---|---|---|---|
| Model | NPN | ZR-X250N | ZR-X250CN4 |
| PNP | ZR-X250P | ZR-X250CP4 | |
| Sensing distance* | 0 to 2.5m | ||
| Light source | Red LED | ||
| Spot size | Approx. Φ60 mm / 2m | ||
| Response time | 250 μs or less | ||
| Sensitivity adjustment | 1-turn volume | ||
| Indicators | Output indicator (orange) / Stability indicator (green) | ||
| Control output | NPN/PNP open collector, Max. 100 mA / 30 VDC | ||
| Output mode | Light ON / Dark ON selectable | ||
| Connection type | 2m cable | M8 4-pin connector | |
| Rating | Supply voltage | 10 to 30 VDC, including 10% ripple (p-p) | |
| Current consumption | 20 mA or less | ||
| Applicable regulations | EMC | EMC directive (2014/30/EU) | |
| Environment | RoHS directive(2011/ 65/EU), China RoHS(MIIT Order No.32) |
||
| Applicable standards | EN 60947-5-2 | ||
| NRTL Certification | UL Recognized Component | ||
| Environmental resistance | Ambient temperature/humidity | -25 to +55℃ (no freezing) / 35 to 85% RH (no condensation) | |
| Ambient illuminance | Sunlight: 10,000 lx, Incandescent lamp: 3,000 lx | ||
| Vibration resistance | 10 to 55 Hz; double amplitude 1.5 mm; 2 hours in each of the X, Y, and Z directions |
||
| Shock resistance | Approx. 100 G (1000 m/s2); 3 times in each of the X, Y, and Z directions |
||
| Degree of protection | IP67 | ||
| Material | Case : ABS (glass fiber filled), Front cover : PMMA | ||
| Weight without cable | Approx. 10 g | ||
| Included accessories | Reflector : V-61, Mounting bracket : BEF-W100-B |
Reflector : V-61, Mounting bracket : BEF-W100-A |
|
* With V-61 reflector
• Specifications are subject to change without prior notice for product improvement purposes.

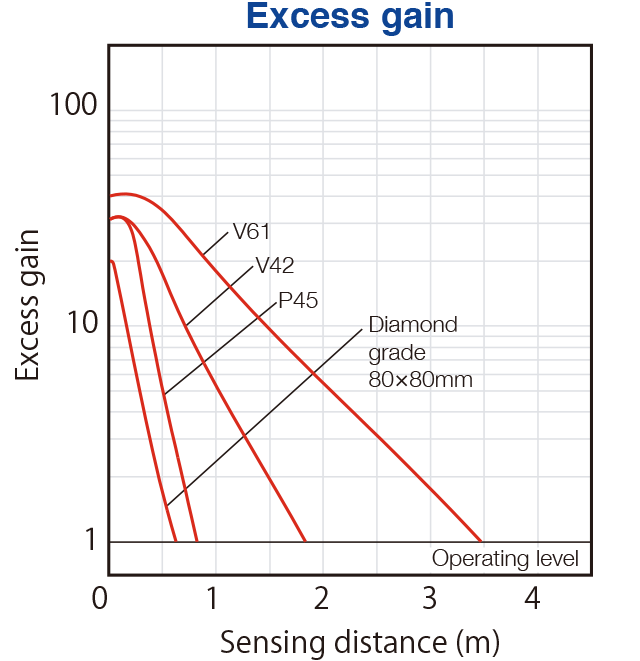

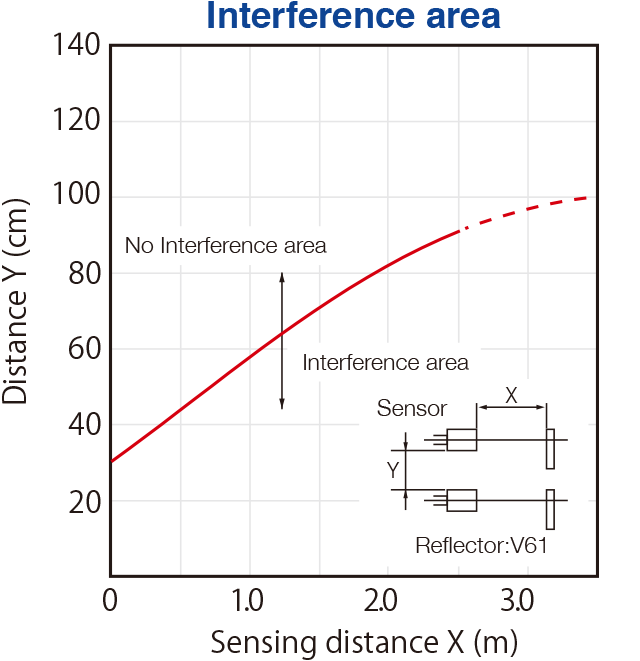

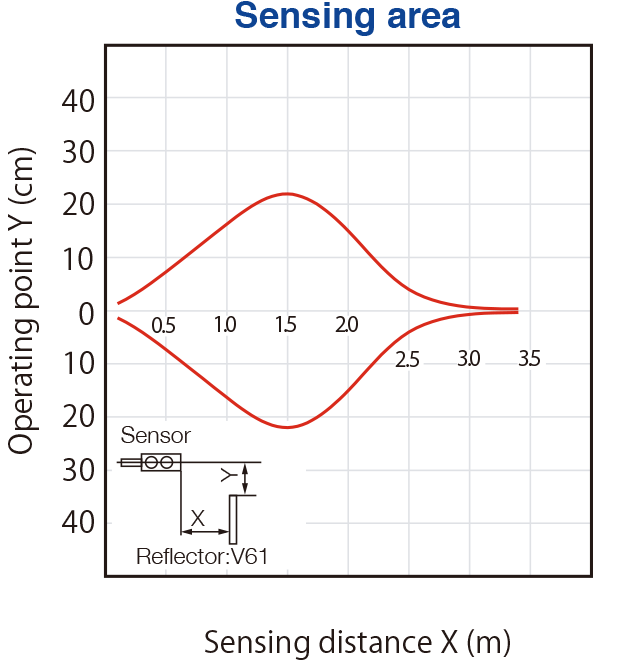

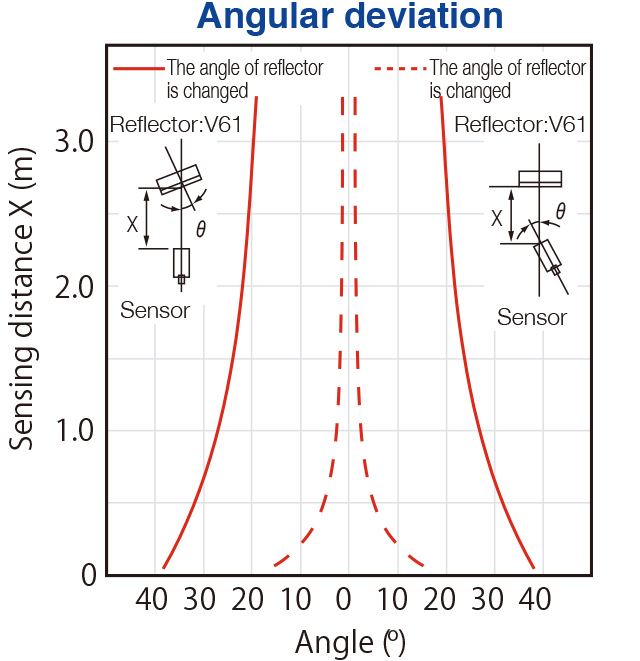

Typical characteristic data
ZR-X250
