Circuit Diagram

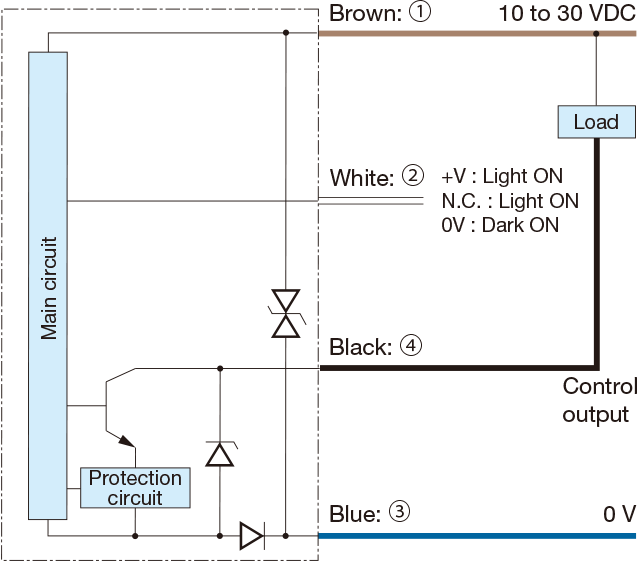

• NPN output type

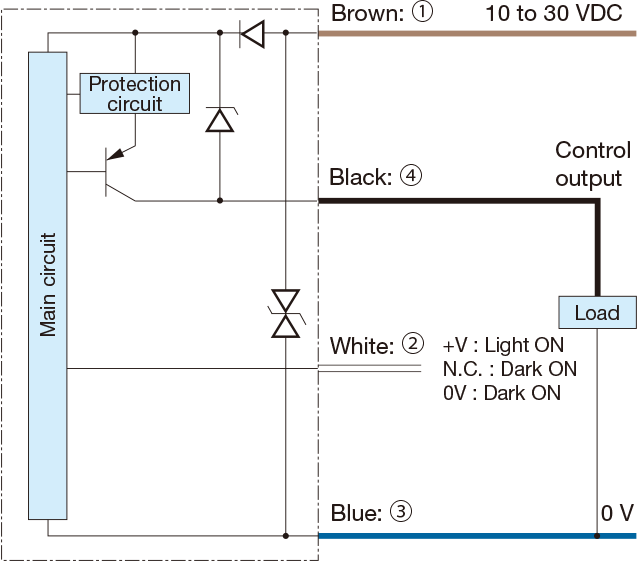

• PNP output type



• Through-beam type emitter

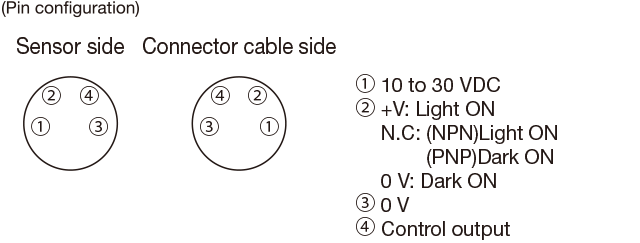

• Connector type



  Notes

  • When using a switching regulator for the power supply, be sure to ground the frame ground terminal.
  • Because wiring sensor wires with high-voltage wires or power supply wires can result in malfunctions due to noise, which can cause damage, make sure to wire separately.
  • Avoid using the transient state while the power is on (approx. 100 ms).

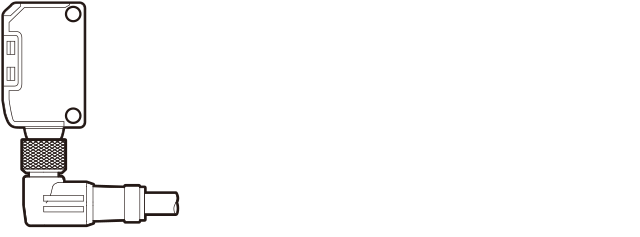

  • The connector direction is fixed as the drawing below when you use L-shaped connector cable. Be aware that rotation is not possible.



Operation mode
