Specifications
Technical Data
| Type | Through-beam type | Retro-reflective type | |||
|---|---|---|---|---|---|
| With polarizing filter | Without polarizing filter | ||||
| Standard | Plastic housing | 2 m Cable | C2TP-2000(N,P) | C2RP-F400(N,P) | C2RP-350(N,P) |
| M12 Connector | C2TP-2000C(N,P) | C2RP-F400C(N,P) | C2RP-350C(N,P) | ||
| Metal housing | 2 m Cable | C2TM-2000(N,P) | C2RM-F400(N,P) | C2RM-350(N,P) | |
| M12 Connector | C2TM-2000C(N,P) | C2RM-F400C(N,P) | C2RM-350C(N,P) | ||
| Angle (90 degree) |
Plastic housing | 2 m Cable | C2TP-S2000(N,P) | C2RP-SF400(N,P) | C2RP-S350(N,P) |
| M12 Connector | C2TP-S2000C(N,P) | C2RP-SF400C(N,P) | C2RP-S350C(N,P) | ||
| Metal housing | 2 m Cable | C2TM-S2000(N,P) | C2RM-SF400(N,P) | C2RM-S350(N,P) | |
| M12 Connector | C2TM-S2000C(N,P) | C2RM-SF400C(N,P) | C2RM-S350C(N,P) | ||
| Sensing distance* | 20 m | 0.01 to 4 m | 0.01 to 3.5 m | ||
| Spot size | ø1100 mm / 20 m | ø270 mm / 4 m | ø240 mm / 3.5 m | ||
| Light source | Red LED | infrared LED | |||
| Supply voltage | 10 to 30 VDC including ripple (P-P) 10% | ||||
| Current consumption | Emitter: 20 mA max. Receiver: 15 mA max. |
20 mA max. | |||
| Hysteresis | - | ||||
| Response time | 0.5 ms max. | ||||
| Control output | NPN/PNP Open Collector 100 mA max. / 30 VDC max. (Residual voltage max. 1.8 V / 100 mA max.) |
||||
| Output mode | Light ON / Dark ON selectable by control wire | ||||
| Distance adjustment | 1 turn potentiometer | ||||
| Indicator | Output indicator (Orange LED) / Stability indicator (Green LED) | ||||
| Ambient illuminance | Sunlight: 10,000 lux, Incandescent lamp: 3,000 lux max. | ||||
| Vibration resistance | 10 to 55 Hz double amplitude 1.5 mm 2 hours in each of the X, Y, and Z directions |
||||
| Shock resistance | 500 m/s2 (50G) 3 times in each of X,Y, and Z directions |
||||
| Ambient temperature | Operating temperature: -25 to +55℃ (no freezing) | ||||
| Storage temperature | Storage temperature: -30 to +70℃ | ||||
| Ambient humidity / Storage humidity |
Ambient humidity: 35 to 85%RH / Storage humidity: 35 to 95%RH | ||||
| Degree of protection / Materials |
IEC directive IP67 Plastic housing: PBT (glass included) / Metal housing: BSBM, Front Cover, Lens: PMMA |
||||
*・ Retro-reflective type: Reflector V-61
・ Diffuse-reflective type: White paper 90% 200 x 200 mm
・ Limited diffuse reflective type: White paper 90% 100 x 100 mm
| Type | Diffuse-reflective type | BGS | ||||
|---|---|---|---|---|---|---|
| Focused 110 mm type | 400 mm type | 800 mm type | ||||
| Standard | Plastic housing | 2 m Cable | C2DP-11(N,P) | C2DP-40(N,P) | C2DP-80(N,P) | BGS-CP30(N,P) |
| M12 Connector | C2DP-11C(N,P) | C2DP-40C(N,P) | C2DP-80C(N,P) | BGS-CP30C(N,P) | ||
| Metal housing | 2 m Cable | C2DM-11(N,P) | C2DM-40(N,P) | C2DM-80(N,P) | BGS-CM30(N,P) | |
| M12 Connector | C2DM-11C(N,P) | C2DM-40C(N,P) | C2DM-80C(N,P) | BGS-CM30C(N,P) | ||
| Angle (90 degree) |
Plastic housing | 2 m Cable | C2DP-S11(N,P) | C2DP-S40(N,P) | C2DP-S80(N,P) | - |
| M12 Connector | C2DP-S11C(N,P) | C2DP-S40C(N,P) | C2DP-S80C(N,P) | - | ||
| Metal housing | 2 m Cable | C2DM-S11(N,P) | C2DM-S40(N,P) | C2DM-S80(N,P) | - | |
| M12 Connector | C2DM-S11C(N,P) | C2DM-S40C(N,P) | C2DM-S80C(N,P) | - | ||
| Sensing distance | 110 mm* | 400 mm* | 800 mm* | 300 mm* | ||
| Spot size | ø8 mm / 110 mm | ø20 mm / 400 mm | ø30 mm / 800 mm | ø15 mm / 300 mm | ||
| Light source | Red LED | |||||
| Supply voltage | 10 to 30 VDC including ripple (P-P) 10% | |||||
| Current consumption | 20 mA max. | 35 mA max. | ||||
| Hysteresis | - | 10% max. | ||||
| Response time | 0.5 ms max. | 1 ms max. | ||||
| Control output | NPN/PNP Open Collector 100 mA max. / 30 VDC max. (Residual voltage max. 1.8 V / 100 mA max.) |
|||||
| Output mode | Light ON / Dark ON selectable by control wire | |||||
| Distance adjustment | 1 turn potentiometer | 4 turn pot. | ||||
| Indicator | Output indicator (Orange LED) / Stability indicator (Green LED) | |||||
| Ambient illuminance | Sunlight: 10,000 lux, Incandescent lamp: 3,000 lux max. | |||||
| Vibration resistance | 10 to 55 Hz double amplitude 1.5 mm 2 hours in each of the X, Y, and Z directions |
|||||
| Shock resistance | 500 m/s2 (50G) 3 times in each of X,Y, and Z directions |
|||||
| Ambient temperature | Operating temperature: -25 to +55℃ (no freezing) | |||||
| Storage temperature | Storage temperature: -30 to +70℃ | |||||
| Ambient humidity / Storage humidity |
Ambient humidity: 35 to 85%RH / Storage humidity: 35 to 95%RH | |||||
| Degree of protection / Materials |
IEC directive IP67 Plastic housing: PBT (glass included) / Metal housing: BSBM, Front Cover, Lens: PMMA |
|||||
- White Paper 90%
Typical characteristic data

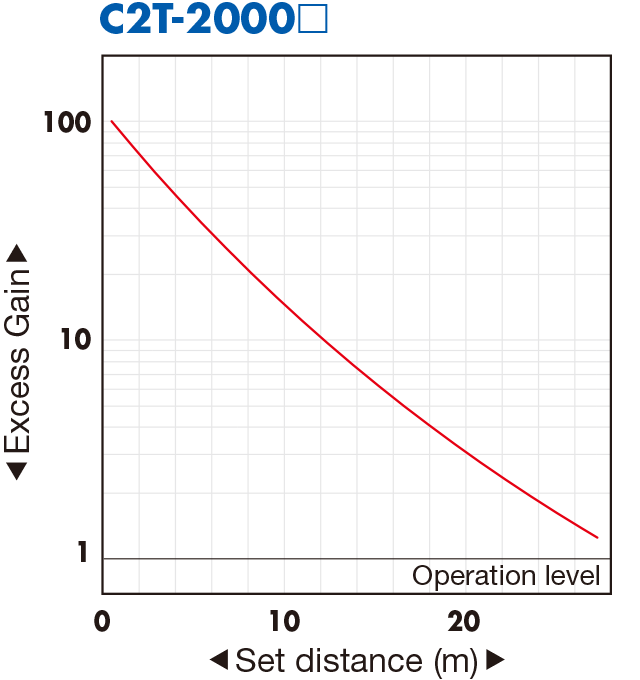

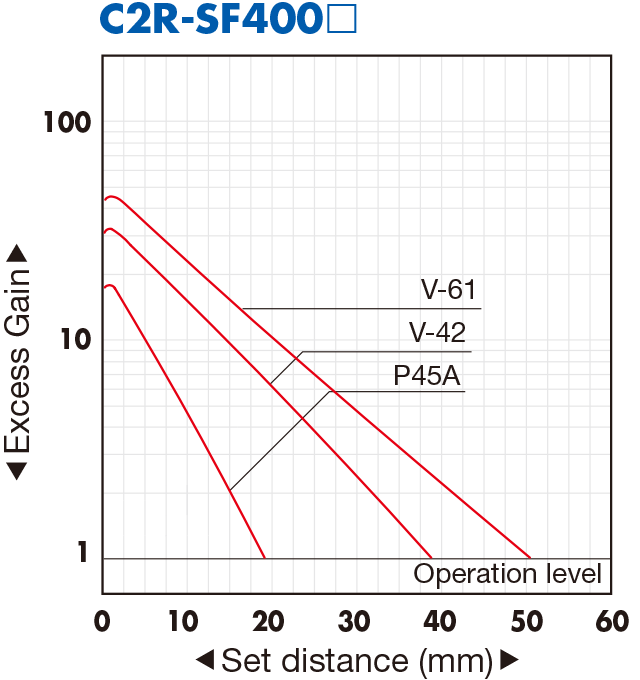

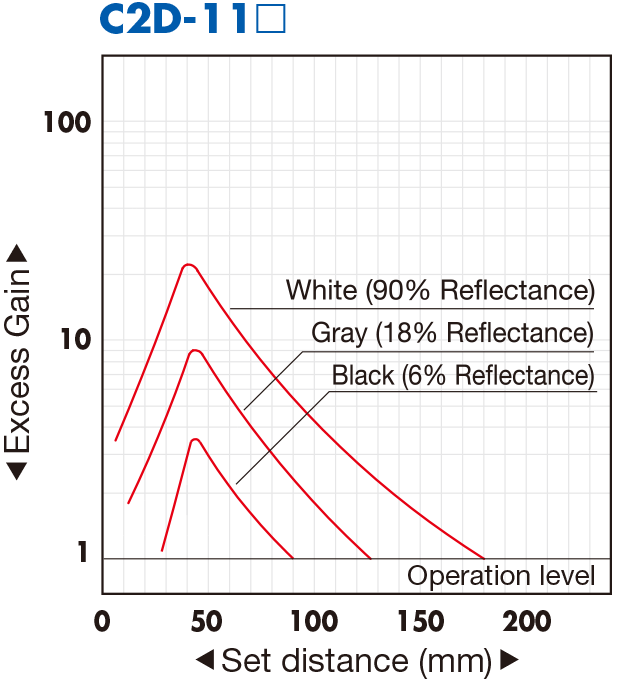

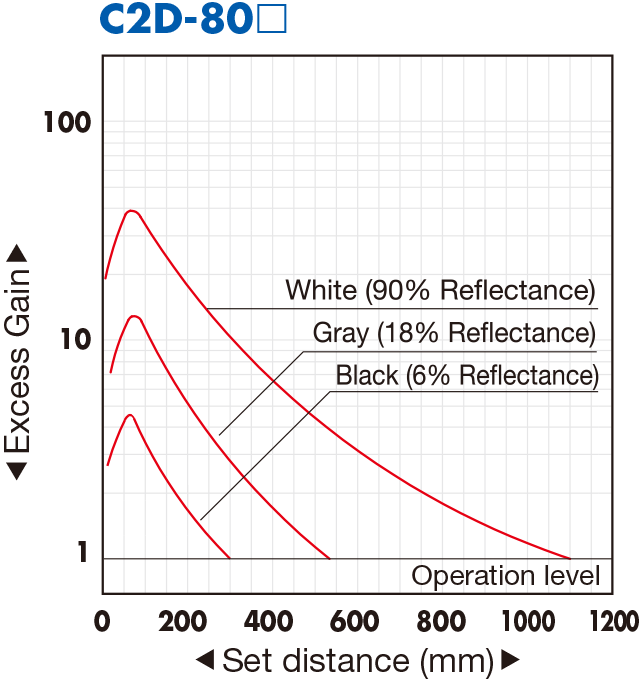

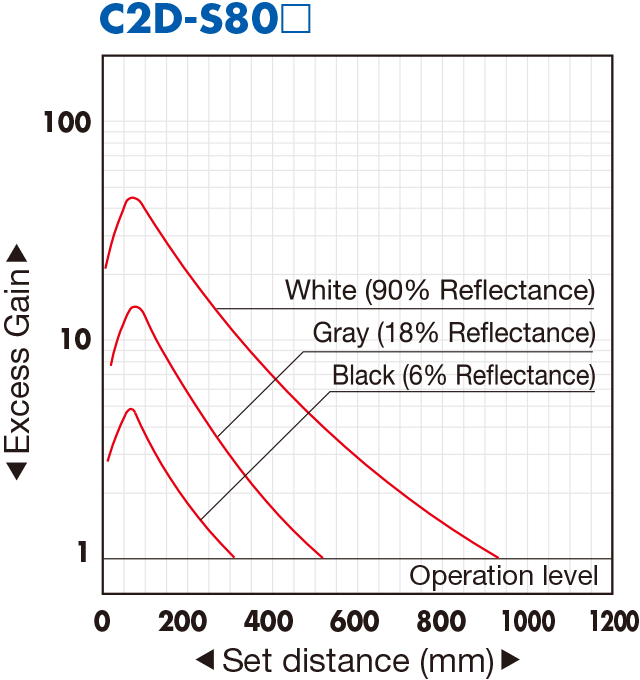

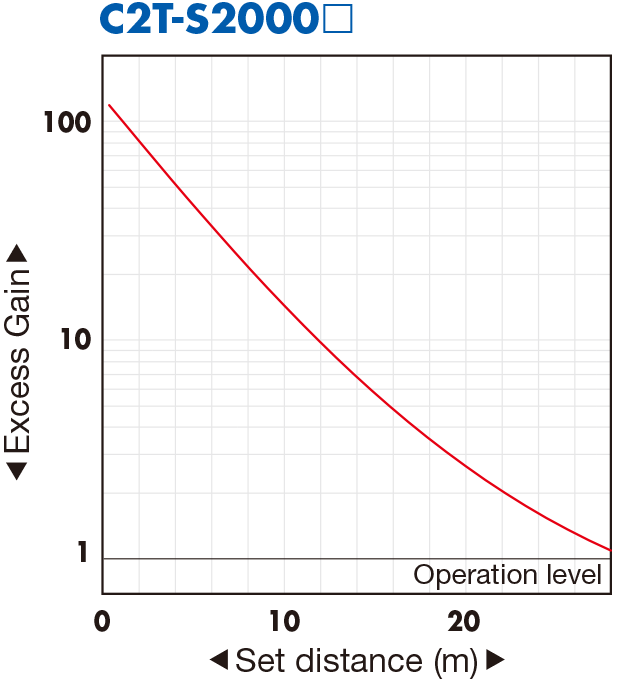

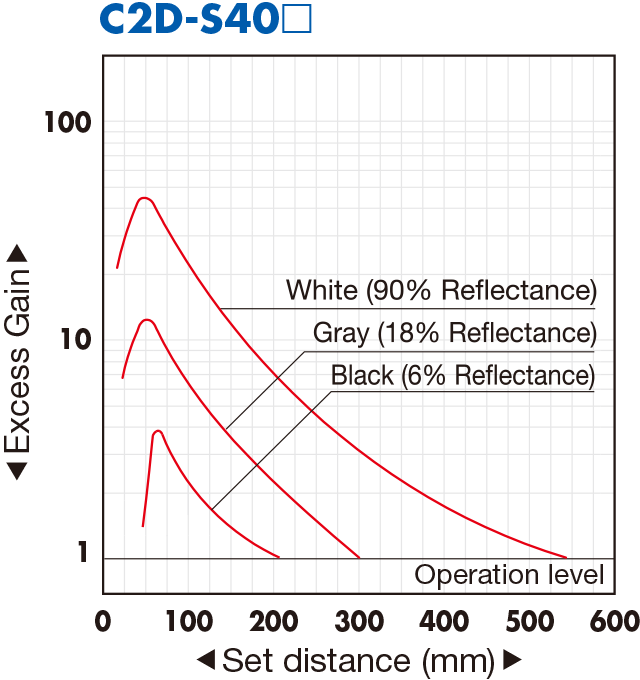

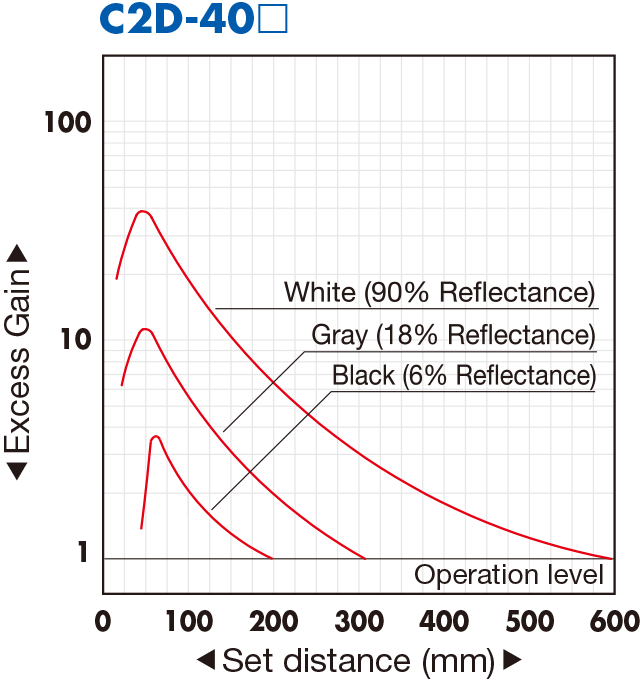

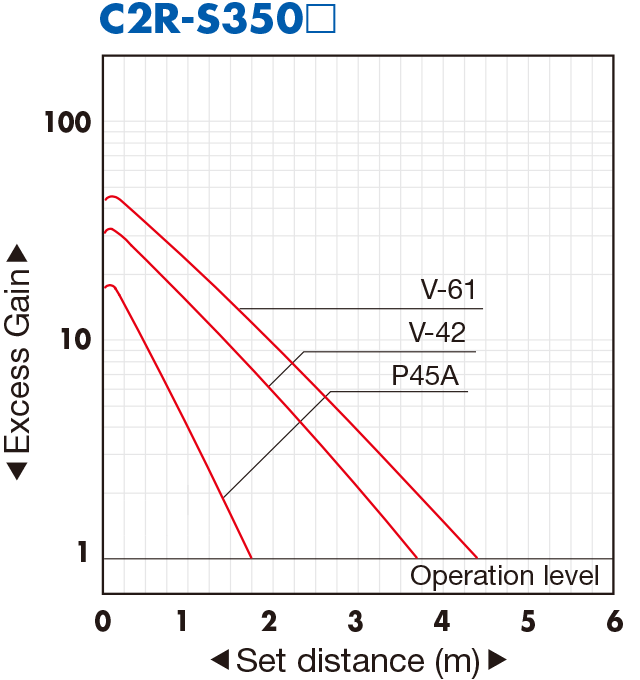

Excess gain *common between plastic / metal housing
Standard
Angle (90 degree)

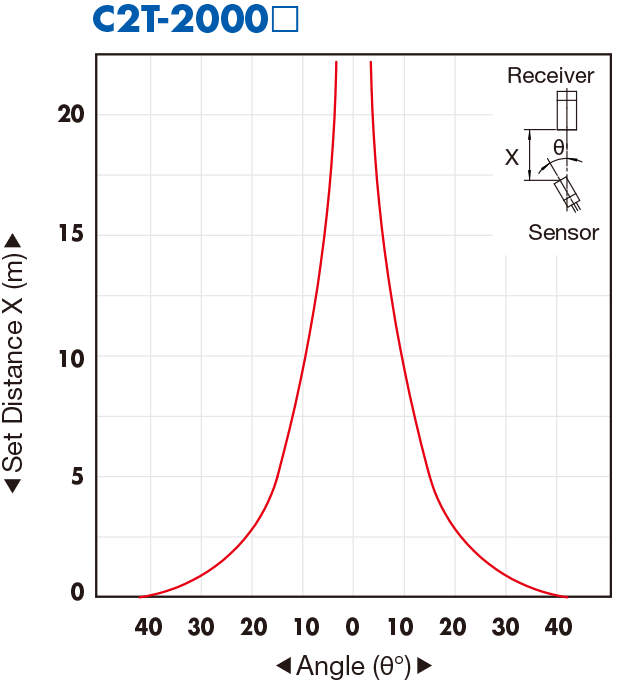

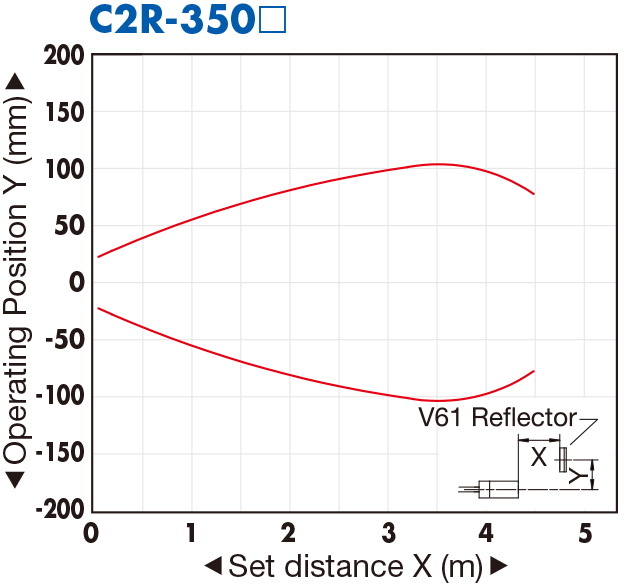

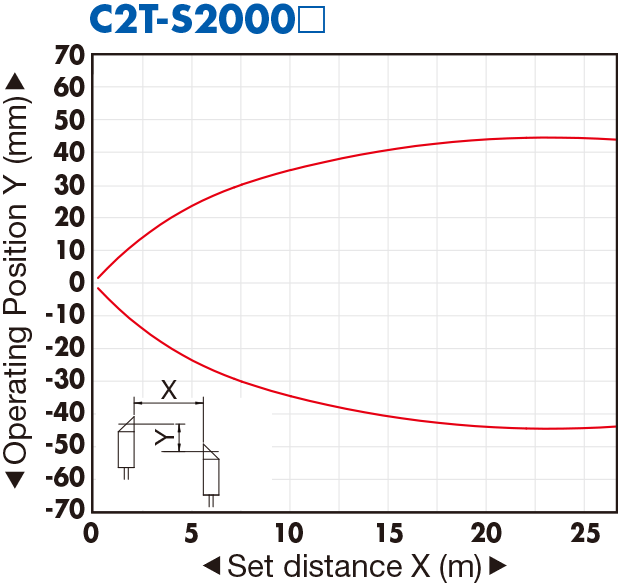

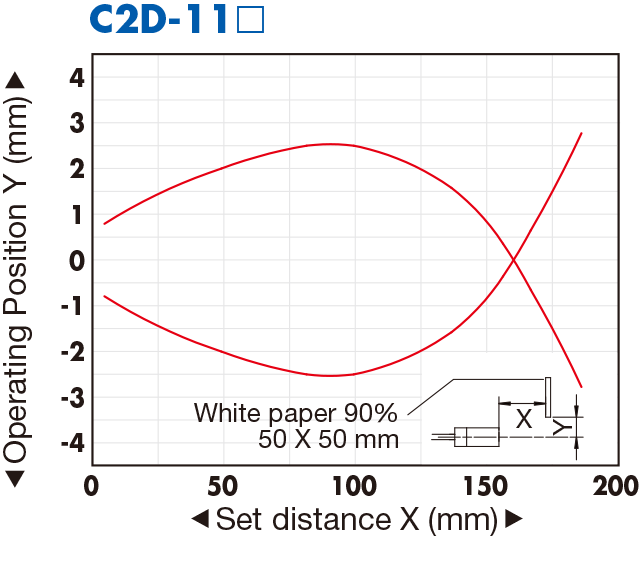

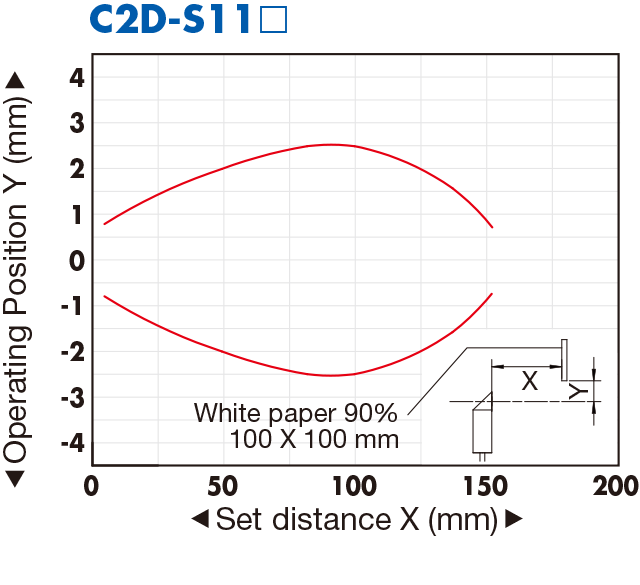

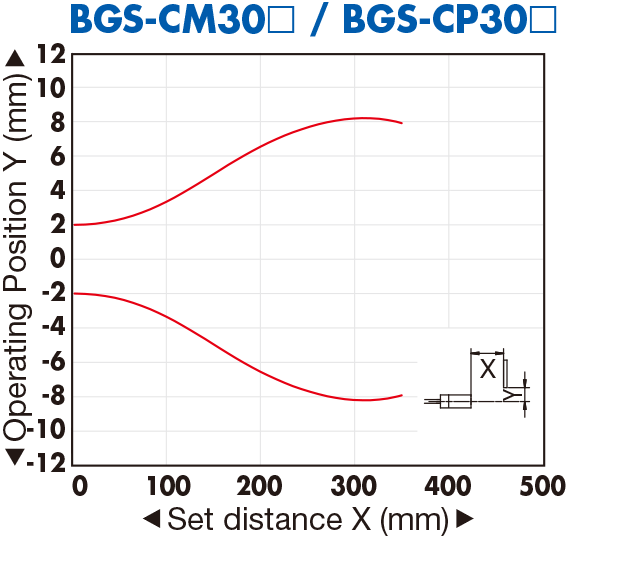

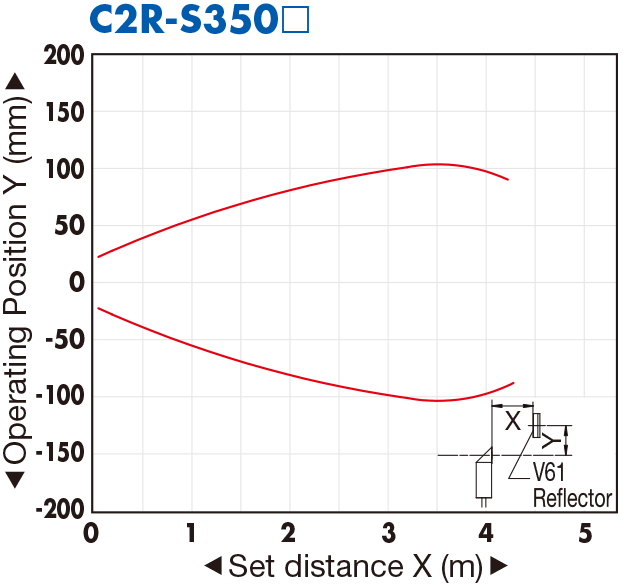

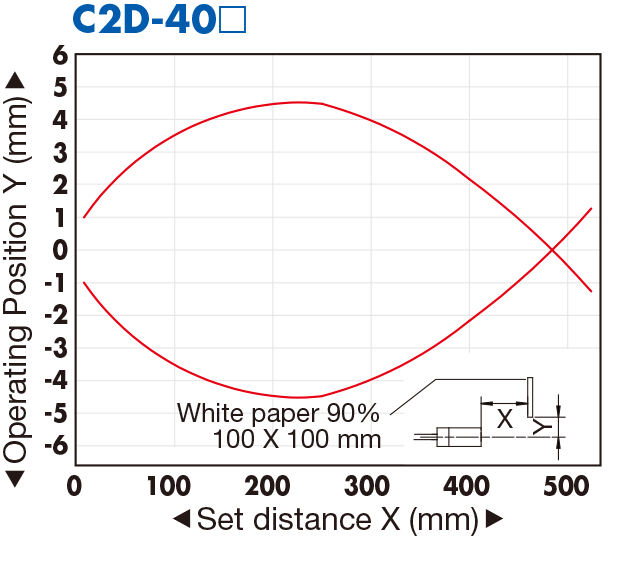

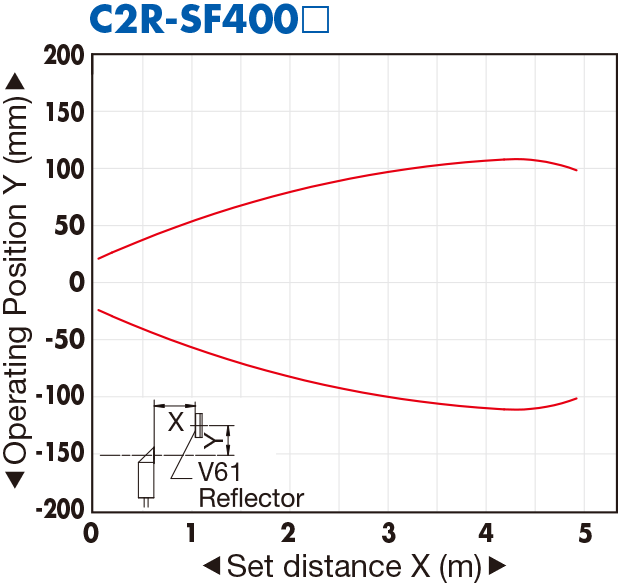

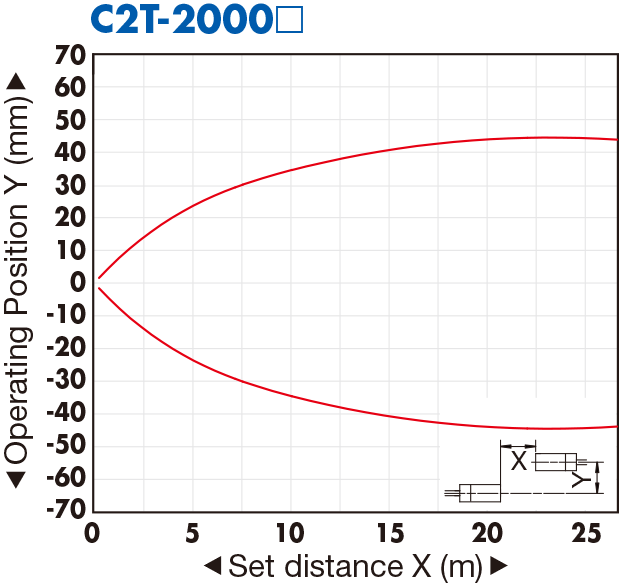

Sensing area *common between plastic / metal housing
Standard
Angle (90 degree)

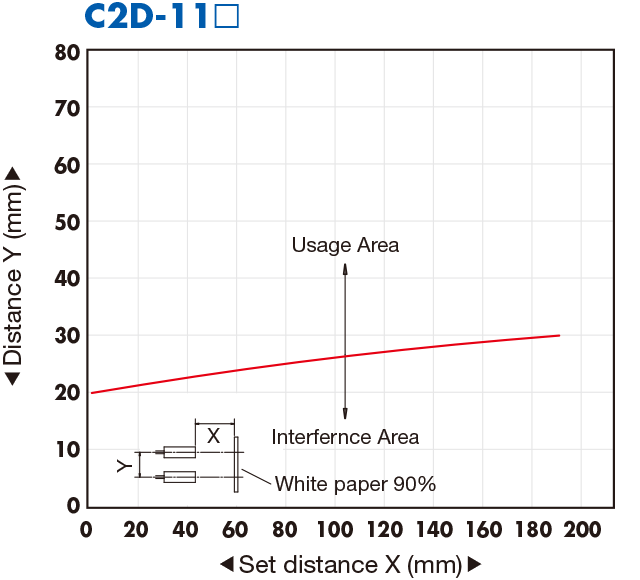

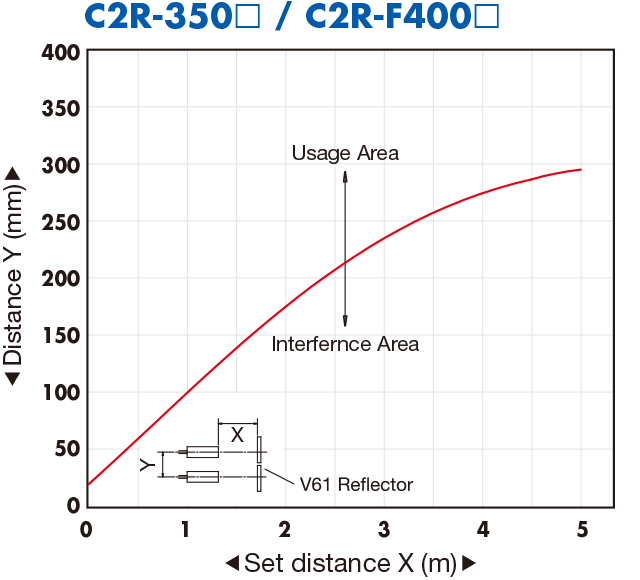

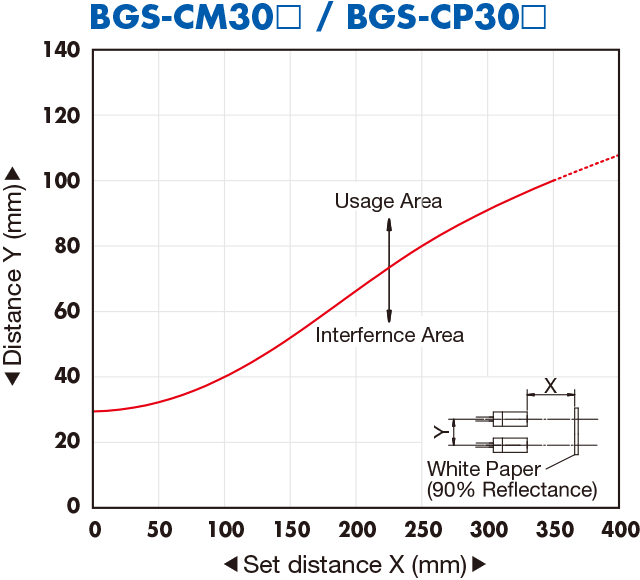

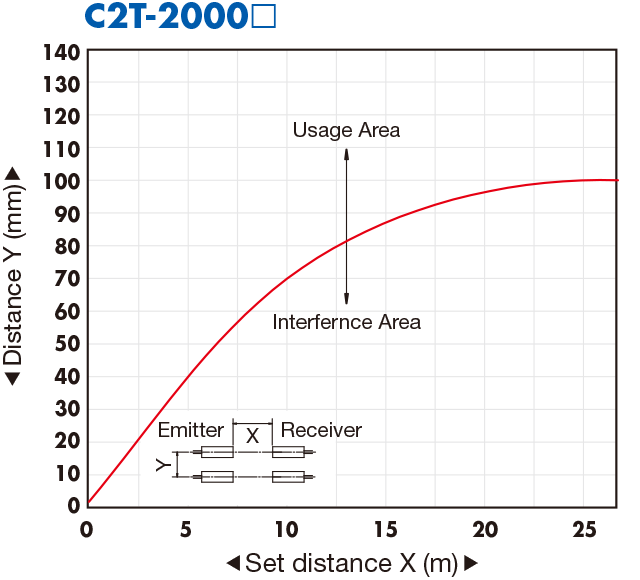

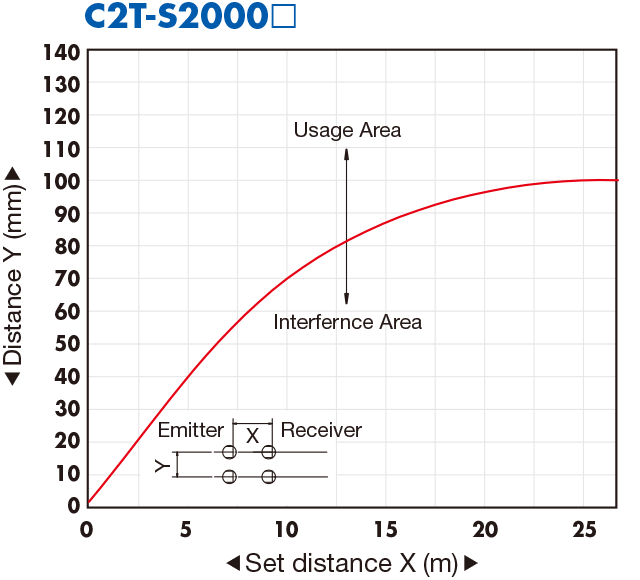

Interference area *common between plastic / metal housing
Standard
Angle (90 degree)

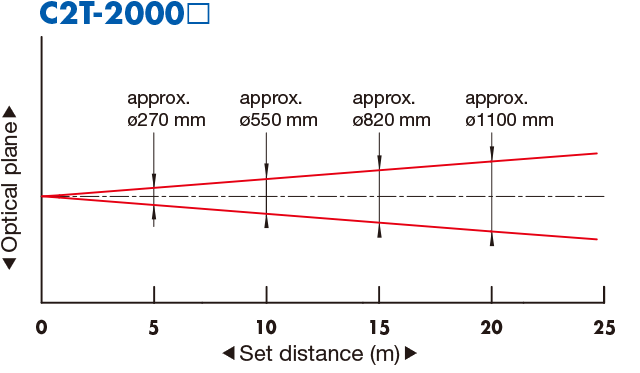

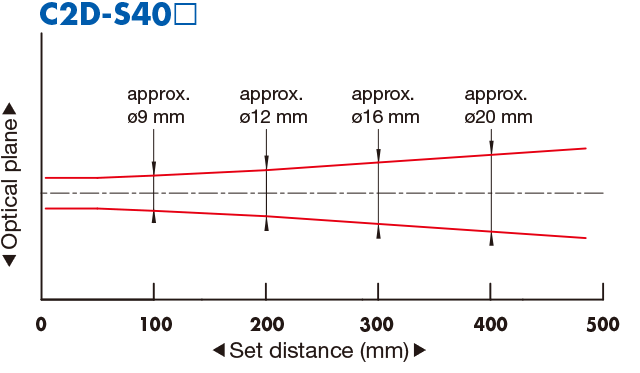

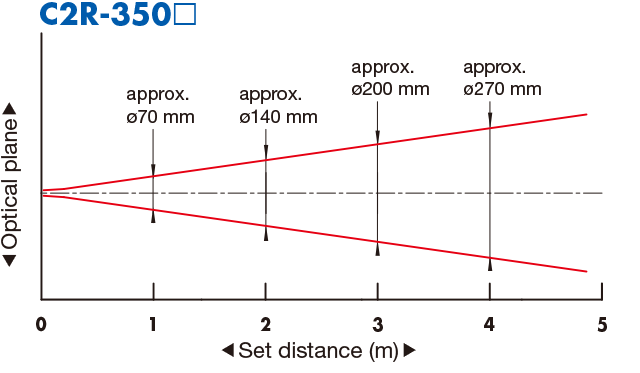

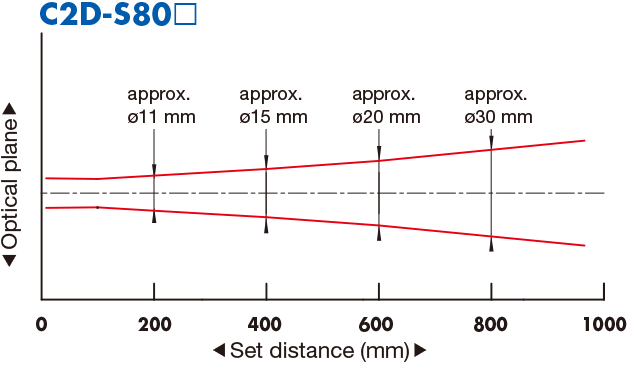

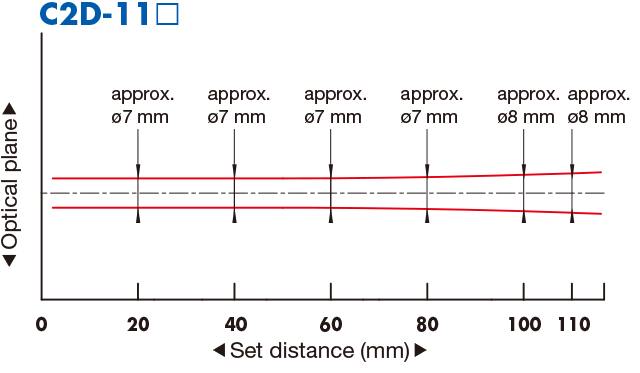

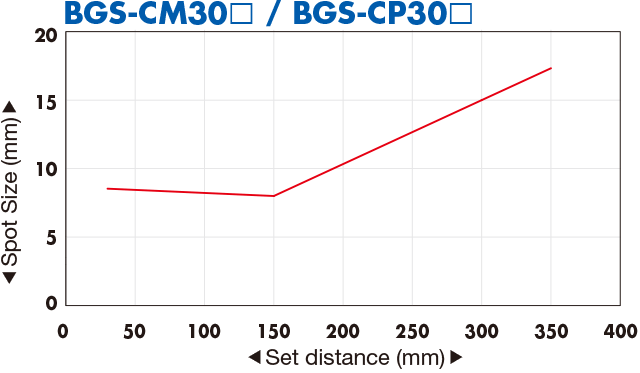

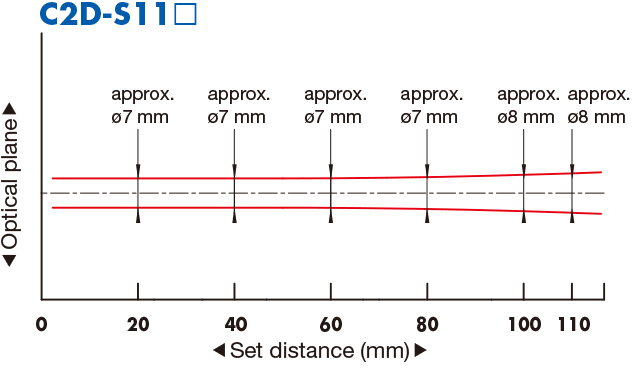

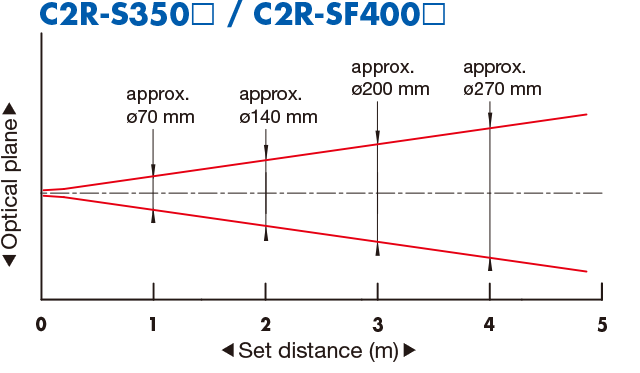

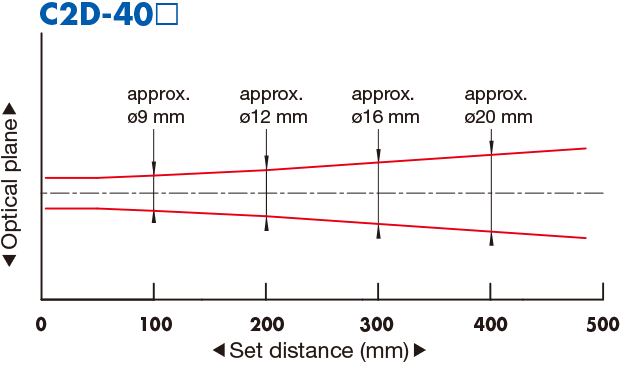

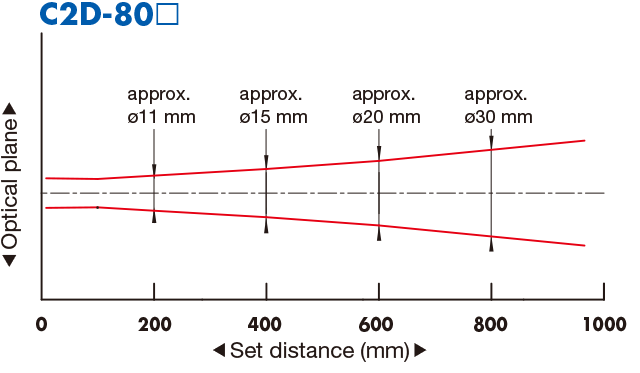

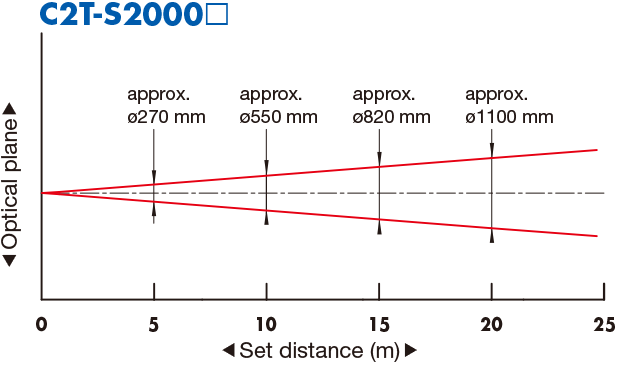

Spot size *common between plastic / metal housing
Standard
Angle (90 degree)

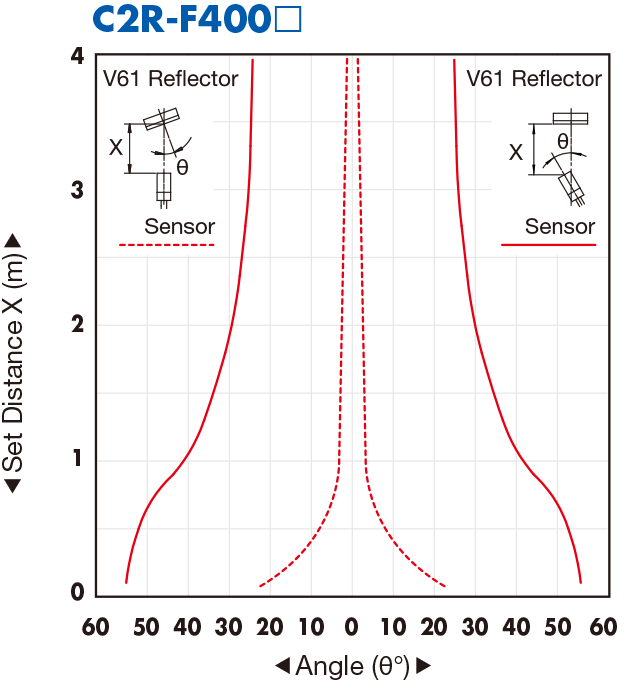

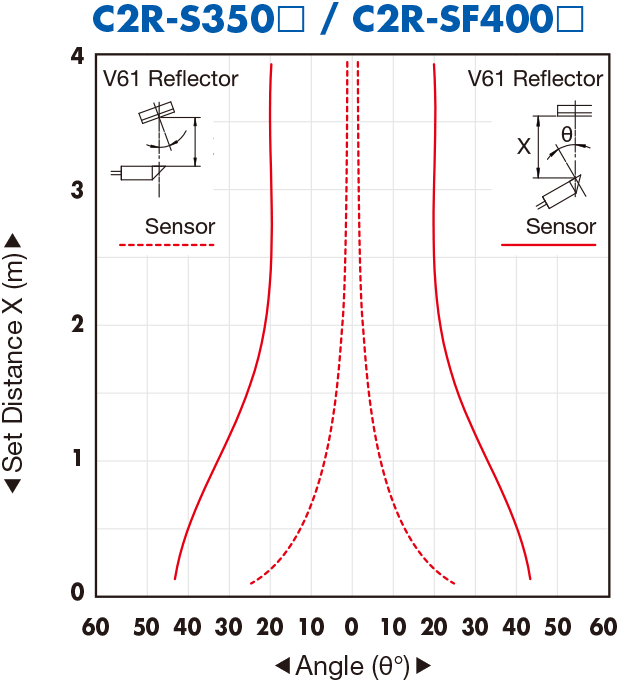

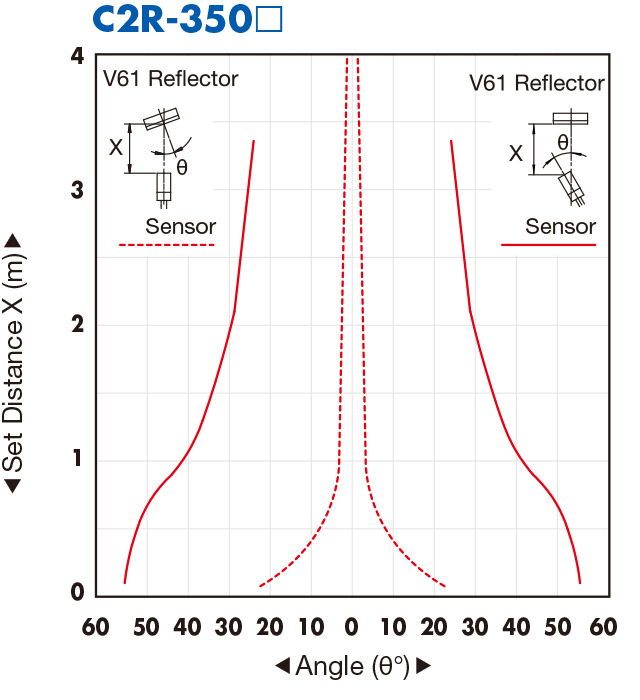

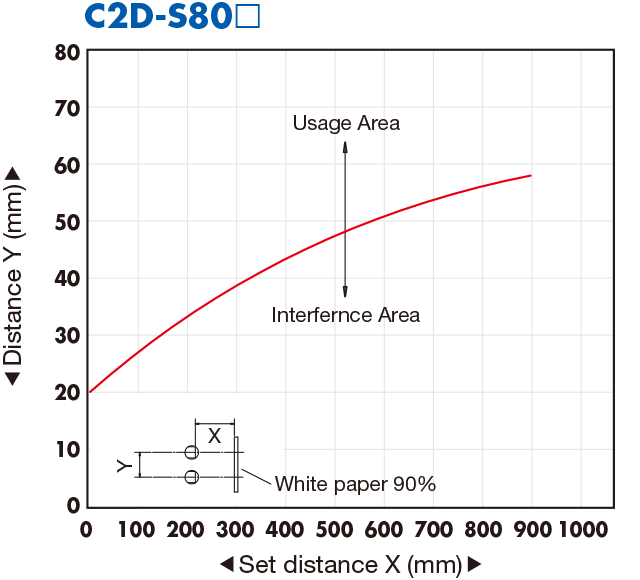

Angular deviation *common between plastic / metal housing
Standard
Angle (90 degree)
BGS Hysteresis
*common among all the BGS types
BGS Response *common among all the BGS types

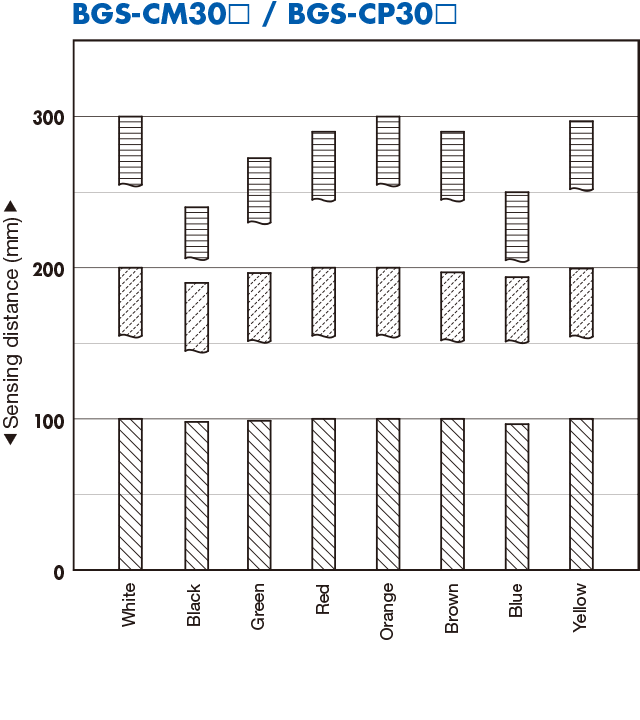

Color response

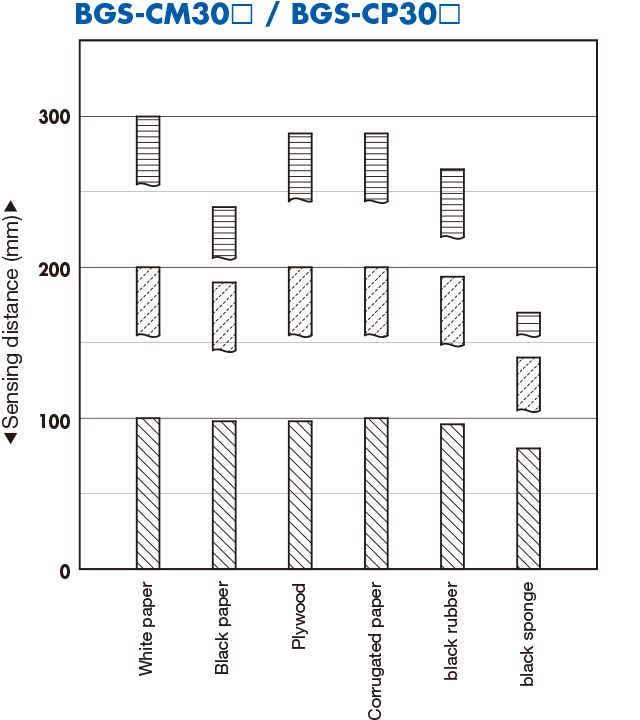

Material response
