Discontinued Products
- Some models in this product series have been discontinued.
- Discontinued Models
Specifications
Technical Data
| Type | BGS sensor | ||||
|---|---|---|---|---|---|
| Cable type | Connector type | ||||
| Model | NPN type | BGS-ZM10N | BGS-ZM30N | BGS-ZM10CN4 | BGS-ZM30CN4 |
| PNP type | BGS-ZM10P | BGS-ZM30P | BGS-ZM10CP4 | BGS-ZM30CP4 | |
| Sensing distance* | 10 to 100 mm | 10 to 300 mm | 10 to 100 mm | 10 to 300 mm | |
| Adjustable distance range* | 20 to 100 mm | 20 to 300 mm | 20 to 100 mm | 20 to 300 mm | |
| Light source | 4 element red LED | ||||
| Spot size (typical value) | Approx. ø6 mm (at a distance of 80 mm) |
Approx. ø19 mm (at a distance of 250 mm) |
Approx. ø6 mm (at a distance of 80 mm) |
Approx. ø19 mm (at a distance of 250 mm) |
|
| Response time | 500 μs or less | ||||
| Hysteresis (typical value) | 3% or less | 5% or less | 3% or less | 5% or less | |
| Distance adjustment | 8-turn endless potentiometer | ||||
| Indicators | Output indicator: orange LED, Stability indicator: green LED | ||||
| Control output | NPN/PNP type open collector Max. 100 mA/30 VDC | ||||
| Output mode | Light ON / Dark ON selectable | ||||
| Connection type | Cable type: Cable length: 2 m (ø4) | Connector type: M8, 4-pin | |||
| Rating | Supply voltage | 10 to 30 VDC, including 10% ripple (p-p) | |||
| Current consumption | 28 mA or less | ||||
| Applicable regulations | EMC directive (2004/108/EC) | ||||
| Applicable standards | EN 60947-5-2 | ||||
| Environmental resistance | Ambient temperature/humidity | -25 to +55℃ (no freezing) / 35 to 85% RH (no condensation) | |||
| Ambient illuminance | Sunlight: 10,000 lx Incandescent lamp: 3,000 lx or less | ||||
| Vibration resistance | 10 to 55 Hz; double amplitude 1.5 mm; 2 hours in each of the X, Y, and Z directions |
||||
| Shock resistance | Approx. 100 G (1000 m/s2); 3 times in each of the X, Y, and Z directions |
||||
| Degree of protection | IP67 DIN standard: IP69K |
IP67 Company standards: Oil resistance (JEM standard: Equivalent to IP67g) |
|||
| Material | Housing: SUS316L Top cover: PES Front window: PPSU Switch, potentiometer: PEEK Cable: PVC Gasket: FKM |
Housing: SUS316L Top cover: PES Front window: PPSU Switch, potentiometer: PEEK Gasket: FKM |
|||
| Weight without cable | Approx. 20 g | ||||
| Included accessories | Mounting bracket: BEF-W100-B | Mounting bracket: BEF-W100-A | |||
*Using a 100 mm ☓ 100 mm white sheet of paper.
• Specifications are subject to change without prior notice for product improvement purposes.
Typical characteristic data
BGS-ZM10☐

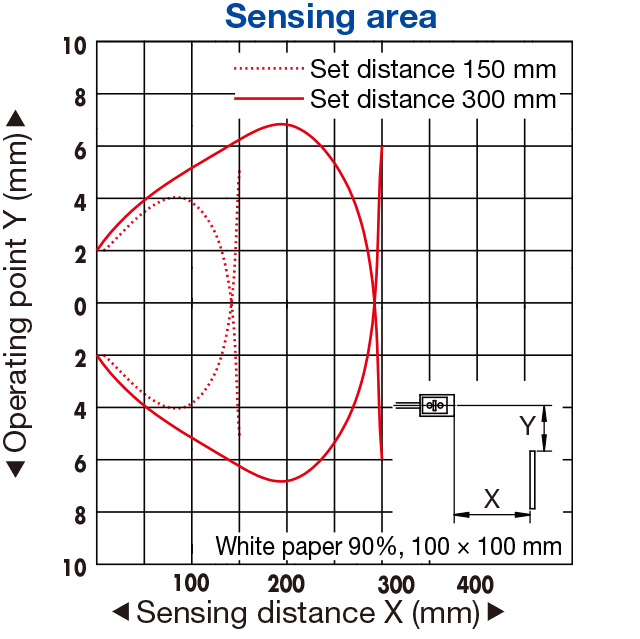

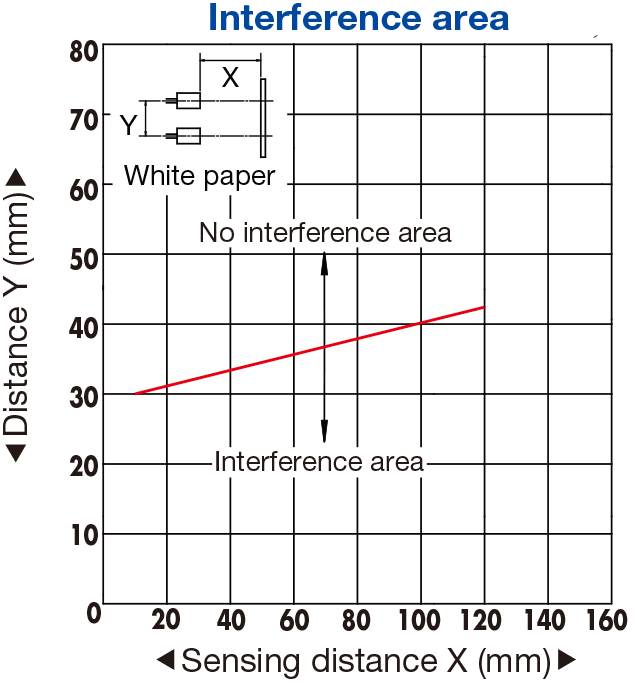

BGS-ZM30☐
