Discontinued Products
- This model has been discontinued.
For suitable alternatives, please feel free to contact us.
Specifications
Technical Data
| Model (NPN / PNP different model) |
BGS |
|---|---|
| 2 meter (approx. 78 inch) cable | BGS-Y8N / P |
| M8 QD | BGS-Y8CN / CP |
| M12 pig-tail | BGS-Y8N-M12 / P-M12 |
| Sensing distance | 200mm (7.9 inch) Setting range : 30-200mm |
| Light source | Red LED (visible) |
| Hysteresis | 5% |
| Response time | 0.5msec |
| LED Indicator | 3 Indicators (green indicator only :Emitter of YT-1180) Yellow: output Green: stable Red: alarm - overload |
| Operation mode | Light ON and Dark ON outputs provided |
| Sensitivity adjustment | 4 turn potentiometer |
| Control output | NPN or PNP open collector, 100mA max. / 30VDC |
| Vibration resistance | 10 to 55 Hz; double amplitude 1.5 mm; 2 hours in each of the X,Y, and Z directions |
| Shock resistance | Approximately 100 G (1000 m/s2), 3 times in each of the X, Y, and Z directions |
| Environmental illuminance | Sunlight : 10,000 lux, Incandescent lamp : 3,000 lux max |
| Ambient temp / humidity | -25℃ to 55℃ / 35 to 85% RH |
| Storage temp / humidity | -40℃ to 70℃ / 35 to 90 % RH |
| Supply voltage | 10 - 30VDC incl. 10% ripple |
| Power consumption | emitter : 15mA max. 30mA max. |
| Conformity | receiver : 20mA max. |
| CE , JIS/C4525 | |
| Circuit protection | Reverse polarity, transient voltages,Output overcurrent |
| Material | ABS with 20% glass (case), PMMA (lens) |
| Protection category | IEC 144, IP67 |

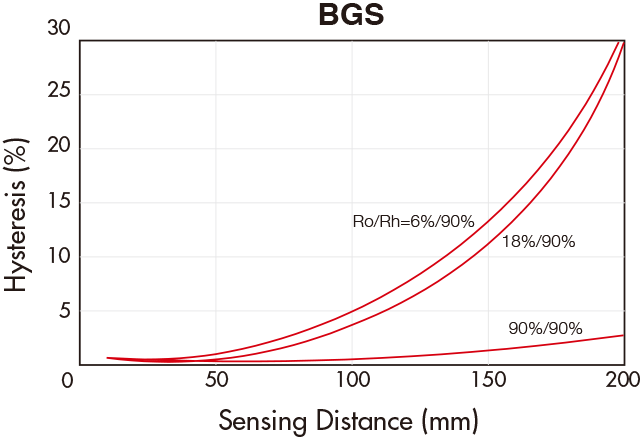

Reference
BGS
