Circuit Diagram
-
NPN output type (DC power type)
-
PNP output type (DC power type)
-

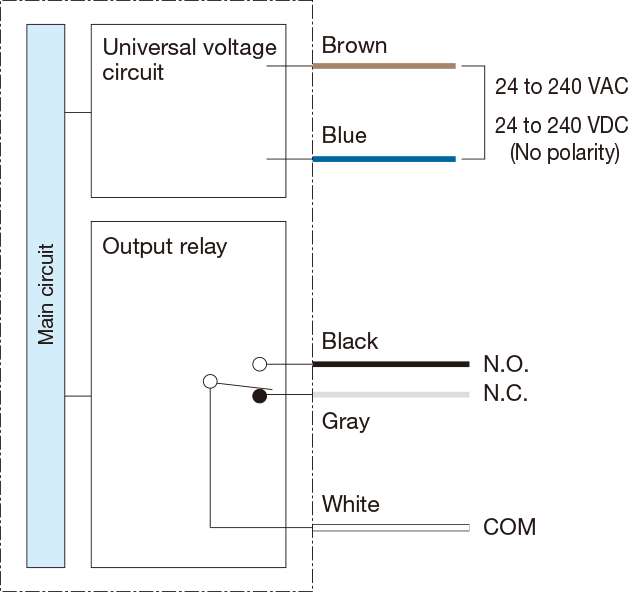

Universal voltage type
-
DC power connector type
-
Notes
- When using a switching regulator for the power supply, be sure to ground the frame ground terminal.
- Wiring sensor cables with high-voltage or power supply lines can result in malfunctions due to noise, which can cause damage, make sure to wire separately.
- Avoid using the transient state while the power is on (approx. 150 ms).
