Specifications
Technical Data
| Model | PT-S80(E) | PT-U80(E) (with USB output) | |
|---|---|---|---|
| Measurement range |
−30 to 600°C (−22 to 1112°F) | ||
| Field of view | 30 × 30 mm / 1000 mm (D : S = 33 : 1) | ||
| Optics | Si lens | ||
| Sensing element | Thermopile | ||
| Measurement spectral response |
8 to 14 μm | ||
| Response time | 0.5 sec./90% response | ||
| Accuracy*1 (ε≈0.95) | −30.0 to 0°C (−22 to 32°F): ±3°C (5.4°F), 0.1 to 200°C (32.2 to 392°F): ±2°C (3.6°F), 201 to 600°C (393.8 to 1112°F): ±1% of reading value |
||
| Repeatability | ±1°C (1.8°F) | ||
| Display resolution | −30.0 to 199.9°C (−22 to 391.8°F): 0.1°C (0.1°F) , 200 to 600°C (392 to 1112°F): 1°C (1°F) |
||
| Sighting function | Coaxial laser pointer Class 2 (IEC / JIS / FDA*2) | ||
| HOLD time | 15 seconds | ||
| Continuous measurement switching |
- | ON/OFF switchable | |
| USB output | - | Yes | |
| Data recording | Single-entry memory | 35-entry memory (150 entries max.) |
|
| Backlight | EL backlight with illuminance sensor | ||
| Upper/lower temperature limit alarm |
Alarm LED and buzzer, ON/OFF switchable | ||
| Emissivity (ε) adjustment |
0.95/0.85/0.70 (switchable) |
Variable emissivity (0.3 to 1.20, 0.01 per step) |
|
| Display function | NOR/MAX/MIN | ||
| Power supply | AA alkaline battery ×2 | ||
| Battery life | Approx. 15 continuous hours (at max. load) | ||
| Ambient temperature |
0 to 50°C (32 to 122°F) | ||
| Ambient humidity | 35 to 85% RH (no condensation) | ||
| Storage temperature/ humidity |
–10 to 60°C (14 to 140°F)/35 to 85% RH | ||
| Material | ABS/TEEE | ||
| Dimensions | H × W × D = 182 mm × 56 mm × 38 mm | ||
| Applicable regulations |
EMC | EMC Directive (2014 / 30 / EU) | |
| Environment | RoHS Directive (2011 / 65 / EU), China RoHS (MIIT Order No.32) | ||
| Safety | FDA Regulations (21 CFR 1040.10 and 1040.11) (except for deviations pursuant to Laser Notice No.56) |
||
| Applicable standards | EN 60825-1 | ||
| Weight | Approx. 250 g (including batteries) | ||
| Standard included accessories |
Instruction manual, Dedicated carrying case, USB cable (PT-U80 only) |
||
*1 The measurement accuracy in the specification is limited to the calibration conditions of our factory.
*2 This product is classified as Class 2 by IEC 60825-1: 2014 according to Laser Notice No.56, FDA Guidance Document.
・The dedicated PT-U80 software is available for free download.
・Peripheral devices connected to the PC may prevent correct operation.
・Note that specifications are subject to change without prior notice for product improvement purposes.

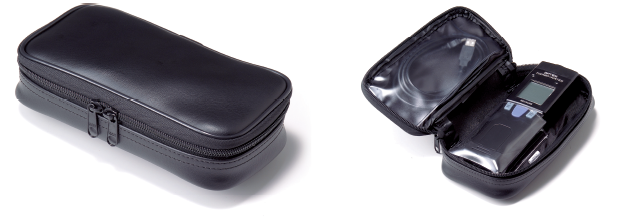

Storage case (Included accessory)

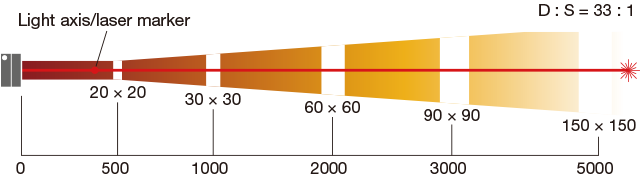

Field of view
(Unit: mm)
