Circuit Diagram

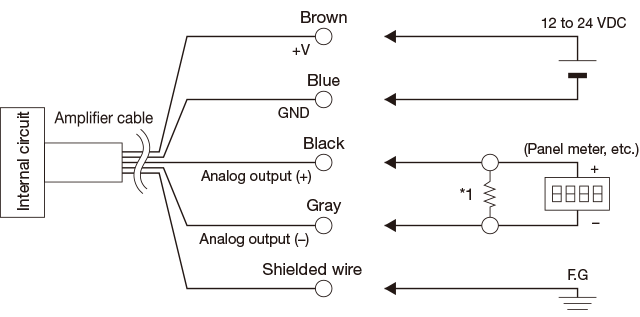

Connection diagram

•

  *1 Load resistance: 250 Ω or less (BS-02TA only)

• Notes regarding connections

  1. Use a power supply within the rated range, and pay careful attention to polarity.
  2. For the meter and other products when connecting analog output for a voltage output type (BS-30TV/BS-05TV), use products with a power impedance of 100 kΩ or more.
  3. When connecting analog output from a current output type (BS-30TA/BS-05TA) to a meter or other product, connect with a load resistance of 250 Ω or less (*1).
  4. Do not connect the analog output (–) to GND or the like. Doing so will result in an error.
  5. Do not short-circuit the analog output (+).
  6. Using the same piping for parallel wiring with wiring input/ output lines, power lines, or high-voltage lines may cause malfunctions due to EMI noise. Use shielded wire or a separate metal conduit.
