Dimensions
Unit: mm
Amplifier unit
-

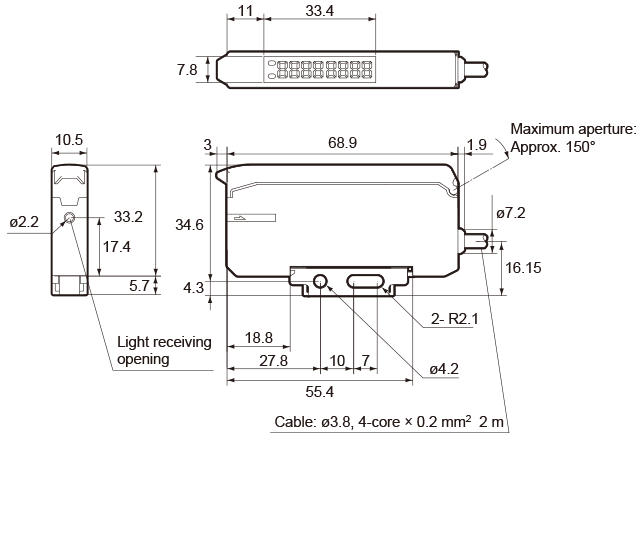

Stand-alone MDF-TN / MDF-HTN
-

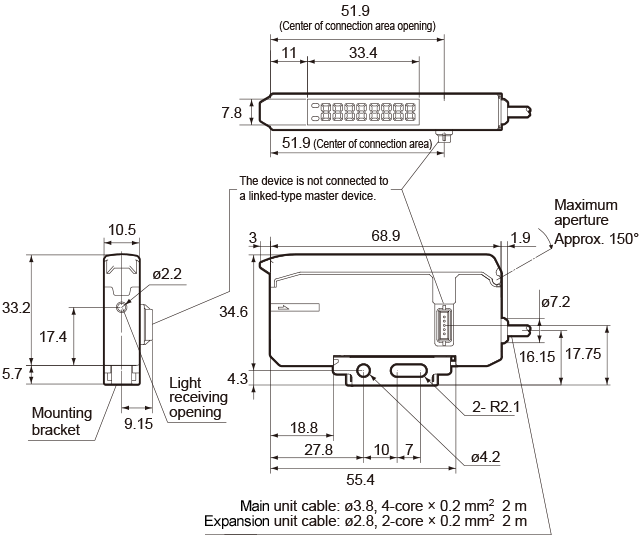

Inter-connection type MDF-TMN / MDF-TSN
Fiber-Optic Cables
-

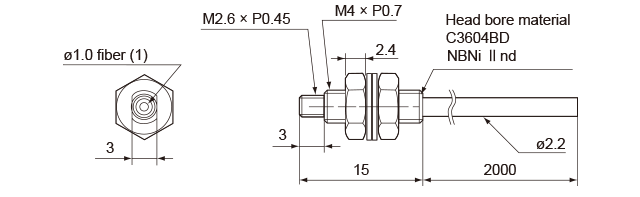

M4 screw NF-MT77
-
NF-MTA02 side-view lens Receiving angle: ±10°
-
φ3 cylinder NF-MT05
