Specifications
Technical Data
| Model | OPPD-30E |
|---|---|
| Power supply voltage | 24 VDC ±10% |
| Current consumption | Max. 1.3 A |
| Illumination output | 2 ch |
| Connectable lighting | Max. 30 W (total for 2 channels) |
| Illumination output voltage | PWM mode: 12 VDC |
| Illumination output current | Max. 2.5 A (total for 2 channels) |
| Dimming method | PWM dimming, Frequency: 50/100/99/98/97 kHz |
| Monitoring | Lighting brightness monitor / Lighting internal temperature monitor, Monitor brightness alarm upper/ lower limit value setting |
| Feedback | PWM correction method |
| Input | External illumination control × 2 ON voltage: 12 V or more, OFF voltage: 2 V or less, Max. input voltage: 30 V Input response time (actual value) With 24 V input (OFF→ON: 5 μs), (ON→OFF: 50 μs) With 12 V input (OFF→ON: 8 μs), (ON→OFF: 45 μs) Input resistance: 3.9 kΩ, insulated |
| Communication interface | Ethernet 10BASE-T/100BASE-TX, AutoMDI-X |
| Communication protocol | UDP/IP, DHCP, iQSS |
| Communication response speed | From command reception to response completion: 6 ms (typ.) |
| Protective functions | Overcurrent, power supply internal temperature monitoring (PWM output cut to 1/4 at 105°C) |
| Applicable regulations | EMC (2014/30/EU) / RoHS (2011/65/EU, directive 32) |
| Applicable standards | EN 61326-1: 2013, EN 55011: 2009 / A1: 2010 Group 1, Class A |
| Protection rating | IP30 (IEC 60529: 1989 / A1: 1999 + A2: 2013) |
| Ambient temperature/humidity | 0 to 40°C / 35 to 85% RH (no condensation) |
| Storage temperature/humidity | -20 to 70°C / 35 to 95% RH (no condensation) |
| Vibration resistance | 10 to 55 Hz; amplitude: 1.5 mm; 2 hours in each of the X, Y, and Z directions |
| Shock resistance | Approximately 10 G, 3 times in each of the X, Y, and Z directions |
| Insulation resistance | 500 VDC, 10 MΩ or more |
| Material | Housing: Polycarbonate and aluminum |
| Weight | 150 g |
| Accessories | Terminal block × 1 |
| Options | Panel mounting bracket, Panel stand |

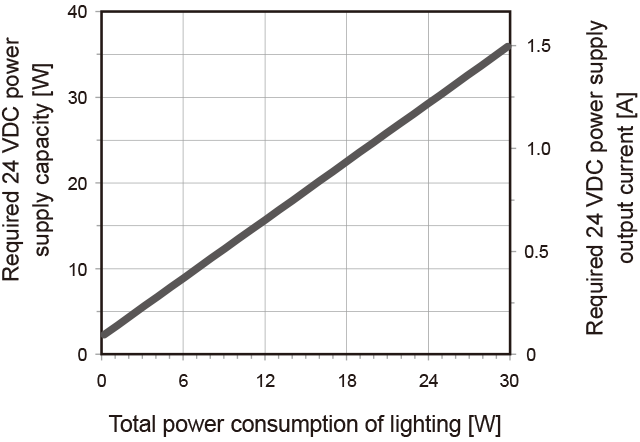

Required 24 VDC power supply capacity to handle power consumption of lighting
-
Based on the total power consumption of the LED lighting to be connected, select a 24 VDC power source that offers more than the required capacity
Note:
When using in conjunction with other equipment, the characteristics of the other equipment will affect the power supply, so be sure to choose a power supply that has a sufficient margin (about twice as much) as that shown in the table. -
