Circuit Diagram
-

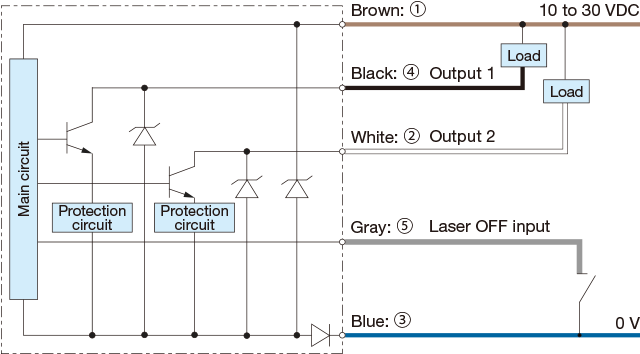

NPN output type
-

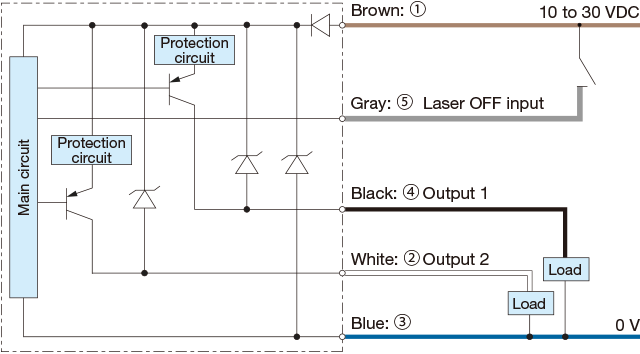

PNP output type
-

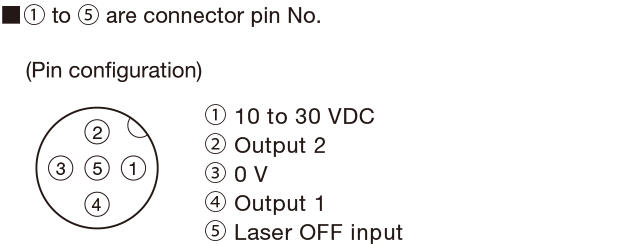

Connector type
-
Notes
- When using a switching regulator for the power supply, be sure to ground the frame ground terminal.
- Because wiring sensor wires with high-voltage wires or power supply wires can result in malfunctions due to noise, which can cause damage, make sure to wire separately.
- Avoid using the transient state while the power is on (approx. 800 ms).
