Discontinued Products
- This model has been discontinued.
For suitable alternatives, please feel free to contact us.
- Recommended Alternatives

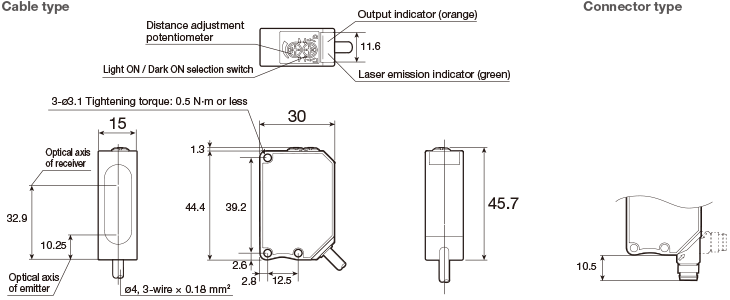

Dimensions
Unit: mm
Sensor

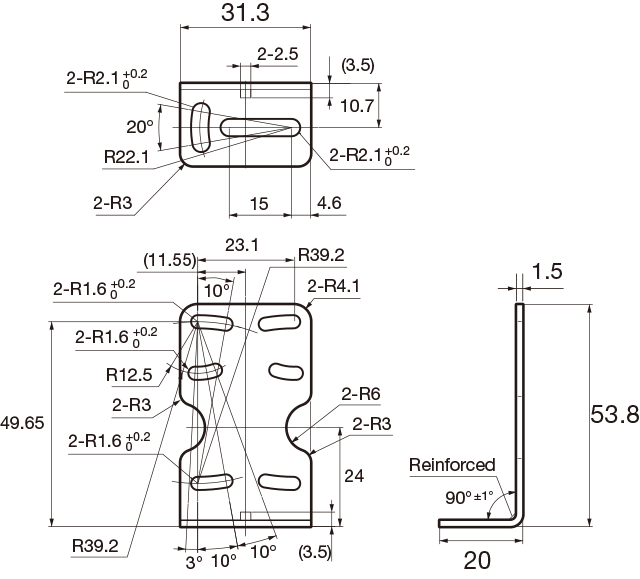

Mounting bracket
-
BEF-WK-190 (included)

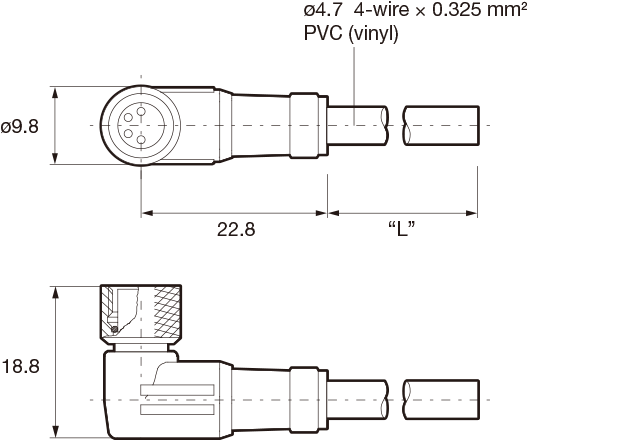

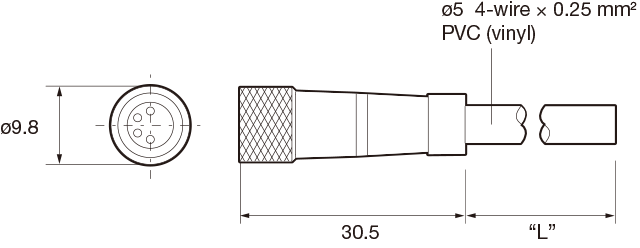

Connector cable (optional)
-
JCN-S, JCN-5S, JCN-10S
-
JCN-L, JCN-5L, JCN-10L

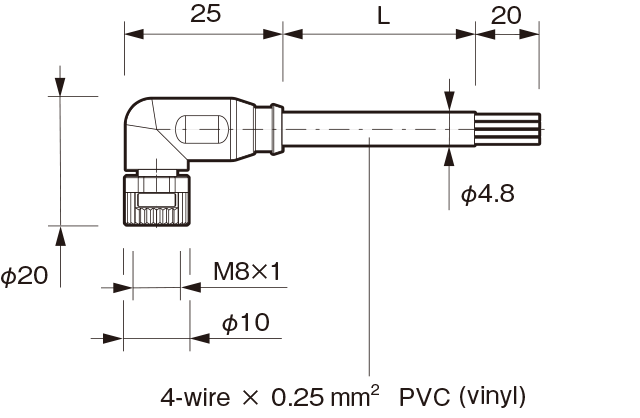

Successor models
-
M84CN-2S, M84CN-5S, M84CN-10S
-
M84CN-2L, M84CN-5L, M84CN-10L
Notes for sensor usage
-
This product emits a Class 2 (II) visible laser beam that is compliant with JIS C6802/IEC/FDA laser safety standards. Warning and explanation labels are affixed to the sides of the sensor.
-
