Circuit Diagram

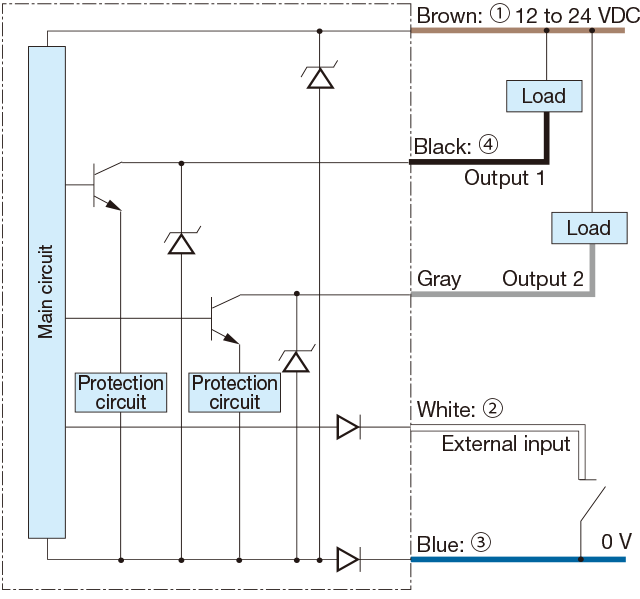

• NPN output type

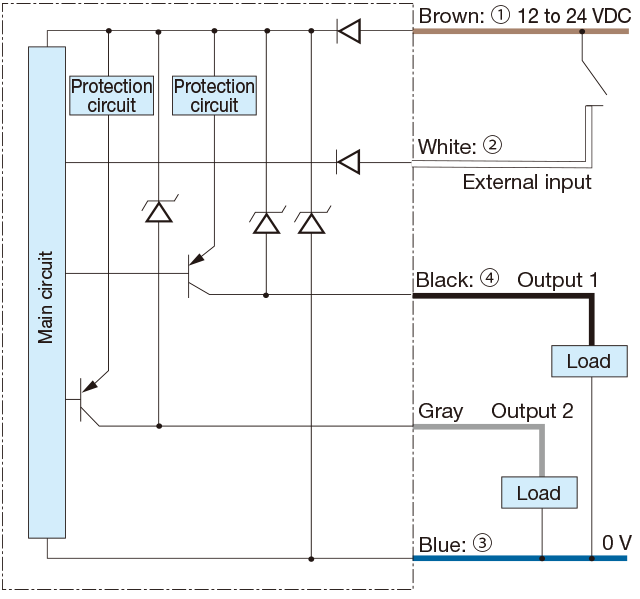

• PNP output type



・Control output 2 (gray) is equipped only for dual-output types. In addition, power supply wires (brown/blue) are not equipped for inter-connection slave units.

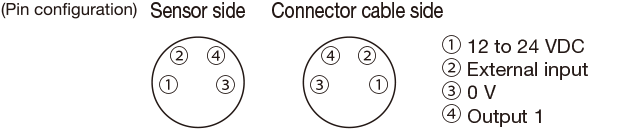

• Connector type



  Connecting

  • When not used for control output 2 or external input, cut the lead wire and wrap it individually with insulating tape, and do not connect it to any other terminal.
  • 1 to 4 correspond to connector pin No.

• Notes

  • When using a switching regulator for the power supply, be sure to ground the frame ground terminal.
  • Because wiring sensor wires with high-voltage wires or power supply wires can result in malfunctions due to noise, which can cause damage, make sure to wire separately.
  • Avoid using the transient state while the power is on (approx. 300 ms).
  • The connector direction is set as in the diagram below when using the L-shaped connector cable. Be aware that rotation is not possible.
