NF Series Wide beam type

NF-TZ10

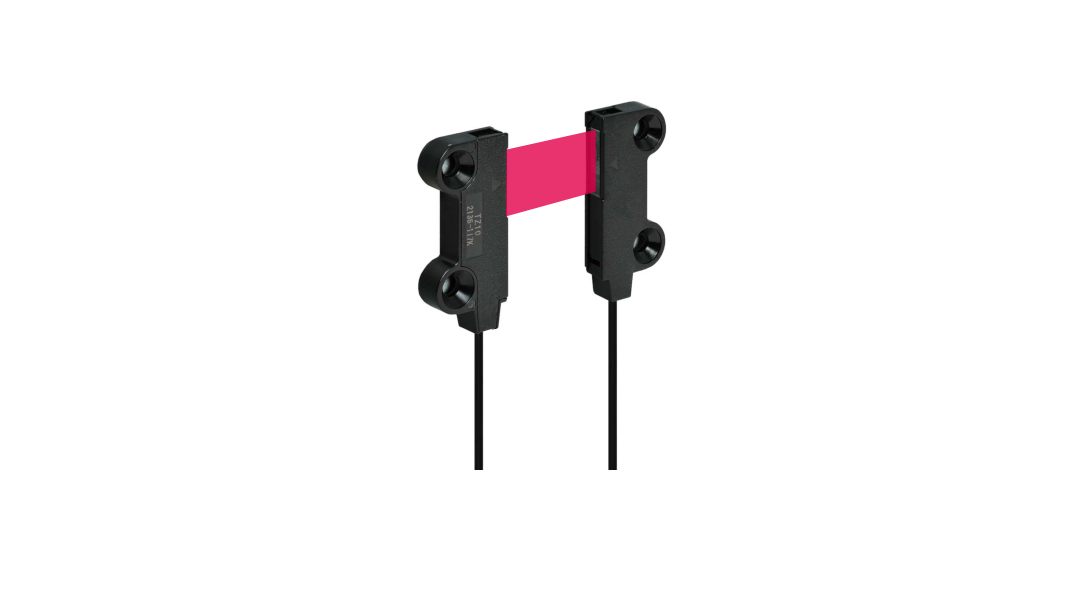

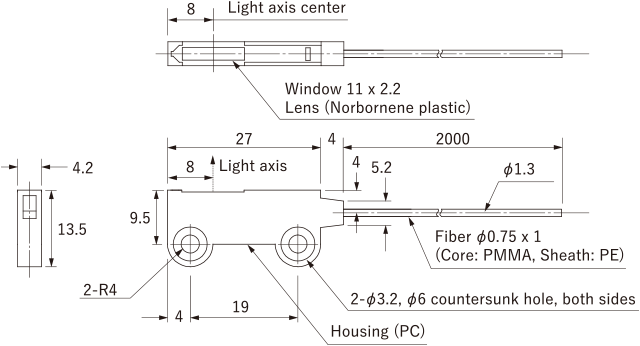

CAD & Drawings

Related Series

Browse and download catalogs and manuals on the product series page.

Specifications

Part No.	52847
Model	NF-TZ10
Category	Wide beam type
Type	Screen Collimated light
Detection method	Through-beam type
Optical axis direction	Side view
Shape of fiber head	W4.2 x H31 x D13.5 mm
Sleeve	-
Optical axis diameter	11 x 2.2 mm
Fiber length	2 m
Free-cut	Possible
Min. bending radius	R10 mm
Degree of protection	-
Ambient temperature	-40 ... +70°C 0 ... 40°C (at 85 % RH)
Ambient humidity	35 ... 85 % RH
Applicable regulations	RoHS directive (2011/65/EU)
Weight	Approx. 8 g
Included items	Fiber cutter, ø1.3 mm Fiber adapter x 2, Slit mask (12 x 0.5 mm: 2 pcs.), Slit mask (12 x 1.0 mm: 2 pcs.)

Unit: mm

Fiber-Optic Sensor D4RF Series		Fiber-Optic Sensor D12R Series
	3,600 (8 ms) 3,600 (2 ms) 3,600 (1 ms) 3,600 (500 μs) 3,600 (250 μs) 3,600 (70 μs) 2,765 (16 μs/22 μs)		3,600 (4 ms) 3,600 (1 ms) 3,600 (250 μs) 3,450 (50 μs)

Unit: mm

- Please be aware that because the aperture angle of this product is extremely narrow, light may not be taken in depending on installation conditions.
- When installing, determine a reference surface as shown in the diagram below while paying sufficient attention in regards to light axis shifting and slanting. Install so that emitting/receiving fibers are parallel.
Notes about the included slit masks
- Two types of slit masks are included with the NF-TZ09. The included slit masks can be used for detecting small objects or to prevent light saturation when using Fiber-Optic Cables at close range. However, using slit masks reduces the sensing distance.
  Because the slit masks are adhesive, when applying them to the Fiber-Optic Cables, align the slit projection with the top of the cables as shown in the diagram below.
2 pcs. each

How to apply
