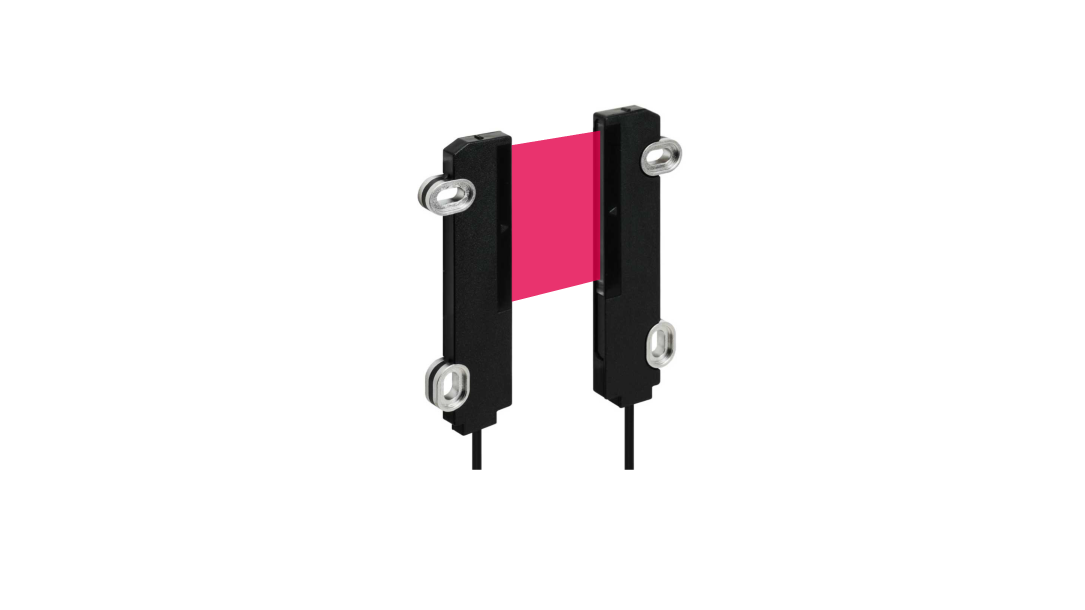

Specifications
| Part No. | 17548 |
|---|---|
| Model | NF-TS40 |
| Category | Wide beam type |
| Type |
Screen Collimated light |
| Detection method | Through-beam type |
| Optical axis direction | Side view |
| Shape of fiber head | W5.1 x H69.3 x D20 mm |
| Sleeve | - |
| Optical axis diameter | 40 x 3 mm |
| Fiber length | 2 m |
| Free-cut | Possible |
| Min. bending radius | R2 mm |
| Degree of protection | - |
| Ambient temperature |
-40 ... +60°C 0 ... 40°C (at 85 % RH) |
| Ambient humidity | 35 ... 85 % RH |
| Applicable regulations | RoHS directive (2011/65/EU) |
| Weight | |
| Included items | Fiber cutter, Low head screw x 4 |
● Optical axis diameter of Screen fiber is detection width.
Sensing Distance by Response Time
Unit: mm
| Fiber-Optic Sensor D4RF Series | Fiber-Optic Sensor D12R Series | ||
|---|---|---|---|
|
3,600 (8 ms) 3,600 (2 ms) 3,600 (1 ms) 3,600 (500 μs) 3,600 (250 μs) 3,600 (70 μs) 3,600 (16 μs/22 μs) |
|
3,600 (4 ms) 3,600 (1 ms) 3,600 (250 μs) 3,600 (50 μs) |

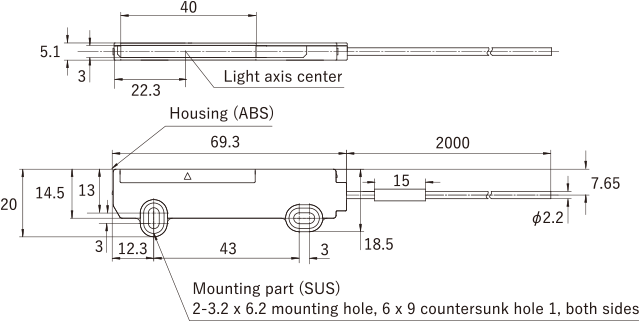

Dimensions
Unit: mm
Mounting Method

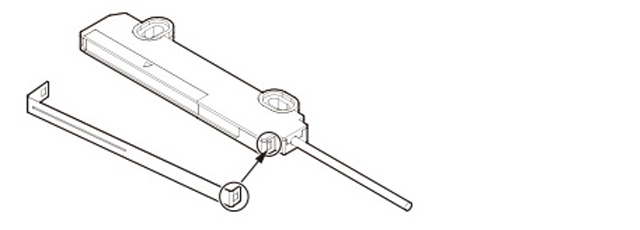

Notes about the metal slit masks sold separately
The metal slit masks (BL-TS40-30/BL-TS40-40) are optional accessories.
-
-
How to apply
Accessories
| Type | Part No. | Model | |
|---|---|---|---|
| Fiber cutter |  |
20228 | NFC-F01 |

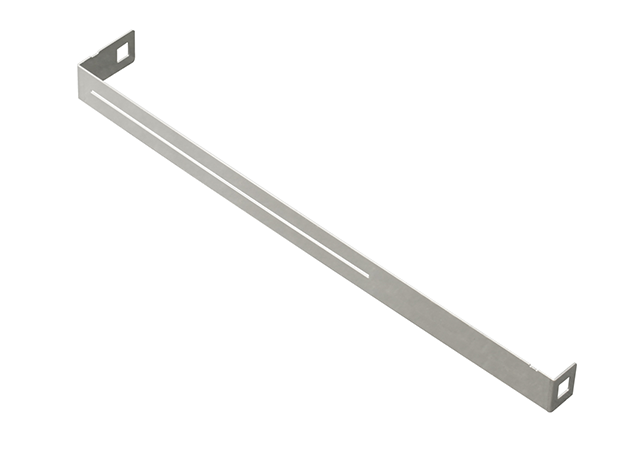

| Metal slit mask for NF-TS40 30 x 0.5mm: 2 pcs. |
 |
54765 | BL-TS40-30 |
| Metal slit mask for NF-TS40 40 x 0.5mm: 2 pcs. |
 |
54766 | BL-TS40-40 |
