Specifications
| Part No. | 51664 |
|---|---|
| Model | NF-DZ02 |
| Category | Wide beam type |
| Type | Array |
| Detection method | Diffuse-reflective type |
| Optical axis direction | Straight view |
| Shape of fiber head | W5 x H20 x D20 mm |
| Sleeve | - |
| Optical axis diameter | - |
| Fiber length | 2 m |
| Free-cut | Possible |
| Min. bending radius | R25 mm |
| Degree of protection | - |
| Ambient temperature |
-40 ... +70°C 0 ... 40°C (at 85 % RH) |
| Ambient humidity | 35 ... 85 % RH |
| Applicable regulations | RoHS directive (2011/65/EU) |
| Weight | Approx. 30 g |
| Included items | Fiber cutter |
Sensing Distance by Response Time
Unit: mm
| Fiber-Optic Sensor D4RF Series | Fiber-Optic Sensor D12R Series | ||
|---|---|---|---|
|
1,050 (8 ms) 725 (2 ms) 575 (1 ms) 535 (500 μs) 455 (250 μs) 285 (70 μs) 95 (16 μs/22 μs) |
|
950 (4 ms) 575 (1 ms) 420 (250 μs) 140 (50 μs) |
● The values on 500 x 500 mm white paper

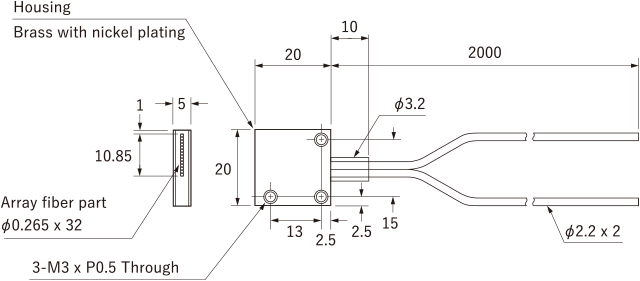

Dimensions
Unit: mm
Accessories
| Type | Part No. | Model | |
|---|---|---|---|
| Fiber cutter |  |
20228 | NFC-F01 |
Correct Use
