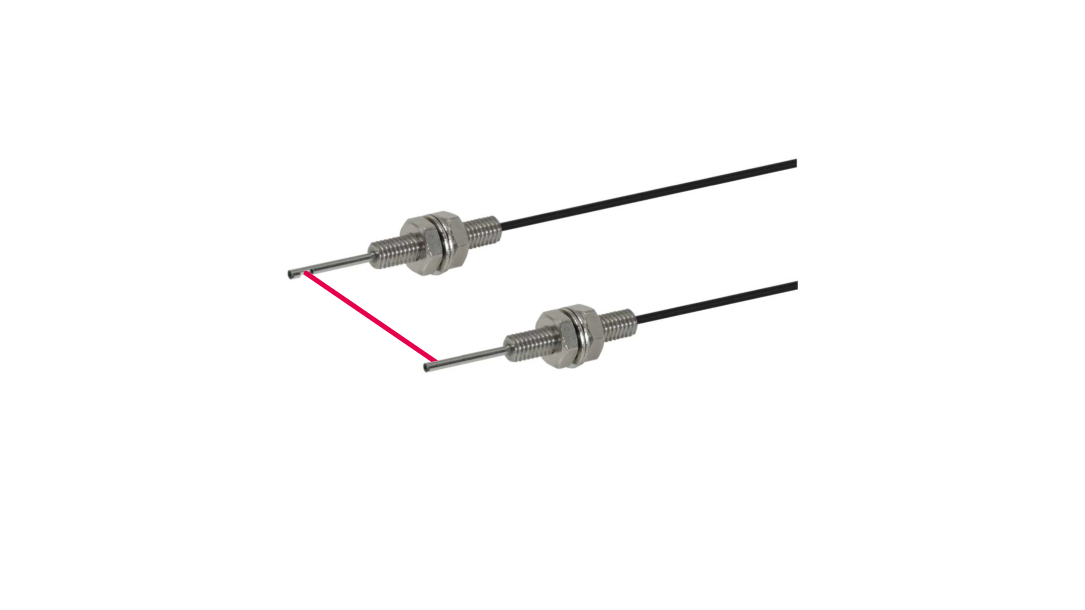

NF Series Sleeve/Side view type

NF-TV04

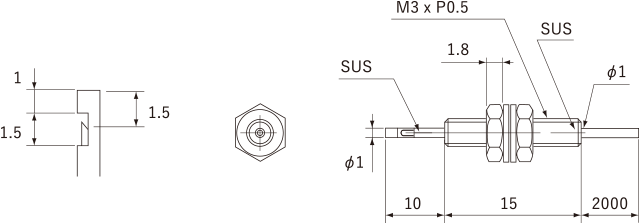

CAD & Drawings

Related Series

Browse and download catalogs and manuals on the product series page.

Specifications

Part No.	51670
Model	NF-TV04
Category	Sleeve/Side view type
Type	M3 Thin sleeve
Detection method	Through-beam type
Optical axis direction	Side view
Shape of fiber head	M3 15 mm long
Sleeve	ø1 mm 10 mm long
Optical axis diameter	ø1.5 mm
Fiber length	2 m
Free-cut	Possible
Min. bending radius	R15 mm
Degree of protection	-
Ambient temperature	-40 ... +70°C 0 ... 40°C (at 85 % RH)
Ambient humidity	35 ... 85 % RH
Applicable regulations	RoHS directive (2011/65/EU)
Weight	Approx. 47 g
Included items	Fiber cutter, M3 Hex nut x 4, Washer x 4

Unit: mm

Fiber-Optic Sensor D4RF Series		Fiber-Optic Sensor D12R Series
	1,070 (8 ms) 725 (2 ms) 540 (1 ms) 480 (500 μs) 375 (250 μs) 240 (70 μs) 75 (16 μs/22 μs)		1,070 (4 ms) 540 (1 ms) 375 (250 μs) 140 (50 μs)

Unit: mm

Type		Part No.	Model
Fiber cutter		20228	NFC-F01

Please refer to the Correct Use of all Fiber-Optic Cables.
