Specifications
| Part No. | 12219 |
|---|---|
| Model | NF-TV02 |
| Category | Sleeve/Side view type |
| Type |
ø2.5 Thin sleeve |
| Detection method | Through-beam type |
| Optical axis direction | Side view |
| Shape of fiber head |
ø2.5 mm 15 mm long |
| Sleeve |
ø1 mm 10 mm long |
| Optical axis diameter | ø1.5 mm |
| Fiber length | 2 m |
| Free-cut | Possible |
| Min. bending radius | R15 mm |
| Degree of protection | - |
| Ambient temperature |
-40 ... +70°C 0 ... 40°C (at 85 % RH) |
| Ambient humidity | 35 ... 85 % RH |
| Applicable regulations | RoHS directive (2011/65/EU) |
| Weight | |
| Included items | Fiber cutter, ø1.0 mm Fiber adapter x 2 |
Sensing Distance by Response Time
Unit: mm
| Fiber-Optic Sensor D4RF Series | Fiber-Optic Sensor D12R Series | ||
|---|---|---|---|
|
1,070 (8 ms) 725 (2 ms) 540 (1 ms) 480 (500 μs) 375 (250 μs) 240 (70 μs) 75 (16 μs/22 μs) |
|
1,070 (4 ms) 540 (1 ms) 375 (250 μs) 140 (50 μs) |

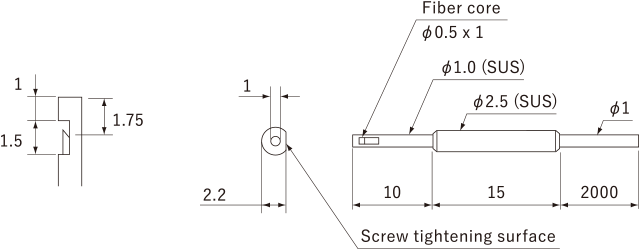

Dimensions
Unit: mm
Accessories
| Type | Part No. | Model | |
|---|---|---|---|
| Fiber cutter |  |
20228 | NFC-F01 |
| Fiber adapter ø1.0 mm |
 |
20188 | BF-WLL160-1.0 |
