Scheduled for Discontinuation
- This model will no longer be available.
- Last order acceptance date: 2026/04
For suitable alternatives, please feel free to contact us.

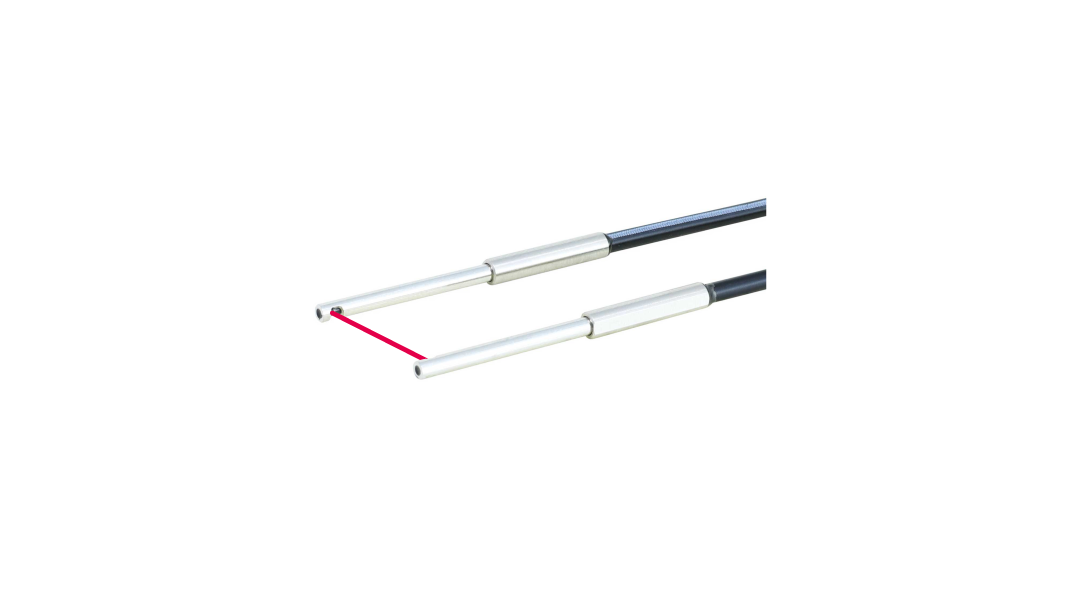

NF Series Sleeve/Side view type
NF-TV01-5
- Through-beam type
- φ3
- Free-cut
- Related Series
- Browse and download catalogs and manuals on the product series page.
Specifications
| Part No. | 50811 |
|---|---|
| Model | NF-TV01-5 |
| Category | Sleeve/Side view type |
| Type | ø3 |
| Detection method | Through-beam type |
| Optical axis direction | Side view |
| Shape of fiber head | ø3 mm 15 mm long |
| Sleeve | ø2 mm 20 mm long |
| Optical axis diameter | ø1.5 mm |
| Fiber length | 5 m |
| Free-cut | Possible |
| Min. bending radius | R25 mm |
| Degree of protection | - |
| Ambient temperature | -40 ... +70°C 0 ... 40°C (at 85 % RH) |
| Ambient humidity | 35 ... 85 % RH |
| Applicable regulations | RoHS directive (2011/65/EU) |
| Weight | |
| Included items | Fiber cutter |
Sensing Distance by Response Time
Unit: mm
| Fiber-Optic Sensor D4RF Series | Fiber-Optic Sensor D12R Series | ||
|---|---|---|---|
 |
2,720 (8 ms) 1,835 (2 ms) 1,285 (1 ms) 1,070 (500 μs) 845 (250 μs) 535 (70 μs) 170 (16 μs/22 μs) |
 |
2,360 (4 ms) 1,210 (1 ms) 825 (250 μs) 275 (50 μs) |

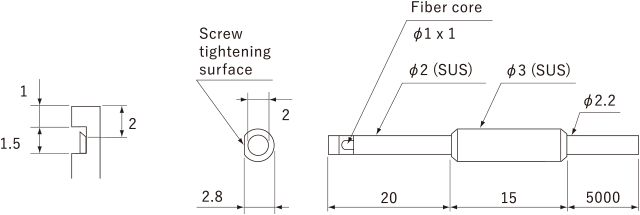

Dimensions
Unit: mm
Accessories
| Type | Part No. | Model | |
|---|---|---|---|
| Fiber cutter |  |
20228 | NFC-F01 |
Correct Use
