Specifications
| Part No. | 20093 |
|---|---|
| Model | NF-TS22 |
| Category | Sleeve/Side view type |
| Type | ø4 |
| Detection method | Through-beam type |
| Optical axis direction | Side view |
| Shape of fiber head |
ø4 mm 30 mm long |
| Sleeve | - |
| Optical axis diameter | ø3 mm |
| Fiber length | 2 m |
| Free-cut | Possible |
| Min. bending radius | R25 mm |
| Degree of protection | - |
| Ambient temperature |
-40 ... +70°C 0 ... 40°C (at 85 % RH) |
| Ambient humidity | 35 ... 85 % RH |
| Applicable regulations | RoHS directive (2011/65/EU) |
| Weight | |
| Included items | - |
Sensing Distance by Response Time
Unit: mm
| Fiber-Optic Sensor D4RF Series | Fiber-Optic Sensor D12R Series | ||
|---|---|---|---|
|
3,600 (8 ms) 3,600 (2 ms) 3,600 (1 ms) 3,600 (500 μs) 3,600 (250 μs) 3,475 (70 μs) 1,155 (16 μs/22 μs) |
|
3,600 (4 ms) 3,600 (1 ms) 3,600 (250 μs) 2,380 (50 μs) |

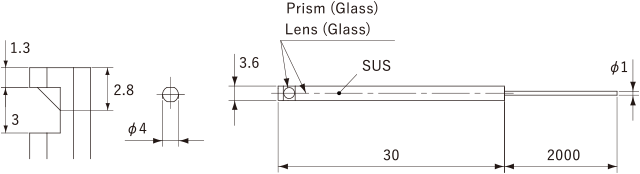

Dimensions
Unit: mm
Correct Use
