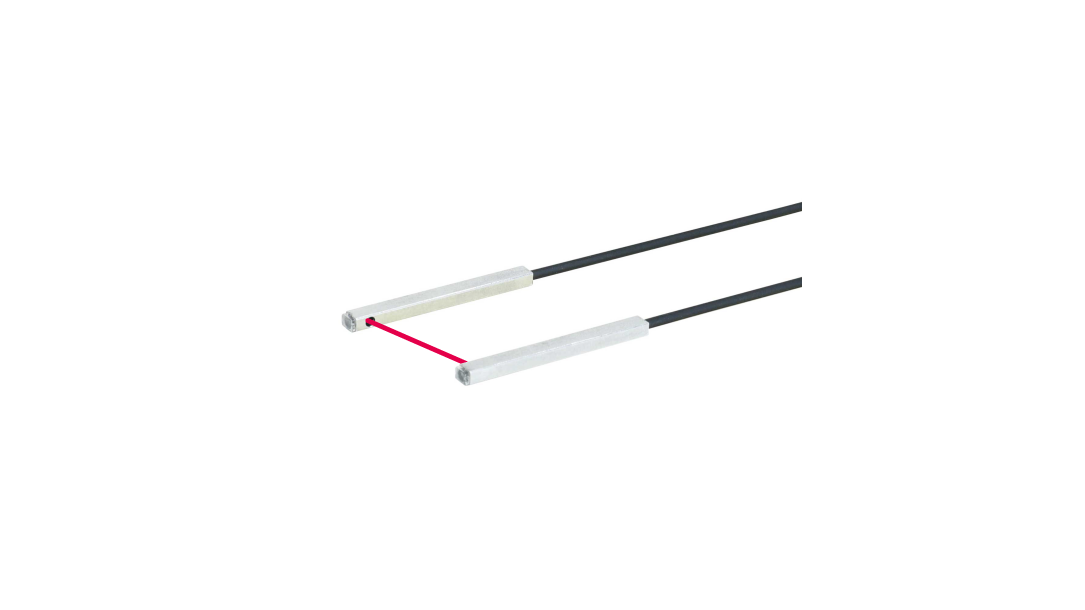

Specifications
| Part No. | 51683 |
|---|---|
| Model | NF-TG04 |
| Category | Sleeve/Side view type |
| Type |
2 x 1.5 Ultra-thin |
| Detection method | Through-beam type |
| Optical axis direction | Side view |
| Shape of fiber head |
2 x 1.5 mm 20 mm long |
| Sleeve | - |
| Optical axis diameter | ø1.0 mm |
| Fiber length | 2 m |
| Free-cut | Possible |
| Min. bending radius | R10 mm |
| Degree of protection | - |
| Ambient temperature |
-40 ... +60°C 0 ... 40°C (at 85 % RH) |
| Ambient humidity | 35 ... 85 % RH |
| Applicable regulations | RoHS directive (2011/65/EU) |
| Weight | Approx. 40 g |
| Included items | Fiber cutter, ø1.0 mm Fiber adapter x 2 |
Sensing Distance by Response Time
Unit: mm
| Fiber-Optic Sensor D4RF Series | Fiber-Optic Sensor D12R Series | ||
|---|---|---|---|
|
2,060 (8 ms) 1,420 (2 ms) 1,000 (1 ms) 895 (500 μs) 745 (250 μs) 475 (70 μs) 155 (16 μs/22 μs) |
|
2,060 (4 ms) 1,000 (1 ms) 745 (250 μs) 410 (50 μs) |

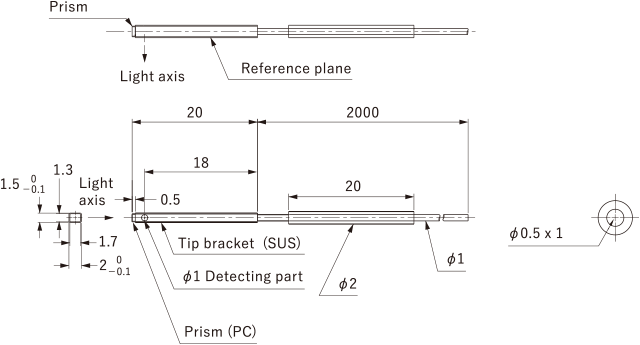

Dimensions
Unit: mm
Mounting Method
-
- Please be aware that because the aperture angle of this product is extremely narrow, light may not be taken in depending on installation conditions.

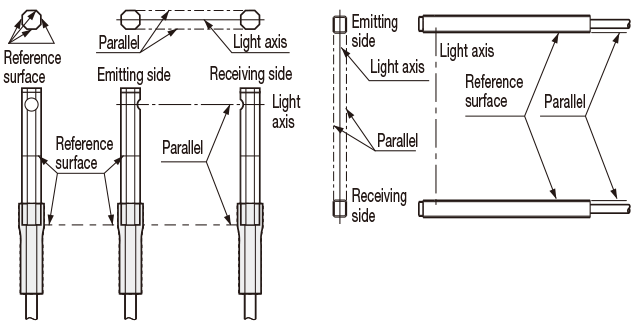

- When installing, determine a reference surface as shown in the diagram below while paying sufficient attention in regards to light axis shifting and slanting. Install so that emitting/receiving fibers are parallel.
Accessories
| Type | Part No. | Model | |
|---|---|---|---|
| Fiber cutter |  |
20228 | NFC-F01 |
| Fiber adapter ø1.0 mm |
 |
20188 | BF-WLL160-1.0 |
