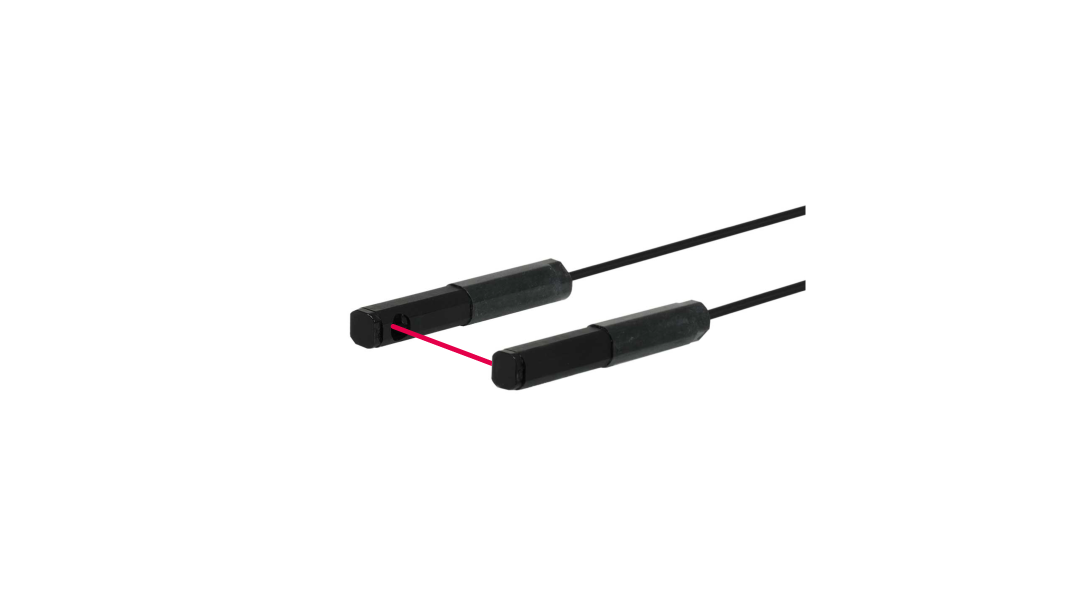

Specifications
| Part No. | 51682 |
|---|---|
| Model | NF-TG03 |
| Category | Sleeve/Side view type |
| Type |
ø4 Ultra-narrow view |
| Detection method | Through-beam type |
| Optical axis direction | Side view |
| Shape of fiber head |
ø4 mm 25 mm long |
| Sleeve | - |
| Optical axis diameter | ø2.5 mm |
| Fiber length | 2 m |
| Free-cut | Possible |
| Min. bending radius | R25 mm |
| Degree of protection | - |
| Ambient temperature |
-40 ... +60°C 0 ... 40°C (at 85 % RH) |
| Ambient humidity | 35 ... 85 % RH |
| Applicable regulations | RoHS directive (2011/65/EU) |
| Weight | Approx. 20 g |
| Included items | Fiber cutter |
Sensing Distance by Response Time
Unit: mm
| Fiber-Optic Sensor D4RF Series | Fiber-Optic Sensor D12R Series | ||
|---|---|---|---|
|
3,600 (8 ms) 3,600 (2 ms) 3,600 (1 ms) 3,600 (500 μs) 3,600 (250 μs) 2,730 (70 μs) 905 (16 μs/22 μs) |
|
3,600 (4 ms) 3,600 (1 ms) 3,600 (250 μs) 3,400 (50 μs) |

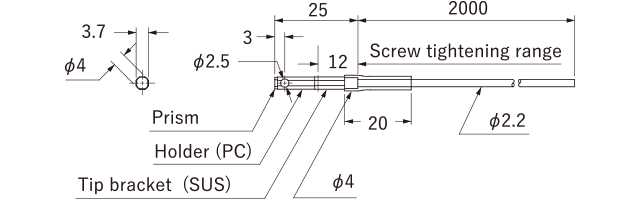

Dimensions
Unit: mm
Mounting Method
-
- Please be aware that because the aperture angle of this product is extremely narrow, light may not be taken in depending on installation conditions.
- When installing, determine a reference surface as shown in the diagram below while paying sufficient attention in regards to light axis shifting and slanting. Install so that emitting/receiving fibers are parallel.
Accessories
| Type | Part No. | Model | |
|---|---|---|---|
| Fiber cutter |  |
20228 | NFC-F01 |
