Specifications
| Part No. | 13021 |
|---|---|
| Model | NF-DT05 |
| Category | Sleeve/Side view type |
| Type | M4 |
| Detection method | Diffuse-reflective type |
| Optical axis direction | Straight view |
| Shape of fiber head |
M4 20 mm long |
| Sleeve |
ø1.5 mm 28 mm long |
| Optical axis diameter | - |
| Fiber length | 2 m |
| Free-cut | Possible |
| Min. bending radius | R15 mm |
| Degree of protection | - |
| Ambient temperature |
-40 ... +70°C 0 ... 40°C (at 85 % RH) |
| Ambient humidity | 35 ... 85 % RH |
| Applicable regulations | RoHS directive (2011/65/EU) |
| Weight | |
| Included items | Fiber cutter, M4 Hex nut x 2, Washer x 2 |
Sensing Distance by Response Time
Unit: mm
| Fiber-Optic Sensor D4RF Series | Fiber-Optic Sensor D12R Series | ||
|---|---|---|---|
|
580 (8 ms) 395 (2 ms) 275 (1 ms) 235 (500 μs) 185 (250 μs) 115 (70 μs) 35 (16 μs/22 μs) |
|
560 (4 ms) 275 (1 ms) 185 (250 μs) 60 (50 μs) |
● The values on 500 x 500 mm white paper

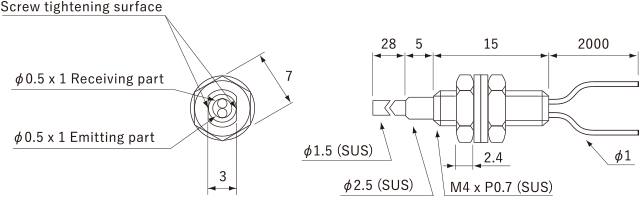

Dimensions
Unit: mm
Accessories
| Type | Part No. | Model | |
|---|---|---|---|
| Fiber cutter |  |
20228 | NFC-F01 |
