Specifications
| Part No. | 12226 |
|---|---|
| Model | NF-DT02 |
| Category |
Sleeve/Side view type Flexible type |
| Type |
M3 Fine sleeve |
| Detection method | Diffuse-reflective type |
| Optical axis direction | Straight view |
| Shape of fiber head |
M3 15 mm long |
| Sleeve |
ø0.82 mm 15 mm long |
| Optical axis diameter | - |
| Fiber length | 0.5 m |
| Free-cut | Possible |
| Min. bending radius | R5 mm |
| Degree of protection | - |
| Ambient temperature |
-40 ... +70°C 0 ... 40°C (at 85 % RH) |
| Ambient humidity | 35 ... 85 % RH |
| Applicable regulations | RoHS directive (2011/65/EU) |
| Weight | Approx. 54 g |
| Included items | Fiber cutter, M3 Hex nut x 2, Washer x 2 |
Sensing Distance by Response Time
Unit: mm
| Fiber-Optic Sensor D4RF Series | Fiber-Optic Sensor D12R Series | ||
|---|---|---|---|
|
240 (8 ms) 150 (2 ms) 95 (1 ms) 80 (500 μs) 65 (250 μs) 35 (70 μs) 10 (16 μs/22 μs) |
|
120 (4 ms) 55 (1 ms) 35 (250 μs) 10 (50 μs) |
● The values on 500 x 500 mm white paper

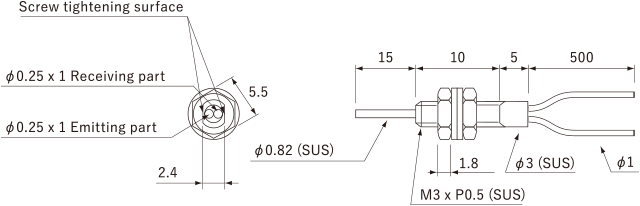

Dimensions
Unit: mm
Accessories
| Type | Part No. | Model | |
|---|---|---|---|
| Fiber cutter |  |
20228 | NFC-F01 |
| Fiber adapter ø1.0 mm |
 |
20188 | BF-WLL160-1.0 |
