Specifications
| Part No. | 14495 |
|---|---|
| Model | NF-DK43 |
| Category | Sleeve/Side view type |
| Type | ø4 |
| Detection method | Diffuse-reflective type |
| Optical axis direction | Straight view |
| Shape of fiber head |
ø4 mm 15 mm long |
| Sleeve |
ø1.5 mm 20 mm long |
| Optical axis diameter | - |
| Fiber length | 2 m |
| Free-cut | Possible |
| Min. bending radius | R15 mm |
| Degree of protection | - |
| Ambient temperature |
-40 ... +70°C 0 ... 40°C (at 85 % RH) |
| Ambient humidity | 35 ... 85 % RH |
| Applicable regulations | RoHS directive (2011/65/EU) |
| Weight | Approx. 25 g |
| Included items | Fiber cutter |
Sensing Distance by Response Time
Unit: mm
| Fiber-Optic Sensor D4RF Series | Fiber-Optic Sensor D12R Series | ||
|---|---|---|---|
|
490 (8 ms) 330 (2 ms) 230 (1 ms) 195 (500 μs) 160 (250 μs) 100 (70 μs) 30 (16 μs/22 μs) |
|
490 (4 ms) 230 (1 ms) 160 (250 μs) 60 (50 μs) |
● The values on 500 x 500 mm white paper

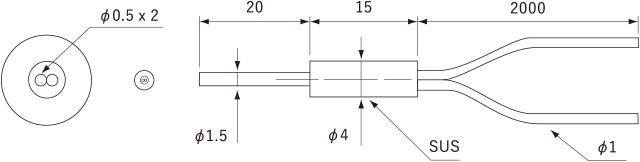

Dimensions
Unit: mm
Accessories
| Type | Part No. | Model | |
|---|---|---|---|
| Fiber cutter |  |
20228 | NFC-F01 |
Correct Use
