Specifications
| Part No. | 51621 |
|---|---|
| Model | NF-DB05 |
| Category | Sleeve/Side view type |
| Type |
M3 Coaxial Fine sleeve |
| Detection method | Diffuse-reflective type |
| Optical axis direction | Straight view |
| Shape of fiber head |
M3 15 mm long |
| Sleeve |
ø0.8 mm 15 mm long |
| Optical axis diameter | - |
| Fiber length | 1 m |
| Free-cut | - |
| Min. bending radius | R25 mm |
| Degree of protection | - |
| Ambient temperature |
-20 ... +60°C 0 ... 40°C (at 85 % RH) |
| Ambient humidity | 35 ... 85 % RH |
| Applicable regulations | RoHS directive (2011/65/EU) |
| Weight | Approx. 3 g |
| Included items | M3 Hex nut x 2, Toothed washer x 1 |
Sensing Distance by Response Time
Unit: mm
| Fiber-Optic Sensor D4RF Series | Fiber-Optic Sensor D12R Series | ||
|---|---|---|---|
|
260 (8 ms) 175 (2 ms) 140 (1 ms) 115 (500 μs) 90 (250 μs) 60 (70 μs) 15 (16 μs/22 μs) |
|
240 (4 ms) 110 (1 ms) 75 (250 μs) 25 (50 μs) |
● The values on 500 x 500 mm white paper

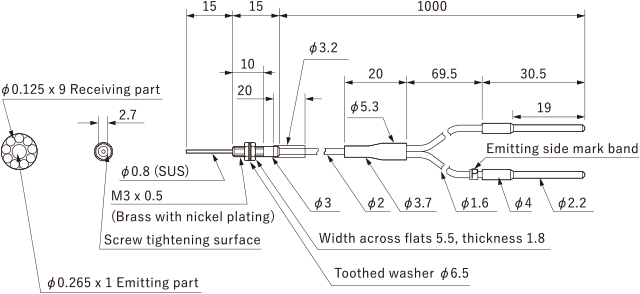

Dimensions
Unit: mm
