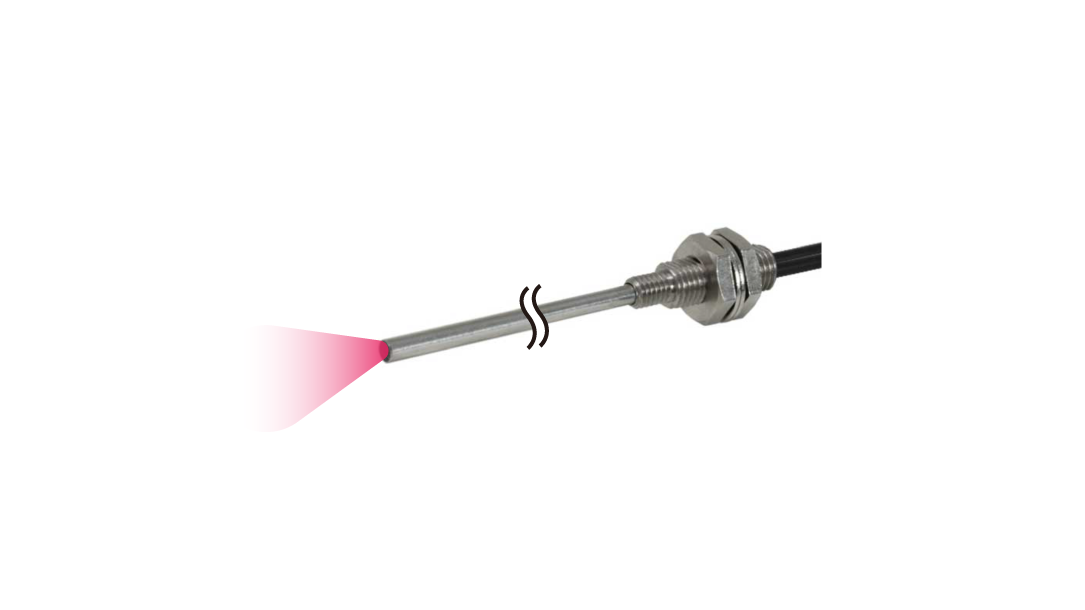

Specifications
| Part No. | 12221 |
|---|---|
| Model | NF-DB02 |
| Category | Sleeve/Side view type |
| Type | M6 |
| Detection method | Diffuse-reflective type |
| Optical axis direction | Straight view |
| Shape of fiber head |
M6 15 mm long |
| Sleeve |
ø2.5 mm 90 mm long Bendable*1 |
| Optical axis diameter | - |
| Fiber length | 2 m |
| Free-cut | Possible |
| Min. bending radius |
Fiber R25 mm Sleeve R20 mm |
| Degree of protection | - |
| Ambient temperature |
-40 ... +70°C 0 ... 40°C (at 85 % RH) |
| Ambient humidity | 35 ... 85 % RH |
| Applicable regulations | RoHS directive (2011/65/EU) |
| Weight | Approx. 61 g |
| Included items | Fiber cutter, M6 Hex nut x 2, Toothed washer x 2 |
- *1.Please bend the sleeve at an angle of 90° or less.
Sensing Distance by Response Time
Unit: mm
| Fiber-Optic Sensor D4RF Series | Fiber-Optic Sensor D12R Series | ||
|---|---|---|---|
|
1,250 (8 ms) 800 (2 ms) 700 (1 ms) 600 (500 μs) 500 (250 μs) 300 (70 μs) 120 (16 μs/22 μs) |
|
1,200 (4 ms) 700 (1 ms) 500 (250 μs) 185 (50 μs) |
● The values on 500 x 500 mm white paper

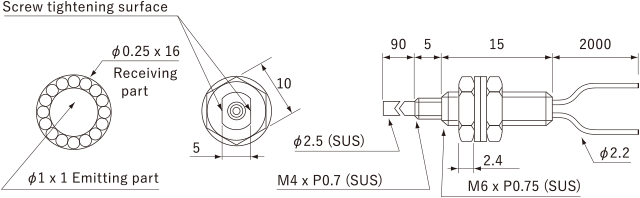

Dimensions
Unit: mm
Accessories
| Type | Part No. | Model | |
|---|---|---|---|
| Fiber cutter |  |
20228 | NFC-F01 |
