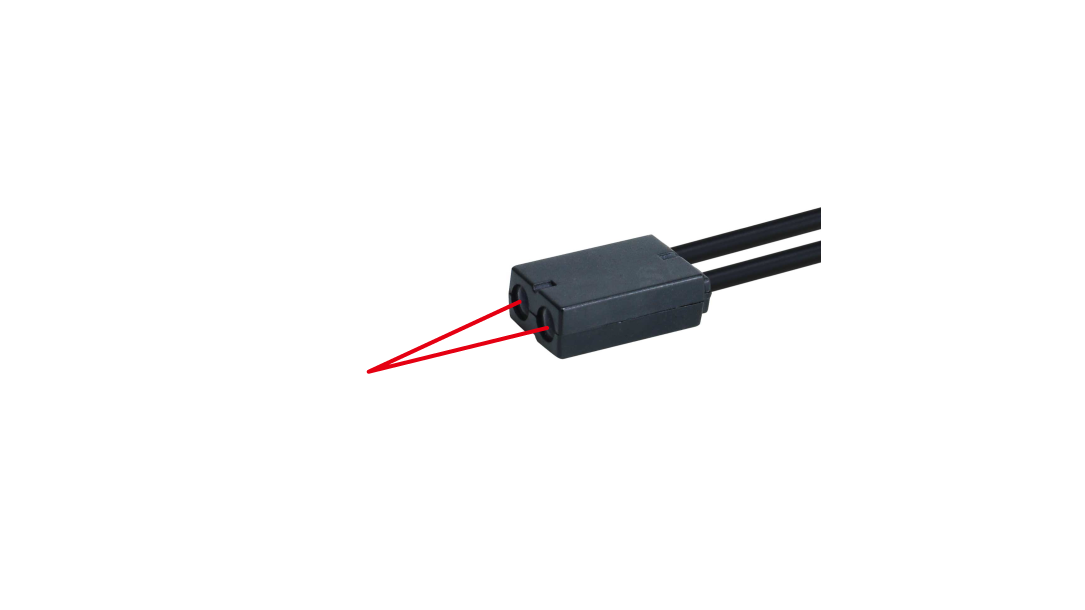

NF Series Retro-reflective type

NF-RR01

CAD & Drawings

Related Series

Browse and download catalogs and manuals on the product series page.

Specifications

Part No.	51669
Model	NF-RR01
Category	Retro-reflective type
Type	Flat Built-in polarizing filter
Detection method	Retro-reflective type
Optical axis direction	Straight view
Shape of fiber head	W9.5 x H5.2 x D15 mm
Sleeve	-
Optical axis diameter	-
Fiber length	2 m
Free-cut	Possible
Min. bending radius	R1 mm
Degree of protection	-
Ambient temperature	-25 ... +55°C 0 ... 40°C (at 85 % RH)
Ambient humidity	35 ... 85 % RH
Applicable regulations	RoHS directive (2011/65/EU)
Weight	Approx. 15 g
Included items	Fiber cutter, Mounting bracket, Reflector sheet

Unit: mm

Fiber-Optic Sensor D4RF Series		Fiber-Optic Sensor D12R Series
	2,130 (8 ms) 1,600 (2 ms) 1,340 (1 ms) 1,210 (500 μs) 1,140 (250 μs) 910 (70 μs) 500 (16 μs/22 μs)		1,820 (4 ms) 1,105 (1 ms) 895 (250 μs) 495 (50 μs)

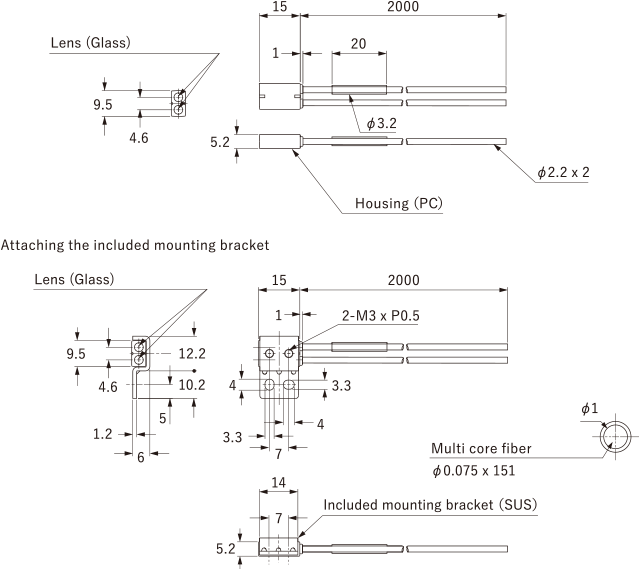

Unit: mm

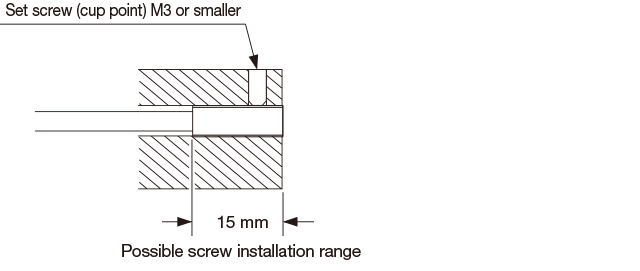

If not using the included mounting bracket
- Using a set screw (cup point of M3 or smaller), mount within 15 mm of head portion bracket edge.

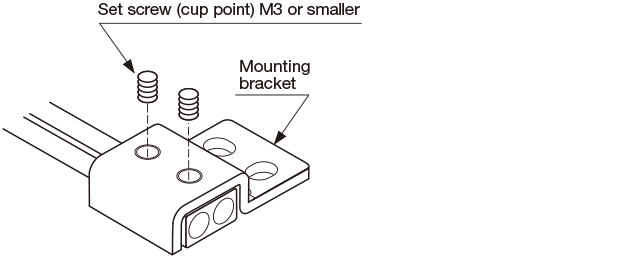

If using the included mounting bracket
- The head portion can be secured even without use of a set screw.
- If using a set screw, secure using a set screw with an M3 cup point.

Type		Part No.	Model
Fiber cutter		20228	NFC-F01

Please refer to the Correct Use of all Fiber-Optic Cables.
