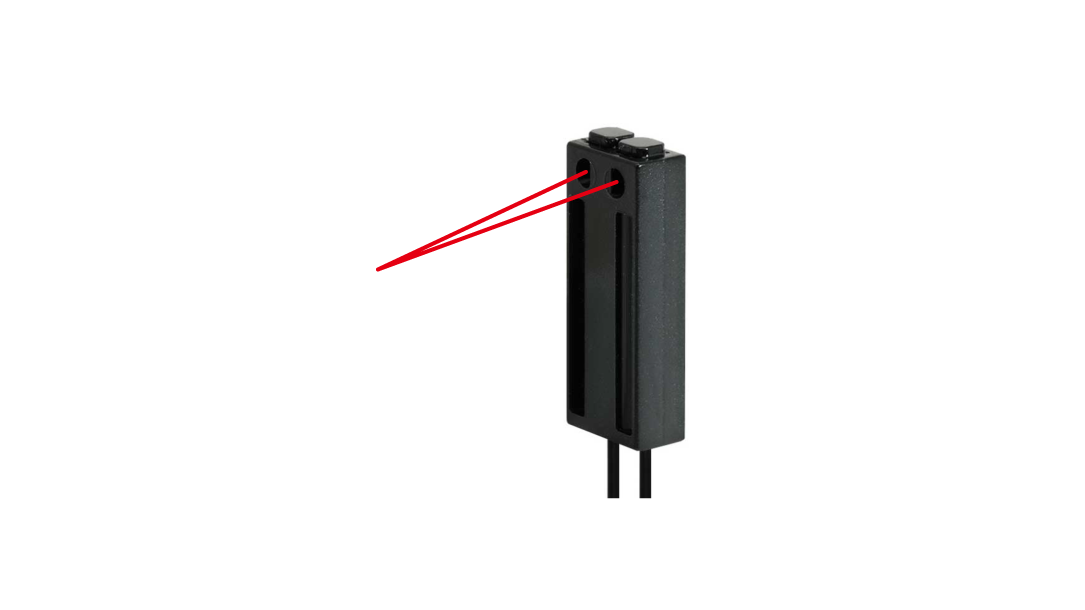

NF Series Retro-reflective type

NF-RB02

CAD & Drawings

Related Series

Browse and download catalogs and manuals on the product series page.

Specifications

Part No.	55518
Model	NF-RB02
Category	Retro-reflective type
Type	Narrow view
Detection method	Retro-reflective type
Optical axis direction	Flat view
Shape of fiber head	W9.5 x H25 x D5.2 mm
Sleeve	-
Optical axis diameter	-
Fiber length	2 m
Free-cut	Possible
Min. bending radius	R10 mm
Degree of protection	-
Ambient temperature	-40 ... +60°C 0 ... 40°C (at 85 % RH)
Ambient humidity	35 ... 85 % RH
Applicable regulations	RoHS directive (2011/65/EU)
Weight	Approx. 5 g

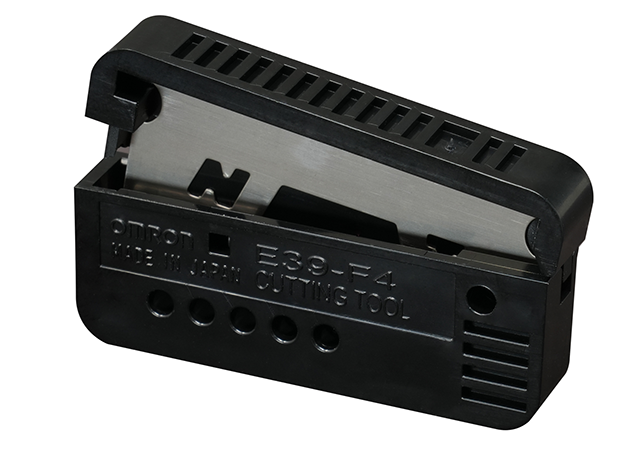

Included items	Fiber cutter, ø1.0 mm Fiber adapter x 2, Mounting bracket, Reflector

Unit: mm

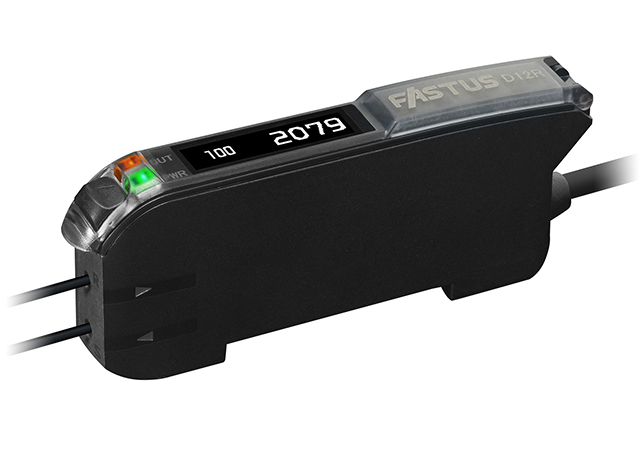

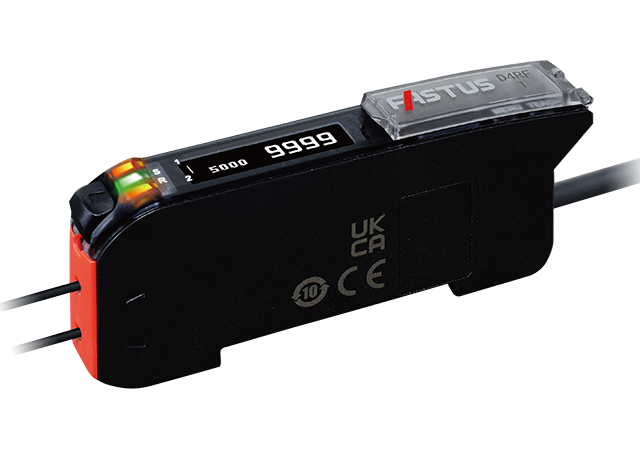

Fiber-Optic Sensor D4RF Series		Fiber-Optic Sensor D12R Series
	430 (8 ms) 385 (2 ms) 345 (1 ms) 335 (500 μs) 330 (250 μs) 260 (70 μs) 165 (16 μs/22 μs)		430 (4 ms) 345 (1 ms) 310 (250 μs) 185 (50 μs)

Unit: mm

- Because the aperture angle of this product is extremely narrow, light may not be taken in depending on installation conditions.
- As shown in the diagram below, install so that the centers of the fiber head and reflector are aligned. Pay attention for light axis shifting and slanting.
<Notes>
- If detecting items such as transparent objects, detection may be unstable if the objects are within range of 0 to 20 mm from the window.

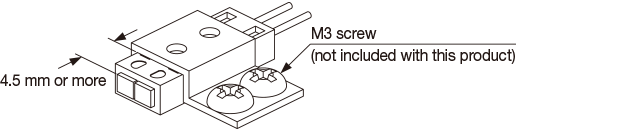

If mounting using the included fiber mounting bracket
- If using the fiber mounting bracket to mount a Flat view type fiber, mount so that there is no interference with the detecting part.
- The fiber mounting bracket can be used to secure the fiber without use of an M3 set screw.

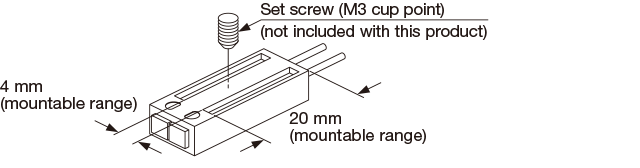

If mounting using an M3 set screw (cup point)
- Secure with an M3 set screw within the mounting range shown in the diagram below.
