Specifications
| Part No. | 20178 |
|---|---|
| Model | NF-DW01 |
| Category | Liquid/Water detection type |
| Type |
M6 Water detection |
| Detection method | Diffuse-reflective type |
| Optical axis direction | Straight view |
| Shape of fiber head |
M6 22 m long |
| Sleeve | - |
| Optical axis diameter | - |
| Fiber length | 1 m |
| Free-cut | - |
| Min. bending radius | R25 mm |
| Degree of protection | - |
| Ambient temperature |
-40 ... +200°C 0 ... 40°C (at 85 % RH) |
| Ambient humidity | 35 ... 85 % RH |
| Applicable regulations | - |
| Weight | |
| Included items | - |
Sensing Distance by Response Time
Unit: mm
| Fiber-Optic Sensor D4IF Series | |
|---|---|
|
210 (8 ms) 155 (2 ms) 115 (1 ms) 80 (500 μs) 75 (250 μs) 60 (70 μs) 23 (16 μs/22 μs) |
● Use D4IF Fiber-Optic Cables for water detection.
● The values on 500 x 500 mm white paper

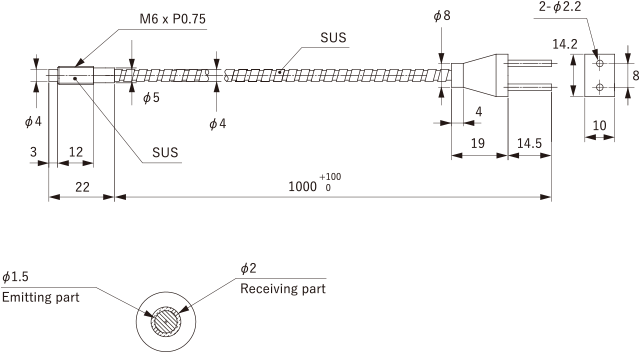

Dimensions
Unit: mm
Correct Use
