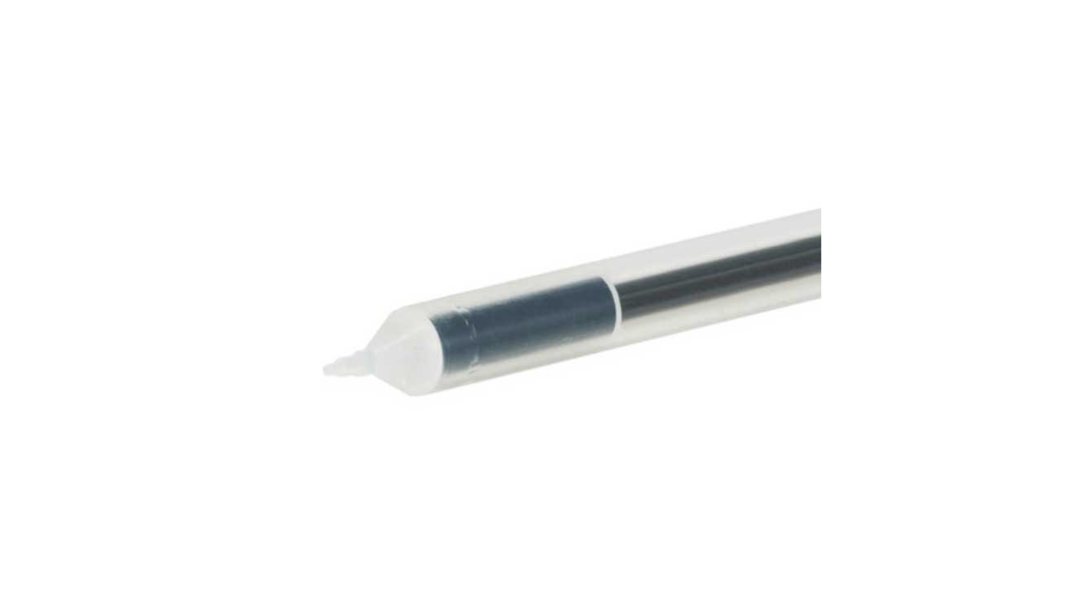

Specifications
| Part No. | 13171 |
|---|---|
| Model | NF-DF03 |
| Category | Liquid/Water detection type |
| Type |
ø6 Contact type Liquid level detection |
| Detection method | Diffuse-reflective type |
| Optical axis direction | Straight view |
| Shape of fiber head |
ø6 mm 24 mm long |
| Sleeve | - |
| Optical axis diameter | - |
| Fiber length | 2 m (Fluoroplastic tube) |
| Free-cut | Possible |
| Min. bending radius |
Fiber R25 mm Fluoroplastic tube R60 mm |
| Degree of protection | - |
| Ambient temperature |
-40 ... +70°C 0 ... 40°C (at 85 % RH) |
| Ambient humidity | 35 ... 85 % RH |
| Applicable regulations | RoHS directive (2011/65/EU) |
| Weight | Approx. 107 g |
| Included items |
● For transparent liquids only
● Liquid accumulation prevention structure

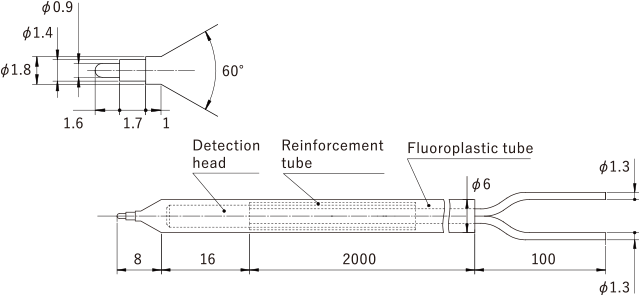

Dimensions
Unit: mm
Mounting Method
Usage notes
Liquid level detection type Fiber-Optic Cables
-
- When cutting the protective tubes, take care not to damage the fiber sheath.
- Amounts of light may decrease during extended periods of usage under conditions with high heat or humidity.
- Water droplets adhered to the window will influence detection performance. Avoid use in areas where direct contact with water could be made.
Also pay sufficient attention to any condensation that has formed on the pipe exterior.
