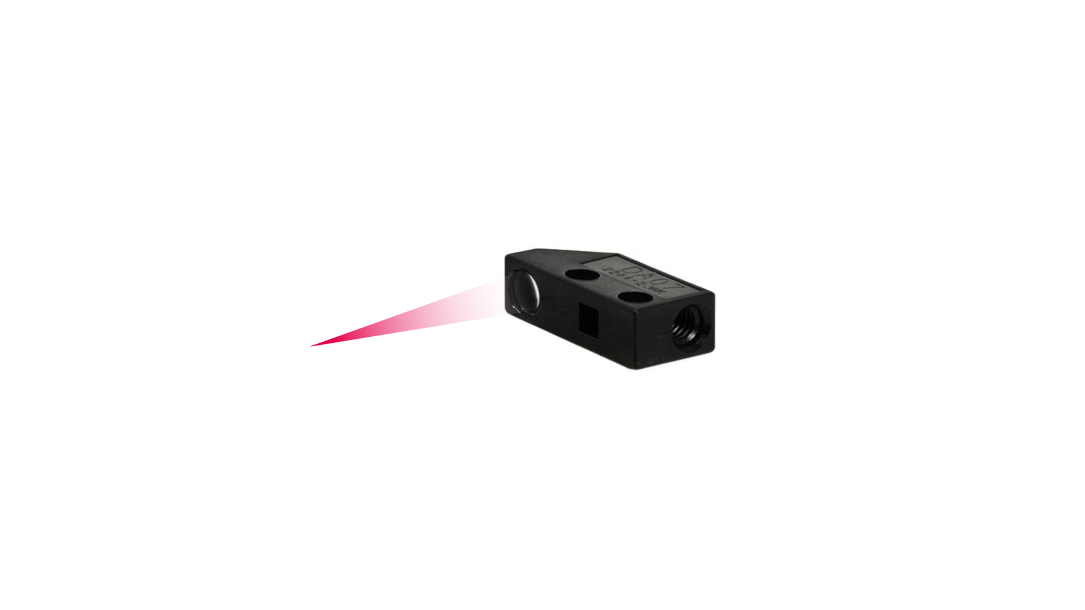

NF Series Attachment lens

NF-DA07

CAD & Drawings

Related Series

Browse and download catalogs and manuals on the product series page.

Specifications

Part No.	51733
Model	NF-DA07
Category	Attachment lens
Type	Spot size adjustable
Detection method	Diffuse-reflective type
Center sensing distance	Approx. 9 ... 17 mm
Optical axis	Side view
Dimensions	W20.3 x H6.3 x D10.3 mm
Internal thread size	-
Applicable Fiber-Optic Cables	NF-DM02-G4
Ambient temperature	-40 ... +70℃ 0 ... 40°C (at 85 % RH)
Ambient humidity	35 ... 85 % RH
Applicable regulations	RoHS directive (2011/65/EU)
Weight	Approx. 1 g
Included items	Hex nut x 1

Applicable Fiber-Optic Cables	Spot size
NF-DM02-G4	Approx. ø0.8 ... 3.2 mm

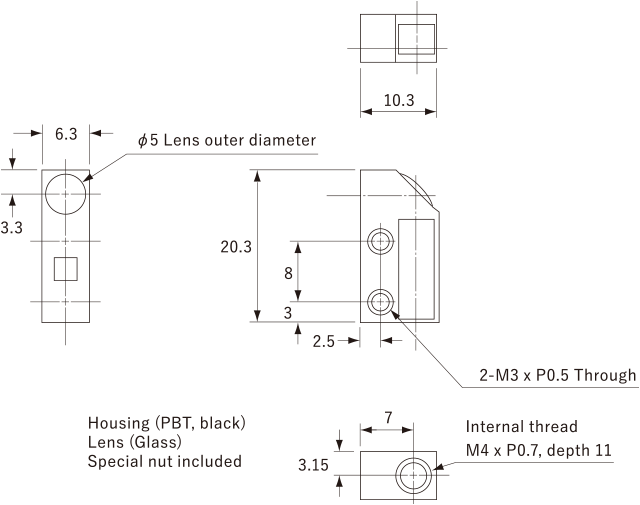

Unit: mm

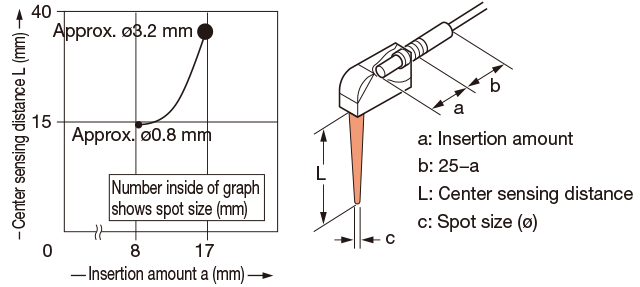

- Spot size and sensing distance can be adjusted depending on the fiber insertion amount.

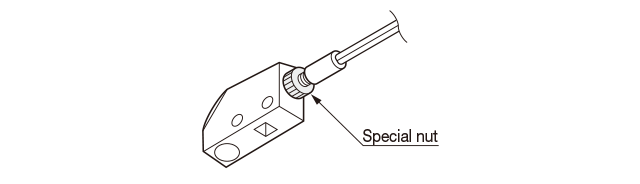

- After setting the fiber and NF-DA07, secure using the special nut included with NF-DA07 to prevent moving caused by vibrations, etc.
