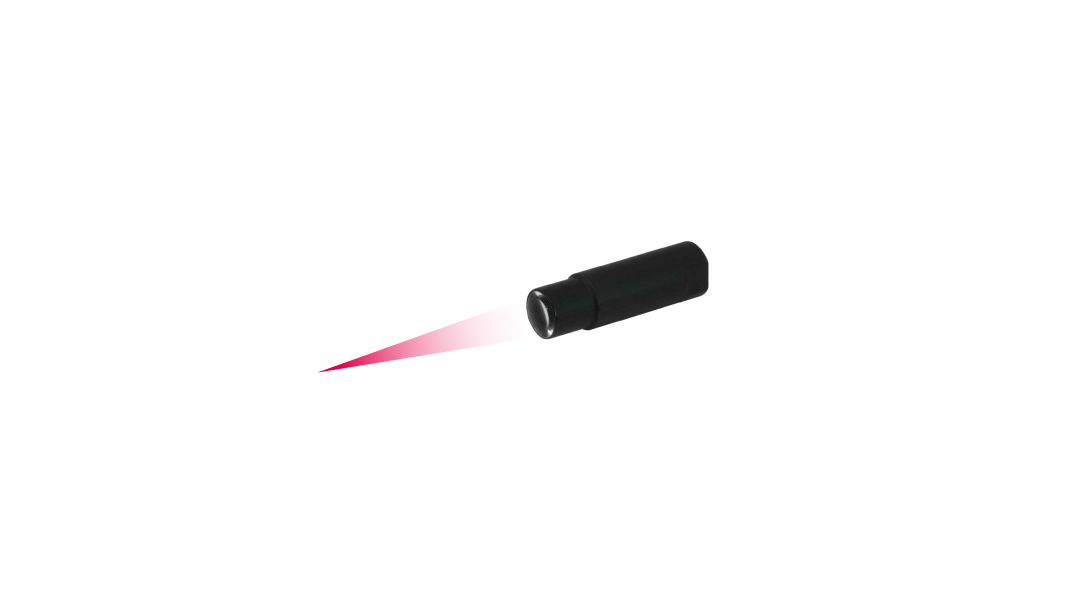

Specifications
| Part No. | 51732 |
|---|---|
| Model | NF-DA06 |
| Category | Attachment lens |
| Type | Spot size adjustable |
| Detection method | Diffuse-reflective type |
| Center sensing distance | Approx. 20 ... 40 mm |
| Optical axis | Top view |
| Dimensions | ø7.1 mm x 27.1 mm |
| Internal thread size | M3 |
| Applicable Fiber-Optic Cables | NF-DM02-G4 |
| Ambient temperature |
-40 ... +70℃ 0 ... 40°C (at 85 % RH) |
| Ambient humidity | 35 ... 85 % RH |
| Applicable regulations | RoHS directive (2011/65/EU) |
| Weight | Approx. 2 g |
| Included items | Mounting bracket |
Spot Size and Applicable Fiber-Optic Cables
| Applicable Fiber-Optic Cables | Spot size |
|---|---|
| NF-DM02-G4 | Approx. ø0.9 ... 1.9 mm |
Dimensions

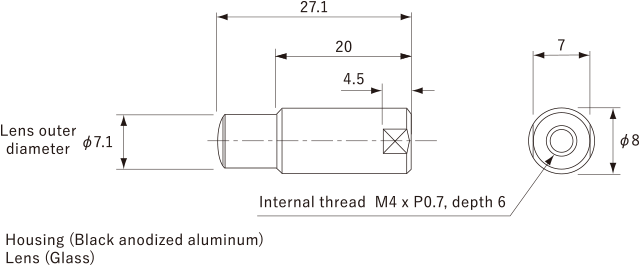

Unit: mm
Mounting Method
-

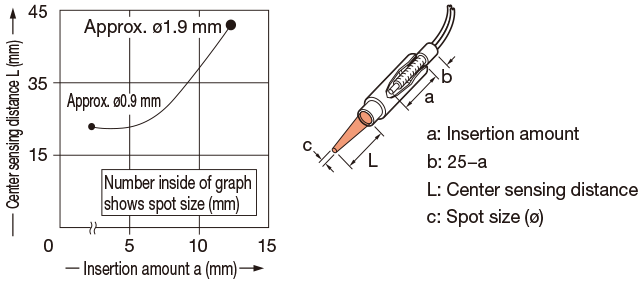

- Spot size and sensing distance can be adjusted depending on the fiber insertion amount. Be aware that if inserted too deeply, the fiber tip may become separated from the lens.
-
- After setting the fiber and NF-DA06, secure using the nut included with the fiber to prevent moving caused by vibrations, etc.
-
- If securing NF-DA06 using a set screw, use an M3 set screw (cup point).
