Specifications
| Part No. | 13327 |
|---|---|
| Model | NF-DA02 |
| Category | Attachment lens |
| Type | Small spot lens |
| Detection method | Diffuse-reflective type |
| Center sensing distance | 15 mm |
| Optical axis | Top view |
| Dimensions | ø4.3 mm x 10.9 mm |
| Internal thread size | M3 |
| Applicable Fiber-Optic Cables | NF-DK21, NF-DT01 |
| Ambient temperature |
-40 ... +70℃ 0 ... 40°C (at 85 % RH) |
| Ambient humidity | 35 ... 85 % RH |
| Applicable regulations | RoHS directive (2011/65/EU) |
| Weight | |
| Included items | - |
Spot Size and Applicable Fiber-Optic Cables
| Applicable Fiber-Optic Cables | Spot size |
|---|---|
| NF-DK21 | Approx. ø1.2 mm |
| NF-DT01 | Approx. ø1.4 mm |

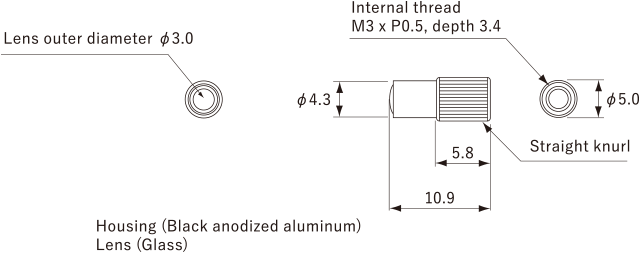

Dimensions
Unit: mm
Mounting Method
-
- If inserting fiber, inserting until the fiber comes to a stop.
