NF Series Heat resistant type

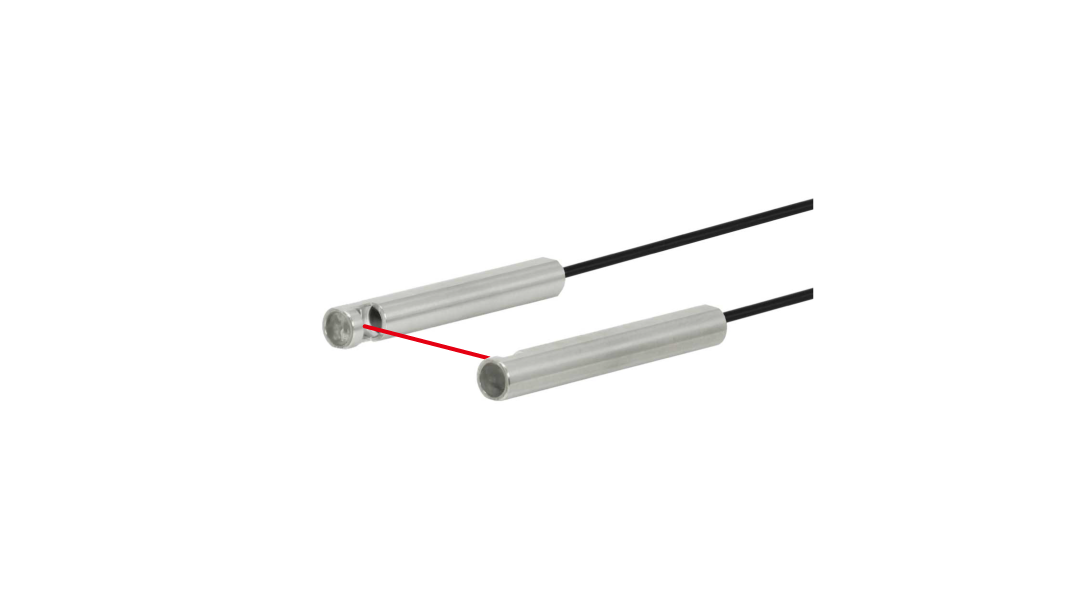

NF-TS22M

CAD & Drawings

Related Series

Browse and download catalogs and manuals on the product series page.

Specifications

Part No.	50833
Model	NF-TS22M
Category	Heat resistant type
Type	ø4
Detection method	Through-beam type
Optical axis direction	Side view
Shape of fiber head	ø4 30 mm long
Sleeve	-
Optical axis diameter	ø0.5 mm
Fiber length	2 m
Free-cut	Possible
Min. bending radius	R15 mm
Degree of protection	-
Ambient temperature	-40 ... +105°C 0 ... 40°C (at 85 % RH)
Ambient humidity	35 ... 85 % RH
Applicable regulations	RoHS directive (2011/65/EU)
Weight
Included items	Fiber cutter, ø1 mm Fiber adapter x 2

Unit: mm

Fiber-Optic Sensor D4RF Series		Fiber-Optic Sensor D12R Series
	3,600 (8 ms) 3,600 (2 ms) 3,600 (1 ms) 3,600 (500 μs) 3,600 (250 μs) 3,475 (70 μs) 1,155 (16 μs/22 μs)		3,600 (4 ms) 3,600 (1 ms) 3,600 (250 μs) 2,380 (50 μs)

Unit: mm

Type		Part No.	Model
Fiber cutter		20228	NFC-F01
Fiber adapter ø1.0 mm		20188	BF-WLL160-1.0

Please refer to the Correct Use of all Fiber-Optic Cables.
