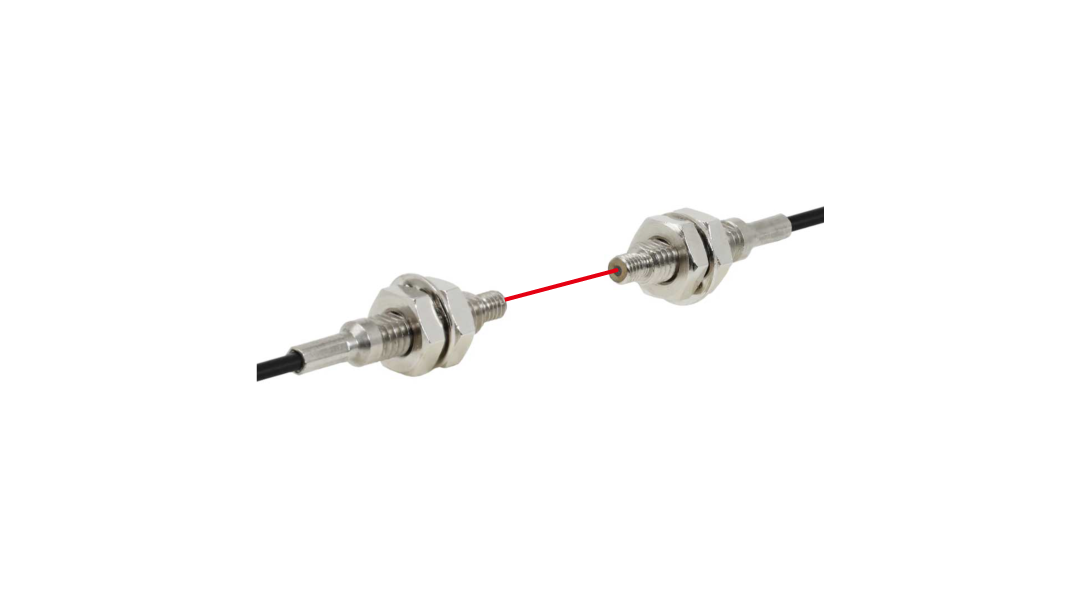

Specifications
| Part No. | 51687 |
|---|---|
| Model | NF-TH10 |
| Category | Heat resistant type |
| Type |
M4 Lens attachable |
| Detection method | Through-beam type |
| Optical axis direction | Straight view |
| Shape of fiber head |
M4 23 mm long |
| Sleeve | - |
| Optical axis diameter | ø0.8 mm |
| Fiber length | 1 m |
| Free-cut | - |
| Min. bending radius | R10 mm |
| Degree of protection | - |
| Ambient temperature |
-60 ... +200°C 0 ... 40°C (at 85 % RH) |
| Ambient humidity | 35 ... 85 % RH |
| Applicable regulations | RoHS directive (2011/65/EU) |
| Weight | |
| Included items | M4 Hex nut x 4, Toothed washer x 2 |
● The optical axis diameter is an approximate value.
Sensing Distance by Response Time
Unit: mm
| Fiber-Optic Sensor D4RF Series | Fiber-Optic Sensor D12R Series | ||
|---|---|---|---|
|
1,600 (8 ms) 1,055 (2 ms) 800 (1 ms) 680 (500 μs) 550 (250 μs) 345 (70 μs) 115 (16 μs/22 μs) |
|
1,130 (4 ms) 605 (1 ms) 450 (250 μs) 155 (50 μs) |

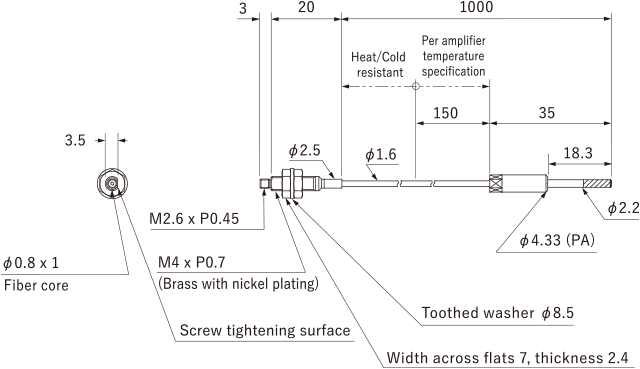

Dimensions
Unit: mm
Mounting Method
Usage notes
-
- In order to protect Fiber-Optic Sensor, keep the heat resistant fiber part at least 150 mm from the boundary of the ambient temperature as shown in the diagram below.
- Do not directly expose Fiber-Optic Sensor to radiation heat or hot air.
- The tip bracket of the heat resistant fiber (up to 350°C) and stainless steel sheath may change color when used at high temperatures, but this does not affect their detection capability.
