NF Series Heat resistant type

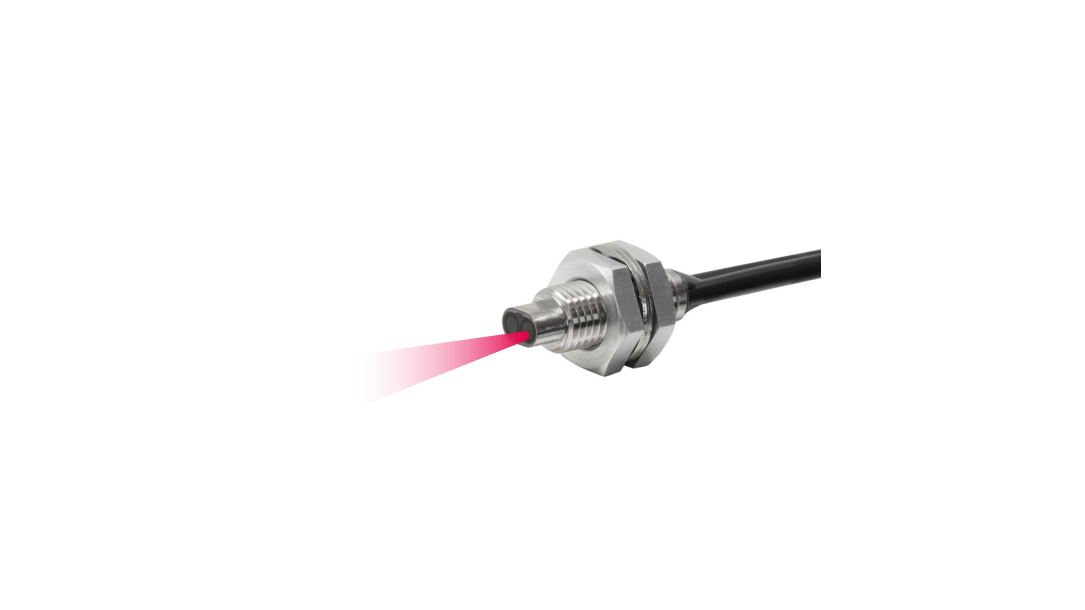

NF-DM6-H15

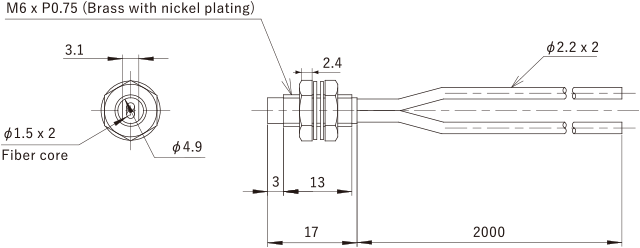

CAD & Drawings

Related Series

Browse and download catalogs and manuals on the product series page.

Specifications

Part No.	61773
Model	NF-DM6-H15
Category	Heat resistant type
Type	M6
Detection method	Diffuse-reflective type
Optical axis direction	Straight view
Shape of fiber head	M6 17 mm long
Sleeve	-
Optical axis diameter	-
Fiber length	2 m
Free-cut	Possible
Min. bending radius	R35 mm
Degree of protection	-
Ambient temperature	-40 ... +150°C -40 ... +130°C (Continuous use) 0 ... 40°C (at 85 % RH)
Ambient humidity	35 ... 85 % RH
Applicable regulations	-
Weight
Included items	Fiber cutter, M6 Hex nut x 2, Toothed washer x 2

Unit: mm

Fiber-Optic Sensor D4RF Series		Fiber-Optic Sensor D12R Series
	2,200 (8 ms) 1,600 (2 ms) 1,200 (1 ms) 1,000 (500 μs) 800 (250 μs) 600 (70 μs) 300 (16 μs/22 μs)		1,410 (4 ms) 885 (1 ms) 660 (250 μs) 260 (50 μs)

● The values on 500 x 500 mm white paper

Unit: mm

Type		Part No.	Model
Fiber cutter		20228	NFC-F01

Please refer to the Correct Use of all Fiber-Optic Cables.
