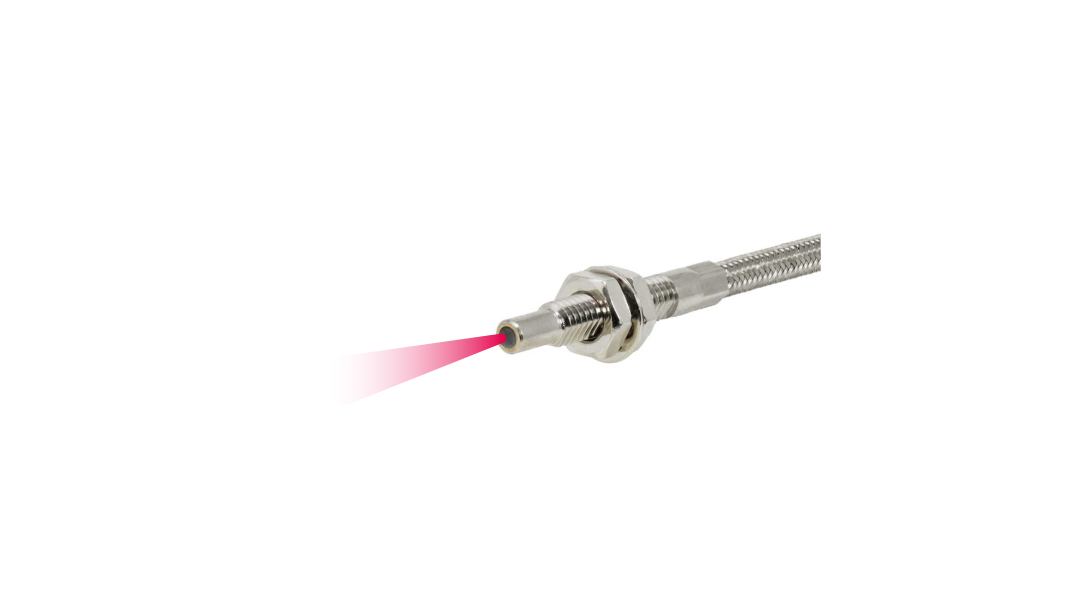

Specifications
| Part No. | 51647 |
|---|---|
| Model | NF-DH07 |
| Category | Heat resistant type |
| Type |
M4 Coaxial Metal sheath |
| Detection method | Diffuse-reflective type |
| Optical axis direction | Straight view |
| Shape of fiber head |
M4 27 mm long |
| Sleeve | - |
| Optical axis diameter | - |
| Fiber length | 1 m |
| Free-cut | - |
| Min. bending radius | R25 mm |
| Degree of protection | - |
| Ambient temperature |
-60 ... +200°C 0 ... 40°C (at 85 % RH) |
| Ambient humidity | 35 ... 85 % RH |
| Applicable regulations | RoHS directive (2011/65/EU) |
| Weight | Approx. 40 g |
| Included items | M4 Hex nut x 2, Washer x 1 |
Sensing Distance by Response Time
Unit: mm
| Fiber-Optic Sensor D4RF Series | Fiber-Optic Sensor D12R Series | ||
|---|---|---|---|
|
1,130 (8 ms) 775 (2 ms) 640 (1 ms) 580 (500 μs) 540 (250 μs) 425 (70 μs) 135 (16 μs/22 μs) |
|
1,040 (4 ms) 630 (1 ms) 530 (250 μs) 215 (50 μs) |
● The values on 500 x 500 mm white paper

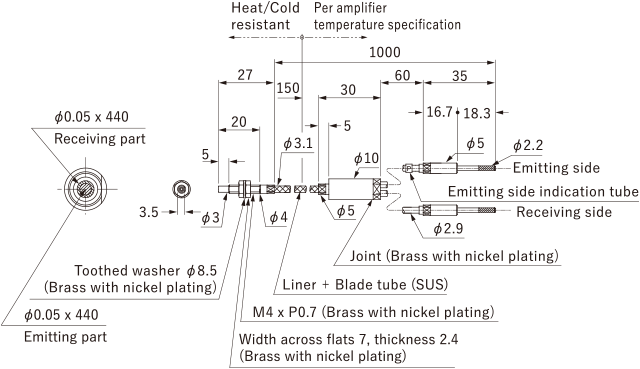

Dimensions
Unit: mm
Mounting Method
Usage notes
-
- In order to protect Fiber-Optic Sensor, keep the heat resistant fiber part at least 150 mm from the boundary of the ambient temperature as shown in the diagram below.
- Do not directly expose Fiber-Optic Sensor to radiation heat or hot air.
- The tip bracket of the heat resistant fiber (up to 350°C) and stainless steel sheath may change color when used at high temperatures, but this does not affect their detection capability.
Correct Use
