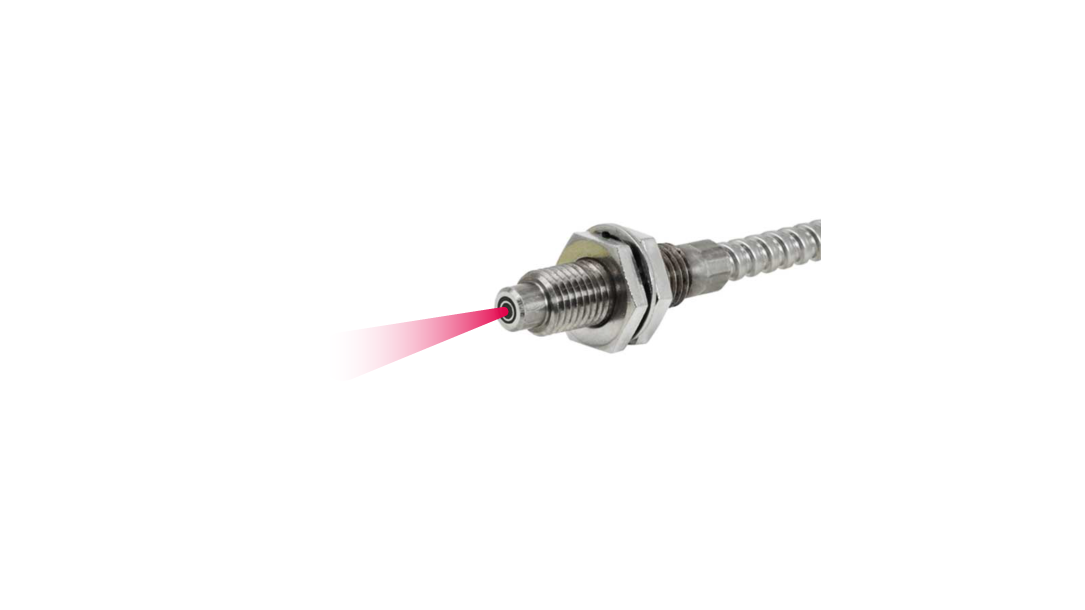

Specifications
| Part No. | 51643 |
|---|---|
| Model | NF-DH03 |
| Category | Heat resistant type |
| Type |
M6 Coaxial |
| Detection method | Diffuse-reflective type |
| Optical axis direction | Straight view |
| Shape of fiber head |
M6 25 mm long |
| Sleeve | - |
| Optical axis diameter | - |
| Fiber length | 2 m |
| Free-cut | - |
| Min. bending radius | R25 mm |
| Degree of protection | - |
| Ambient temperature |
-30 ... +350°C or -60 ... +200°C 0 ... 40°C (at 85 % RH) Please use the product within either of the specified ambient temperature. |
| Ambient humidity | 35 ... 85 % RH |
| Applicable regulations | RoHS directive (2011/65/EU) |
| Weight | Approx. 60 g |
| Included items | M6 Hex nut x 2, Washer x 1 |
Sensing Distance by Response Time
Unit: mm
| Fiber-Optic Sensor D4RF Series | Fiber-Optic Sensor D12R Series | ||
|---|---|---|---|
|
1,070 (8 ms) 745 (2 ms) 655 (1 ms) 580 (500 μs) 500 (250 μs) 300 (70 μs) 115 (16 μs/22 μs) |
|
950 (4 ms) 570 (1 ms) 410 (250 μs) 165 (50 μs) |
● The values on 500 x 500 mm white paper

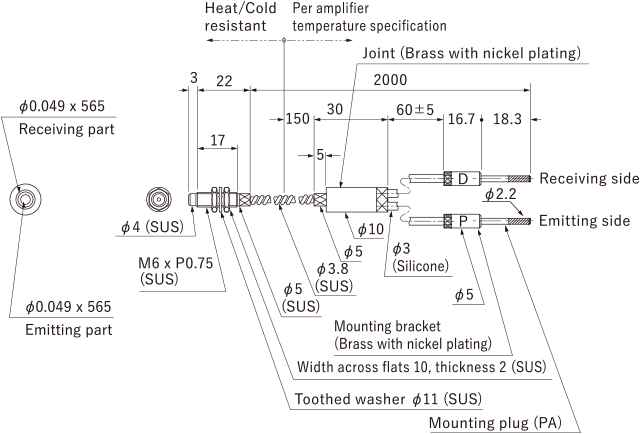

Dimensions
Unit: mm
Mounting Method
Usage notes
-
- In order to protect Fiber-Optic Sensor, keep the heat resistant fiber part at least 150 mm from the boundary of the ambient temperature as shown in the diagram below.
- Do not directly expose Fiber-Optic Sensor to radiation heat or hot air.
- The tip bracket of the heat resistant fiber (up to 350°C) and stainless steel sheath may change color when used at high temperatures, but this does not affect their detection capability.
