Specifications
| Part No. | 12233 |
|---|---|
| Model | NF-DH01 |
| Category | Heat resistant type |
| Type | M6 |
| Detection method | Diffuse-reflective type |
| Optical axis direction | Straight view |
| Shape of fiber head |
M6 19 mm long |
| Sleeve | - |
| Optical axis diameter | - |
| Fiber length | 2 m |
| Free-cut | Possible |
| Min. bending radius | R35 mm |
| Degree of protection | - |
| Ambient temperature |
-40 ... +180°C 0 ... 40°C (at 85 % RH) Light intensity retention rate of 85% or higher after 1,000 continuous use. |
| Ambient humidity | 35 ... 85 % RH |
| Applicable regulations | RoHS directive (2011/65/EU) |
| Weight | Approx. 30 g |
| Included items | Fiber cutte, M6 Hex nut x 2, Washer x 2 |
Sensing Distance by Response Time
Unit: mm
| Fiber-Optic Sensor D4RF Series | Fiber-Optic Sensor D12R Series | ||
|---|---|---|---|
|
1,460 (8 ms) 1,090 (2 ms) 865 (1 ms) 790 (500 μs) 675 (250 μs) 485 (70 μs) 175 (16 μs/22 μs) |
|
1,310 (4 ms) 825 (1 ms) 635 (250 μs) 240 (50 μs) |
● The values on 500 x 500 mm white paper

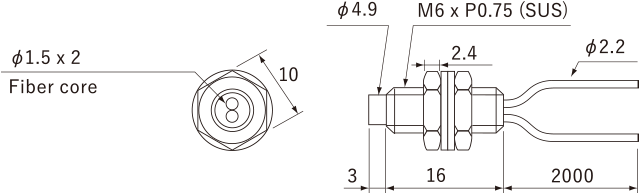

Dimensions
Unit: mm
Accessories
| Type | Part No. | Model | |
|---|---|---|---|
| Fiber cutter |  |
20228 | NFC-F01 |
Correct Use
