Specifications
| Part No. | 12214 |
|---|---|
| Model | NF-TR02 |
| Category | Flexible type |
| Type | M3 |
| Detection method | Through-beam type |
| Optical axis direction | Straight view |
| Shape of fiber head |
M3 10 mm long |
| Sleeve | - |
| Optical axis diameter | ø0.5 mm |
| Fiber length | 2 m |
| Free-cut | Possible |
| Min. bending radius | R5 mm |
| Degree of protection | - |
| Ambient temperature |
-40 ... +70°C 0 ... 40°C (at 85 % RH) |
| Ambient humidity | 35 ... 85 % RH |
| Applicable regulations | RoHS directive (2011/65/EU) |
| Weight | |
| Included items | Fiber cutter, ø1.0 mm Fiber adapter x 2, M4 hex nut x 4, M4 Washer x 4 |
Sensing Distance by Response Time
Unit: mm
| Fiber-Optic Sensor D4RF Series | Fiber-Optic Sensor D12R Series | ||
|---|---|---|---|
|
1,310 (8 ms) 865 (2 ms) 595 (1 ms) 525 (500 μs) 420 (250 μs) 265 (70 μs) 85 (16 μs/22 μs) |
|
970 (4 ms) 530 (1 ms) 385 (250 μs) 135 (50 μs) |

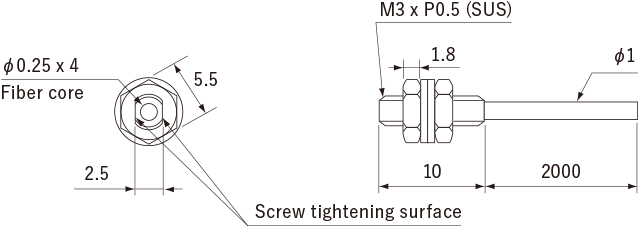

Dimensions
Unit: mm
Accessories
| Type | Part No. | Model | |
|---|---|---|---|
| Fiber cutter |  |
20228 | NFC-F01 |
| Fiber adapter ø1.0 mm |
 |
20188 | BF-WLL160-1.0 |
