Specifications
| Part No. | 51702 |
|---|---|
| Model | NF-TR08 |
| Category | Flexible type (R1 mm, R2 mm) |
| Type |
M4 Nut type |
| Detection method | Through-beam type |
| Optical axis direction | Side view |
| Shape of fiber head |
M4 W7 x H9 x D13.9 mm |
| Sleeve | - |
| Optical axis diameter | ø1.0mm |
| Fiber length | 2 m |
| Free-cut | Possible |
| Min. bending radius | R1 mm |
| Degree of protection | - |
| Ambient temperature |
-40 ... +60°C 0 ... 40°C (at 85 % RH) |
| Ambient humidity | 35 ... 85 % RH |
| Applicable regulations | RoHS directive (2011/65/EU) |
| Weight | Approx. 20 g |
| Included items | Fiber cutter, M4 Hex nut x 2, Toothed washer x 2 |
● The optical axis diameter is an approximate value.
Sensing Distance by Response Time
Unit: mm
| Fiber-Optic Sensor D4RF Series | Fiber-Optic Sensor D12R Series | ||
|---|---|---|---|
|
3,600 (8 ms) 2,800 (2 ms) 1,980 (1 ms) 1,800 (500 μs) 1,465 (250 μs) 925 (70 μs) 320 (16 μs/22 μs) |
|
- - - - |

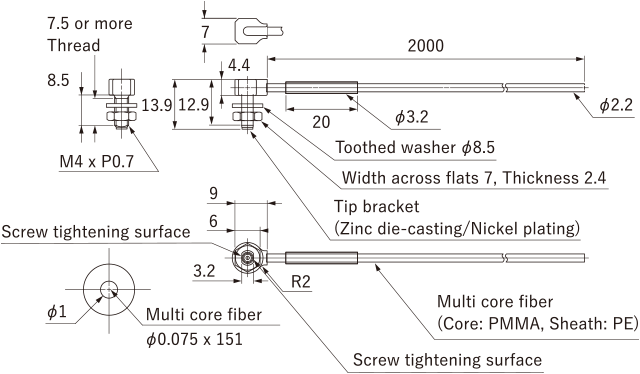

Dimensions
Unit: mm
Accessories
| Type | Part No. | Model | |
|---|---|---|---|
| Fiber cutter |  |
20228 | NFC-F01 |
Correct Use
